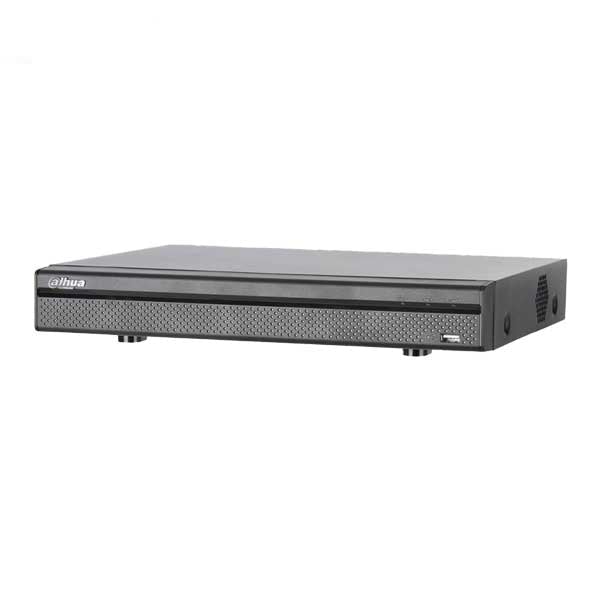

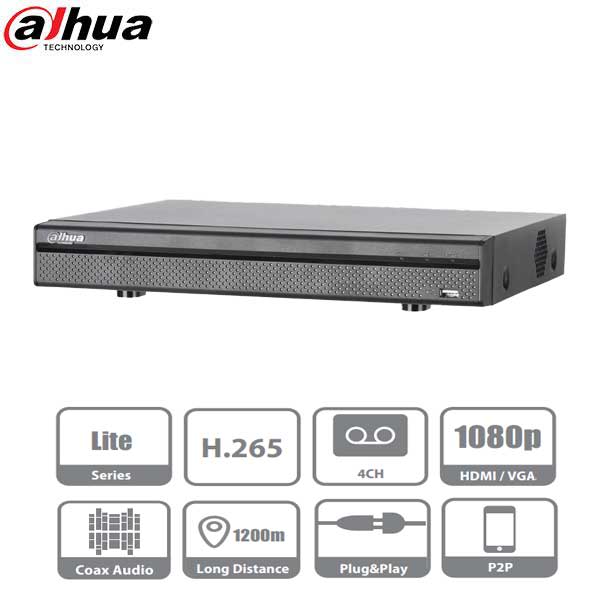

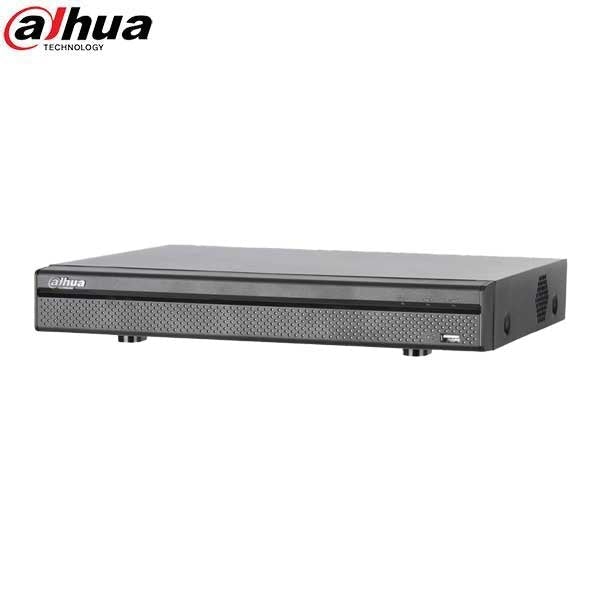

*Discontinued* Dahua / HDCVI DVR / 4 Channels / 5MP / Mini 1U / Penta-brid / 1080p / No HDD / DH-X51B1E
Out of Stock
SKU:
DH-X51B1E
NSID:
- $88.79
-
- $88.79
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
DH-X51B1E
The X51B1E HDCVI DVR offers 1080p recording on each HDCVI channel and a host of advanced features and functions. The X51B1E takes advantage of HDCVI technology for easy integration into existing video surveillance systems while leveraging existing networks, cabling, and cameras. Penta-brid access technology seamlessly records video from HDCVI, AHD, TVI, CVBS, and IP sources simultaneously. The X51B1E utilizes the Smart H.265+ Codec to significantly improve encoding efficiency and to reduce bandwidth and storage costs. This recorder is the ideal solution for actively monitoring and recording video feeds in a wide range of applications including public venues, retail stores, transportation hubs and access ways, personal property and homes, and educational institutions.
Features
- Embedded Processor
- Smart H.265+ and Smart H.264+ Dual Codec
- Dual-stream Recording
- 5 M-N (1296 x 1944) at 20 fps Maximum Recording Resolution
- Four (4) HDCVI, AHD, TVI, CVBS Channels
- 4 + 2 IP Channels, up to 6 MP per Channel
- Maximum 24 Mbps Incoming Bandwidth
- Built-in Smart Search
- Intelligent Video System
- No Hard Disk Drive Port Included
- Become a registered dealer of Dahua
- Call 1-800-878-6604 for Dealer Prices!
- $88.79
-
- $88.79
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xSpecification
| System | |
| Main Processor | Embedded Processor |
| Operating System | Embedded LINUX |
| Interface | |
| Analog Camera Input | Four (4) Channels, BNC |
| Preview Ability¹ | Channels 1 and 2: 5 M-N at 20 fps or 4 M-N, 1080p, 720p at 30 fps Other Channels: 4 M-N, 1080p, 720p at 30 fps |
| HDCVI | 5 MP, 4 MP, 1080p, 720p |
| AHD | 5 MP, 4 MP, 1080p, 720p |
| TVI | 5 MP, 4 MP, 1080p, 720p |
| CVBS | NTSC |
| IP Camera Input | 4 + 2 (The recording rate is dependent on the maximum resolution and frame rate of the connected IP camera.) |
| Audio - Input | Four (4) Channels, RCA |
| Audio - Output | One (1) Channel, RCA |
| Audio - Two-way Talk | Reuse Audio In/Out, RCA |
| Recording | |
| Compression | Smart H.265+, H.265, Smart H.264+, H.264 |
| Recording Resolution |
5 M-N (1296 x 1944), 4 M-N (1280 x 1440), 1080p, 1080N, 720p, 960H, D1, CIF |
| Record Rate - Main Stream | Channel 1: 5 M-N or 4 M-N at 20 fps Channels 2 to 4 1080p at 15 fps 1080N, 720p, 960H, D1, CIF at 30 fps |
| Record Rate - Sub Stream | D1 or CIF at 30 fps |
| Maximum Incoming Bandwidth | 24 Mbps |
| Bit Rate | 32 Kbps to 6144 Kbps per Channel |
| Record Mode | Manual, Schedule (General, Continuous), MD (Video Detection: Motion Detection, Video Loss, Tampering), Alarm, Intel, Stop |
| Record Interval | 1 to 60 minutes (default: 60 minutes), Pre-record: 1 s to 30 s, Post-record: 10 s to 300 s |
| Audio Compression | G.711A, G.711U, PCM |
| Audio Sample Rate | 8 KHz, 16 bits per Channel |
| Audio Bit Rate | 64 Kbps per Channel |
| Display | |
| Interface | One (1) HDMI (3840 x 2160) One (1) VGA (1920 x 1080) |
| Native Output Resolution | 1920 x 1080, 1280 x 1024, 1280 x 720 |
| Maximum Decoding | 4 Channels of 5 M-N at 10 fps 4 Channels of 1080p at 7 fps 4 Channels of 720p at 15 fps 4 Channels of 960H at 30 fps |
| Multi-screen Display - IP extension mode disabled | 1/4 |
| Multi-screen Display - IP extension mode enabled | 1/4/6 |
| On-screen Display | Camera Title, Time, Video Loss, Camera Lock, Motion Detection, Recording |
| Network | |
| Interface | One (1) RJ45 (100 Mbps) Port |
| Network Function | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P, IP Search (Supports Dahua IP cameras, DVRs, NVS) |
| Maximum User Access | 128 Users |
| Mobile Operating System | IOS, Android |
| Interoperability | ONVIF 16.12, CGI Conformant |
| Video Detection and Alarm | |
| Alarms - Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
| Alarms - Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis |
| Alarms - Input | Eight (8) Channels |
| Alarms - Output | Three (3) Channels |
| Playback and Backup | |
| Playback | 1/4 |
| Search Mode | Time/Date, Alarm, MD, Intel, and Exact Search (accurate to 1 second) |
| Playback Function | Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, and Digital Zoom |
| Backup Mode | USB Device/Network |
| Storage | |
| Internal HDD | No HDD Included |
| Auxiliary Interface | |
| USB | Two (2) USB 2.0 Ports |
| RS485 | One (1) Port for PTZ Control |
| Electrical | |
| Power Supply | 12 VDC, 1.5 A |
| Power Consumption | < 10 W, without HDD |
| Construction | |
| Dimensions - HDCVI DVR | Mini 1U, 325.0 mm x 255.0 mm x 55.0 mm (12.80 in. x 10.04 in. x 2.17 in.) |
| Dimensions - with PFH101 Rack Mount Tray |
482.6 mm x 287.15 mm x 53.0 mm (19.0 in. x 11.31 in. x 2.09 in.) |
| Installation | Desktop or Rack-mount |
| Certifications |
UL, EN, FCC, CAN/CSA, CFR |
| Warranty | 5 Year |
