Specification
| System | |
| Main Processor | Embedded Processor |
| Operating System | Embedded LINUX |
| Analytics+ Perimeter Protection¹ | |
| Performance | • Human and Vehicle object classification • Decreased false alarms from leaves, lights, animals • Configure function on two (2) channels, or configure function on one (1) channel to use seven (7) channels for SMD • 10 Tripwire/Intrusion rules per channel |
| Live View |
• Configure Rule and Object Inspection area • Display object classification, event types, trigger time, image snapshot, and object types • Export event playback 10 seconds prior to or after event |
| Playback | • Search by channel, time, event type, and target type • Search event playback 10 seconds prior to or after event • Snapshot capacity: 500,000 |
| Analytics+ Smart Motion Detection¹ | |
| Performance | • Detect motion based on object classification (human or vehicle) • Decreased false alarms from leaves, lights, animals • Configure functions on 8 channels, or configure functions on seven (7) channels to use one (1) channel of Perimeter Protection |
| Preview | • Configure and inspect detection area |
| Playback | • Search by channel, time, event type, and target type • Search event playback 10 seconds prior to or after event |

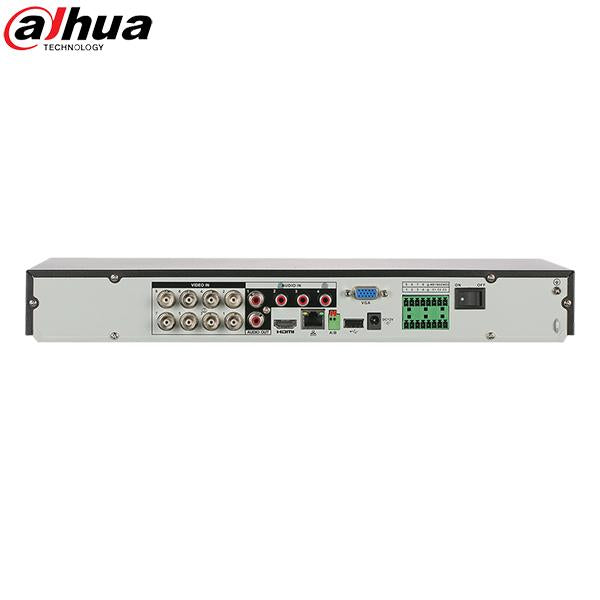

| Interface | |
| Analog Camera Input | Eight (8) Channels, BNC |
| HDCVI | 8 MP, 6 MP, 5 MP, 4 MP, 1080p, 720p |
| AHD | 8 MP, 5 MP, 4 MP, 3 MP, 1080p, 720p |
| TVI | 8 MP, 5 MP, 4 MP, 3 MP, 1080p, 720p |
| CVBS | NTSC |
| IP Camera Input | 8+8 Channels, each channel up to 8 MP |
| Audio | Input: Four (4) Channels, RCA Output: One (1) Channel, RCA |
| Two-way Talk | Audio Input Channel 1 In/ Audio Output, RCA |
| Recording | |
| Compression | AI Coding, Smart H.265+, H.265, Smart H.264+, H.264 |
| Recording Resolution | 8 MP, 6 MP, 5 MP, 4K-N, 4 MP, 3 MP, 4M-N, 1080p, 720p, 960H, D1, CIF |
| Record Rate - Main Stream | 8 MP at 7 fps 6 MP at 10 fps 5 MP at 12 fps 4K-N, 4 MP, 3 MP at 15 fps 4M-N, 1080p, 720p, 960H, D1, CIF at 30 fps |
| Record Rate - Sub Stream | 960H at 15 fps; D1, CIF at 30 fps |
| Max. Incoming Bandwidth | 128 Mbps |
| Bit Rate | 32 Kbps to 6144 Kbps per Channel |
| Record Mode | Manual, Schedule (Regular, Continuous), MD (Video Detection: Motion Detection, Video Loss, Tampering), Alarm, Stop |
| Record Interval | 1 to 60 minutes (default: 60 minutes), Pre-record: 1 s to 30 s, Post-record: 10 s to 300 s |
| Audio Compression | G.711a, G.711u, PCM |
| Audio Sample Rate | 8 KHz, 16 bits per Channel |
| Audio Bit Rate | 64 Kbps per Channel |
| Display | |
| Interface | One (1) HDMI (3840 x 2160) One (1) VGA (1920 x 1080) |
| Spot Output | HDMI: 1920 x 1080,1280 x 1024, 1280 x 720 VGA: 1920 x 1080,1280 x 1024, 1280 x 720 |
| Native Output Resolution | |
| HDMI | 3840 x 2160, 2560 x 1440, 1920 x 1080, 1280 x 1024, 1280 x 720 |
| VGA | 1920 x 1080, 1280 x 1024, 1280 x 720 |
| Maximum Playback Decoding | Eight (8) Channels of 4 MP/3 MP at 15 fps Eight (8) Channels of 4 M-N, 1080p, 720p, 960H at 30 fps Four (4) Channels of 4K at 7 fps Four (4) Channels of 6 MP at 10 fps Four (4) Channels of 5 MP at 12 fps Four (4) Channels of 4 M-N, 1080p, 720p, 960H at 30 fps |
| Multi-screen Display | IP extension mode disabled: 1/4/8/9 IP extension mode enabled: 1/4/8/9/16 |
| Fisheye Dewarp | Supported via Web Interface |
| On-screen Display | Camera Title, Time, Video Loss, Camera Lock, Motion Detection, Recording |
| Network | |
| Interface | One (1) RJ-45 (1000 Mbps) Port |
| Network Function | HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P, IP Search (Supports Dahua IP cameras, DVRs, NVS) |
| Maximum User Access | 128 Users |
| Mobile Operating System | IOS, Android |
| Interoperability | ONVIF 16.12, CGI Conformant |
| Video Detection and Alarm | |
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering, and Diagnosis |
| Alarm Input | Eight (8) Channels |
| Relay Output | Three (3) Channels |
| Playback and Backup | |
| Playback | 1/4/9 |
| Search Mode | Time/Date, Alarm, MD and Exact Search (accurate to 1 second) |
| Playback Function | Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, and Digital Zoom |
| Backup Mode | USB Device/Network |
| Storage | |
| Internal HDD | Two (2) SATA Ports, 2 TB capacity for each disk |
| Auxiliary Interface | |
| USB | One (1) USB 2.0 Port and One (1) USB 3.0 Port |
| RS485 | One (1) Port for PTZ Control |
| Electrical | |
| Power Supply | 12 VDC, 4 A |
| Power Consumption | < 10 W, without HDD |
| Construction | |
| Dimensions -HDCVI DVR | 1U, 375.0mm x 287.15mm x 53.0mm (14.80in. x 11.31in. x 2.09in.) |
| Dimensions- with PFH101 Rack Mount Tray |
482.6mm x 287.15mm x 53.0mm (19.0in. x 11.31in. x 2.09in.) |
| Installation | Desktop or Rack-mount |
| Video Transmission Distance | |
| RG-59/U Coax | 720p: 800m (2624.67ft) 1080p: 500m (1640.42ft) 4K/4MP: 500m (1640.42ft) |
| RG-6/U Coax | 720p: 1200m (3937.01ft) 1080p: 800m (2624.67ft) 4K/4MP: 700m (2296.59ft) |
| CAT 6 UTP (balun required) |
720p: 450m (1476.38ft) 1080p: 300m (984.25ft) 4K/4MP: 300m (984.25ft) |
| Certifications | UL, EN, IEC, FCC CFR |
| Warranty | 5 Years |
