*Discontinued* Dahua / Integrated Mount Tester / DH-PFM900-E
Out of Stock
SKU:
DH-PFM900-E
NSID:
27925
- $923.38
-
- $923.38
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

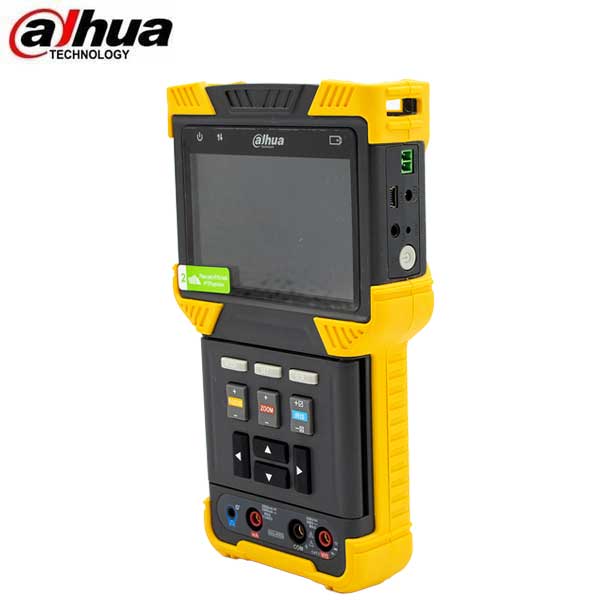

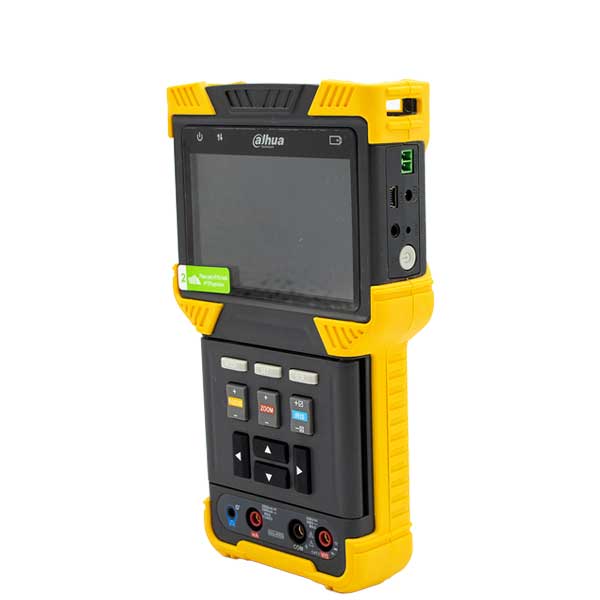

DH-PFM900-E
- Integrated Mount Tester
- Ergonomic, Portable Design with One-handed Operation
- 4-in. IPS TFT Screen, 800 x 480 Resolution
- H.265 and H.264 Dual Codecs

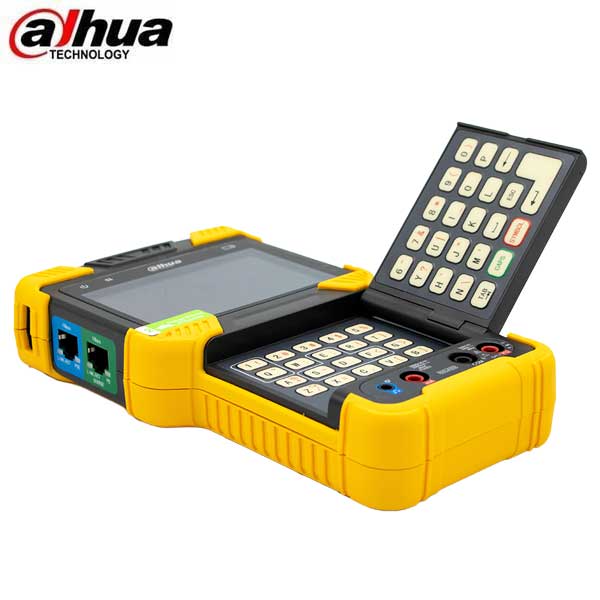

- QWERTY Flip-open Keyboard with 45 Keys
- Supports IP, HDCVI, AHD, TVI, and CVBS Formats
- Audio I/O and RS485 Control
- TDR Network Cable Tests and Digital Multimeter Functions
- PoE Charging and 12 VDC, 2 A Power Output
- 7.4 W / 22 Wh Polymer Lithium-Ion Battery, up to 8 Hours Normal
Operation - Dual LED Flashlight
- Two-year Warranty (for products sold through an authorized Dahua Dealer)
- Become a registered dealer of Dahua
- Call 1-800-878-6604 for Dealer Prices!
- $923.38
-
- $923.38
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
x
Specifications
| System |
|
| Operating System | Linux |
| Language | Multi-language interface: Chinese, Czech, English, French, German, Hebrew, Japanese, Persian, Polish, Portuguese, Romanian, Russian, Serbian, Spanish, Turkish |
| Operation Mode | Buttons and Keyboard |
| Keyboard | Main Keyboard: 13 Keys Flip Keyboard: 45 Keys Others: Power button, reset button |
| LED Flashlight | Two (2) 35 lm LED Lights |
| Screen | 4.0-in. TFT, 800 x 480 Resolution |
| Update | Online and Local Update |
| Physical Ports | |
| Network Ports | Two (2) 10/100/1000 Mbps RJ45 |
| Power | One (1) Standard PoE Charging Port (IEEE802.3af) One (1) 12 VDC, 2 A Output |
| BNC Port | One (1) Video In (HDCVI, TVI, AHD, CVBS) One (1) Video Out |
| Audio | Input: One (1), 3.5 mm Output: One (1), 3.5 mm |
| Power | Output: One (1) 12 VDC, 1 A |
| USB | One (1) Mini USB-B Connector |
| RS485 | One (1) RS485 Output |
| Digital Multimeter | Three (3) Ports |
| IP Camera Tests | |
| IP Camera Type | ONVIF |
| Resolution | 1 MP, 1.3 MP, 2 MP, 3 MP, 4 MP, 5 MP, 6 MP, 8 MP, and 12 MP |
| Video Display | Live View, Snapshots, Record, Digital Zoom, H.264/H.265 Decoding, |
| Function Control | IP Camera modifications including IP Address, Account Password, and Restore Factory Settings |
| Analog Video Test | |
| Format |
HDCVI, HDTVI, AHD, and CVBS (NTSC, PAL) |
| HDCVI Resolution | 2 MP at 30 fps, 4 MP at 30 fps 5 MP at 20 fps, 6 MP at 20 fps 8 MP at 15 fps |
| HDTVI Resolution | 2 MP at 30 fps, 4 MP at 30 fps 5 MP at 20 fps |
| AHD Resolution | 2 MP at 30 fps, 4 MP at 30 fps |
| CVBS Resolution | NTSC, PAL |
| Function Control | OSD Menu Display and PTZ Control |
| Video Display | Live View, Snapshots, Record, and Digital Zoom |
| Video Signal Generator | Generate PAL and NTSC video test signals Generate HDCVI, HDTVI, and AHD video test signals at 720/1080P |
| RS-485 Control | |
| Protocol | Compatible with over 30 protocols, including Pelco D/P, Samsung, and Panasonic |
| Baud Rate | 150 bps, 300 bps, 600 bps, 1200 bps, 2400 bps, 4800 bps, 9600 bps, 19200 bps |
| Cable Tester | |
| Network Cable | TDR Method Measurement Resolution: 0.1 m Accuracy: ≤ 1 m |
| Tests | |
| Network Tool | IP Address Scan, Ping Test |
| Network Cable Test | Test the length and attenuation of network cables Test range: 1.0 m to 130.0 m (3.28 ft to 426.51 ft) (The maximum length varies based on cable material) |
| Voltage Test | Display Voltage, Data Transmission, and Signal Strength of a PoE/PSE Device |
| Digital Multimeter (DMM) | AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Diode, Circuit Conductivity |
| Data Monitor | Capture and analyze command data from controlling device via RS485 Port |
| Audio | One (1) Channel Audio Input One (1) Channel Audio Output |
| USB Storage | Test USB Storage Devices (via Mini USB Port) |
| Power | |
| Charger | PoE Power Injector 48 V, 15 W |
| Battery | Dedicated and Replaceable 7.4 V Polymer Lithium-Ion Battery, 22 Wh |
| Working Time | 8 Hours |
| Power Out | 12 VDC, 2 A, maximum |
| Certifications | |
| Safety | EN 60950-1:2006+A11:2009+A1:2010+A12: 2011+A2:2014 |
| Electromagnet Compatibility (EMC) |
EN 55032:2015 EN 55024:2010+A1:2015 EN 61000-3-2:2014 EN 61000-3-3:2013 |
| RoHS | EN 62321-1:2013 |
| Environmental | |
| Working Temperature | –10° C to +55° C (14° F to 131° F), 30% to 95% RH |
| Casing | Yellow Plastic |
| Dimensions | 193.0 mm x 115.0 mm x 37.10 mm (7.60 in. x 4.53 in. x 1.46 in.) |
