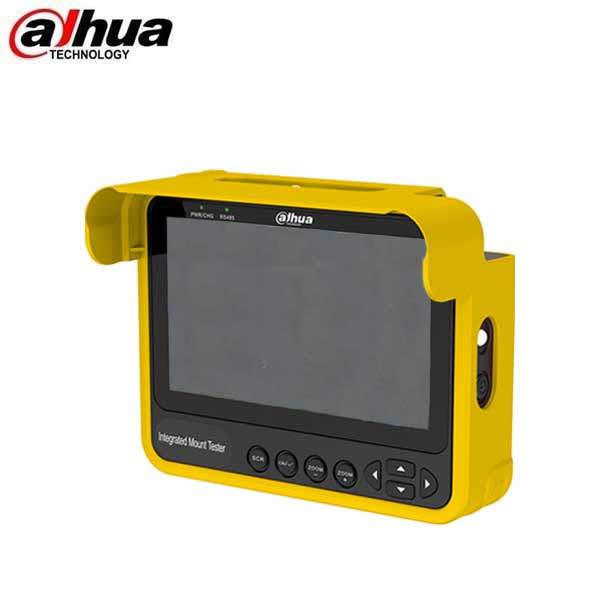

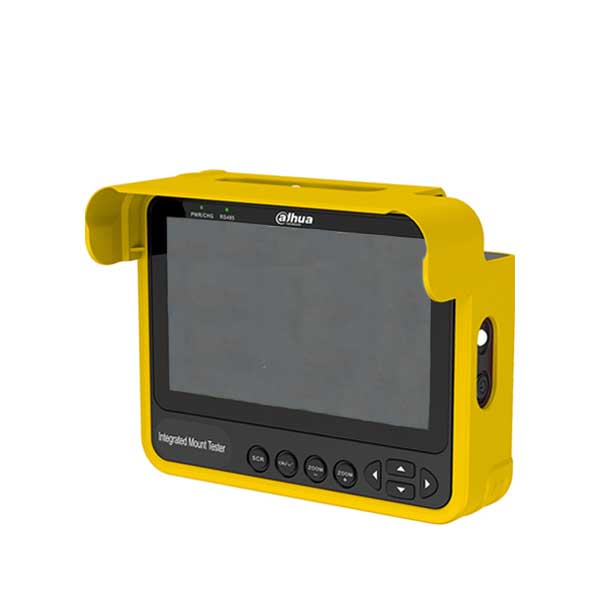

*Discontinued* Dahua / Integrated Mount Tester / DH-PFM904
Out of Stock
SKU:
DH-PFM904
NSID:
27953
- $235.78
-
- $235.78
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
DH-PFM904
- Ergonomic, Portable Design
- One-hand Operation with Removable Wrist Strap
- 4.3-in. TFT Screen, 480 x 272 Resolution
- Supports HDCVI, AHD, TVI, and CVBS Formats
- Audio and RS485 Test Control
- 12 VDC, 1 A Power Output
- Micro USB-B Port for Charging and Data I/O
- Two (2) 18650 Lithium Ion Batteries, Replaceable up to 8 Hours Normal Operation
- Become a registered dealer of Dahua
- Call 1-800-878-6604 for Dealer Prices!
- $235.78
-
- $235.78
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xSpecifications
|
System |
|
| Operating System | Linux |
| Language | Multi-language interface |
| Operation Mode | Eight-key Keyboard with Power Button |
| Functions |
Auto Standby/Shutdown, Keyboard Sound, Local Update |
| Screen | 4.3-in. TFT, 480 x 272 Resolution |
| LED Indicator | 3 x 35 lm Lights |

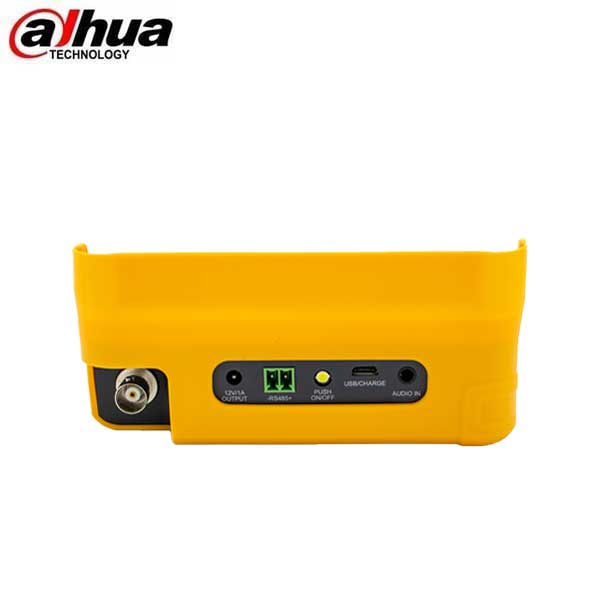

| Physical Ports | |
| Audio Input | One (1) Channel, 3.5 mm Jack |
| Power Supply, Output | 12 VDC, 1 A Power Output |
| USB | One (1) Micro-B, for charging tester and data I/O |
| RS485 Port | One (1) Port |
| RS485 Protocol | Over 30 Protocols, including Pelco-P/D, Samsung, Panasonic, Lilin, and Yaan |
| RS485 Baud Rate | 150 bps; 300 bps; 600 bps; 1200 bps; 2400 bps; 4800 bps; 9600 bps; 19200 bps |
| Analog Video Test | |
| Supported Formats | HDCVI, AHD, TVI, CVBS |
| Function Control | OSD Menu Display PTZ |
| Video Display | Live View |
| Power | |
| Charger | Input: Micro USB; 5 V, 1 A |
| Battery | Two (2) 18650 Lithium Ion Batteries, up to 14.8 Wh |
| Working Time | Eight (8) Hours |
| Power Output | 12 VDC, 1 A, maximum |
| Environmental | |
| Casing Color | Yellow |
| Dimensions | 120.0 mm x 100.0 mm x 65.0 mm (4.92 in. x 3.94 in. x 2.56 in.) |
| ESD Protection | |
| Air Discharge | ±8 KV |
| Contact Discharge | ±6 KV |
| Electromagnet Compatibility (EMC) | 47 CFR FCC Part 15 Subpart B EN 55032:2015 EN 55035:2017 EN 61000-3-2:2014 EN 61000-3-3:2013 |
| Manufacturer's Warranty | 5-Year Warranty |
