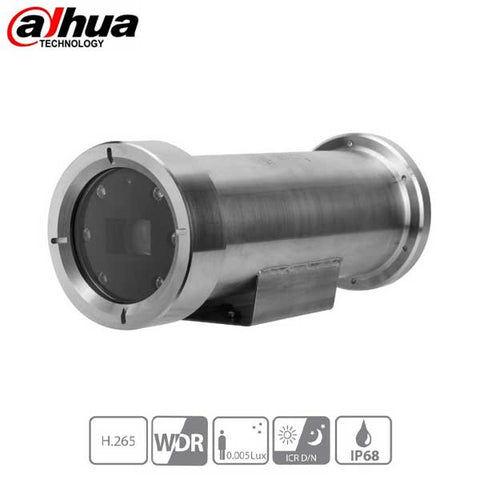

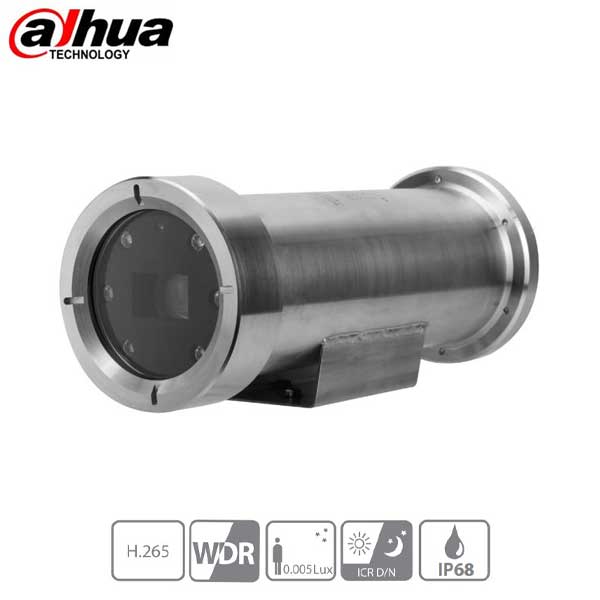

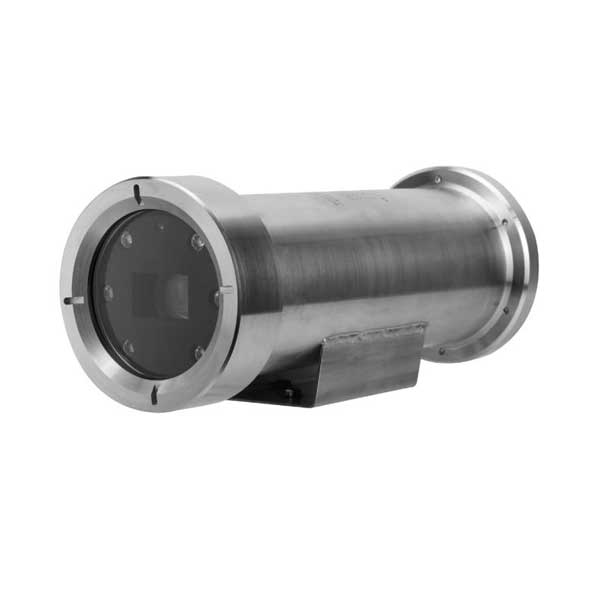

*Discontinued* Dahua / IP / 2MP / Bullet Camera / 4.5-135mm Lens / Outdoor / WDR / IP68 / DH-EPC230U
- $3,180.58
-
- $3,180.58
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
DH-EPC230U
Featuring powerful optical zoom, this camera provides an all-in-one solution for capturing long-distance video surveillance for outdoor applications. Together with infrared illumination and Starlight technology, the camera is the perfect solution for dark, lowlight applications. The series combines a day/night mechanical IR cut filter for the highest image quality in variable lighting conditions during the day and True WDR for applications with direct sunlight or glare.
- 1/2.8” 2Megapixel STARVIS™ CMOS
- Powerful 30x optical zoom
- 304 stainless steel housing
- Starlight technology
- H.265 Encoding
- Max. 50/60fps@1080P
- Support IVS
- IR distance up to 100m
- IP68, ATEX and IECEx Certification
- Become a registered dealer of Dahua
- Call 1-800-878-6604 for Dealer Prices!
- $3,180.58
-
- $3,180.58
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
x
Technical Specifications
| Camera | |
| Image Sensor | 1/2.8” STARVIS™ CMOS |
| Effective Pixels | 1920(H) x 1080(V), 2 Megapixels |
| RAM/ROM | 512M/128M |
| Scanning System | Progressive |
| Electronic Shutter Speed | 1 / 1s~1 / 30,000s |
| Minimum Illumination | Color: 0.005Lux@F1.6 B/W: 0.0005Lux@F1.6 0Lux@F1.6 (IR on) |
| S/N Ratio | More than 55dB |
| IR |
Distance: Distance up to 100m (328ft) On/Off Control: Auto/Manual LEDs: 6 |
| Lens | |
| Focal Length | 4.5mm~135mm |
| Max. Aperture | F1.6 ~ F4.4 |
| Angle of View | H: 67.8° ~ 2.4° |
| Optical Zoom | 30x |
| Focus Control | Auto/Manual |
| Close Focus Distance | 100mm~ 1000mm |
| DORI Distance | |
| Detect | 1862m (6109ft) |
| Observe | 744m (2441ft) |
| Recognize | 372m (1220ft) |
| Identify | 186m (610ft) |
| Intelligence | |
| Auto Tracking | N/A |
| IVS | Tripwire, Intrusion, Abandoned/Missing, Face Detection, Heat Map |
| Video | 35.0 m (114.83 ft) |
| Compression | H.265+ / H.265 / H.264+ / H.264 |
| Streaming Capability | 3 Streams |
| Resolution | 1080P (1920×1080) / 1.3M (1280×960) / 720P (1280× 720) / D1 (704×576 / 704×480) / CIF (352×288 / 352×240) |
| Frame Rate | Main stream: 1080P / 1.3M / 720P (1~50/60fps) Sub stream1: D1 / CIF (1 ~ 25/30fps) Sub stream2: 1080P / 1.3M / 720P / D1 / CIF (1~25/30fps) |
| Bit Rate Control | CBR / VBR |
| Bit Rate | H.265 / H.264: 448K ~ 8192Kbps |
| Day/Night | Auto(ICR) / Color / B/W |
| Backlight Compensation | BLC / HLC / WDR (120dB) |
| White Balance | Auto, ATW, Indoor, Outdoor, Manual |
| Gain Control | Auto / Manual |
| Noise Reduction | Ultra DNR (2D/3D) |
| Features | Motion Detection, Region of Interest, Electronic Image Stabilization (EIS), Defog |
| Digital Zoom | 16x |
| Flip |
180° |
| Privacy Masking | Up to 24 areas |
| Audio | |
| Compression | G.711a / G.711Mu / AAC / G.722 / G.726 / MPEG2-L2 |
| Network | |
| Ethernet | RJ-45 (10Base-T/100Base-TX) |
| Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x |
| Interoperability | ONVIF Profile S&G, API |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 20 users |
| Edge Storage | NAS (Network Attached Storage), Local PC for instant recording, Micro SD card 256GB |
| Web Viewer | IE, Chrome, Firefox, Safari |
| Management Software | Smart PSS, DSS, DMSS |
| Smart Phone | IOS, Android |
| Certifications | Off, On |
| Certifications | CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB,ANSI C63.4- 2014 ATEX: EN 60079-0/EN 60079-1/EN 60079-31 IECEx : IEC 60079-0/IEC 60079-1/IEC 60079-31 |
| Explosion-proof Marking | ATEX: II 2 G Ex db IIC T6 Gb, II 2 D Ex tb IIIC T80°C Db IECEx : Ex db IIC T6 Gb, Ex tb IIIC T80°C Db |
| Interface | |
| Video Interface | 1 port(BNC, 1.0V[p-p], 75Ω) |
| RS485 | 1 |
| Audio I/O | 1/1 |
| Alarm I/O |
2/1 |
| Electrical | |
| Power Supply | AC220V(AC100V ~ 240V), Hi-PoE |
| Power Consumption | 10W, 25W (IR on) |
| Environmental | |
| Operating Temperature | -40°C ~ 60°C (-40°F ~ +140°F) / Less than 95% RH |
| Ingress Protection | IP68 |
| Vandal Resistance | N/A |
| Construction | |
| Casing | 304 Stainless Steel |
| Dimensions | Φ396.1mm × 149.5mm × 143mm |
| Net Weight | 8.7kg (19.18lb) |
| Gross Weight | 10.4kg (22.93lb) |
1. The DORI distance is a measure of the general proximity for a specific classification to help pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specifications and lab test results according to EN 62676-4, the standard that defines the criteria for the Detect, Observe, Recognize and Identify classifications.
Downloads
Functions:
Starlight Technology
For challenging low-light applications, Dahua’s Starlight Ultra-low Light Technology offers best-in-class light sensitivity, capturing color details in low light down to 0.005 lux. The camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.
Wide Dynamic Range
The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, True WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.
Smart H.265+
Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ technology reduces bit rate and storage requirements by up to 70% when compared to standard H.265 video compression.
PFA Technology
PFA technology has innovatively introduced new methods of judgment to ensure the accuracy and predictability of the direction of subject distance adjustment. The result is a set of advanced focusing algorithms. PFA ensures clarity of the image throughout the process of zooming and shortens focus time. The realization of PFA technology substantially improves user experience and increases product value.
Environmental
Dahua cameras operate in extreme temperature environments, rated for use in temperatures from -40 °C to +60 °C (-40 °F to +140°F) with 95% humidity. Subjected to rigorous dust and water immersion tests and certified to the IP68 Ingress Protection rating makes it suitable for demanding outdoor applications.
Protection
The camera allows for ±25% input voltage tolerance, suitable for the most unstable conditions for outdoor applications. Its 6KV lightning rating provides effective protection for both the camera and its structure against lightning.
Interoperability
The camera conforms to the ONVIF (Open Network Video Interface Forum) specifications, ensuring interoperability between network video products regardless of manufacturer.
