*Discontinued* Dahua / IP / 2MP / PTZ Dome Camera / Motorized Varifocal / Starlight / 12x Zoom / 5.3-64mm Lens / WDR / IP66 / IK10 / DH-42212TNI
Out of Stock
SKU:
DH-42212TNI
NSID:
28138
- $557.98
-
- $557.98
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
DH-42212TNI

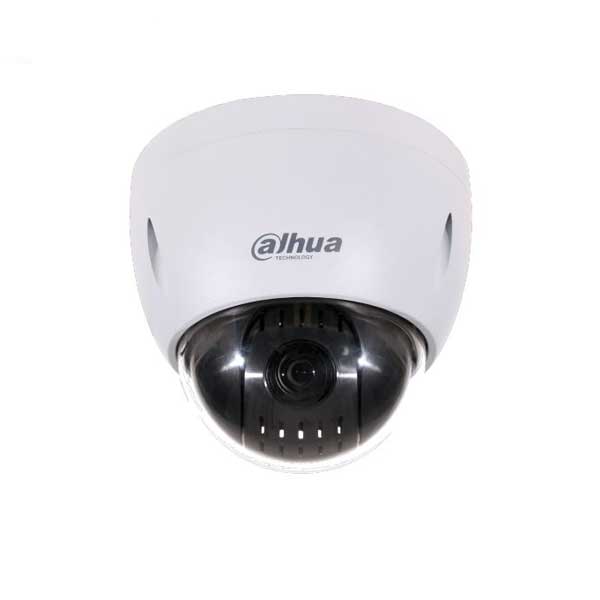

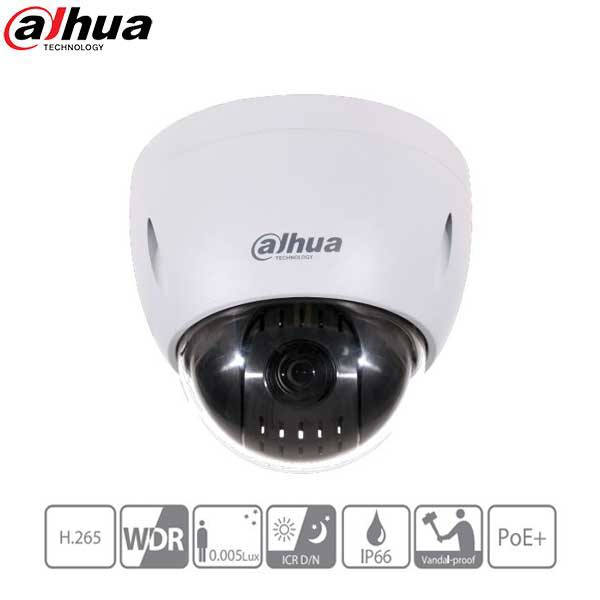

The 2 MP Starlight Mini PTZ Dome camera features a 1/2.8-in. STARVIS™ CMOS imager with a 12x optical zoom lens, and provides an all in one solution for capturing long-distance video surveillance for indoor and outdoor applications. The camera uses the H.265 video compression standard to improve encoding efficiency while preserving high-quality video. The PTZ camera is equipped with quick and accurate pan/tilt/zoom control and True WDR for applications with direct sunlight or glare.
Features
- 1/2.8-in. 2MP STARVIS™ CMOS Sensor
- Starlight Technology for Ultra-low Light Sensitivity
- Powerful 12x Optical Zoom
- Triple-stream Encoding
- H.265 and H.264 Dual Codec
- 1080p at 30 fps Maximum Resolution
- Intelligent Video System (IVS) Analytics
- IP66 Ingress Protection and IK10 Vandal Resistance
- PoE+ Support
- Become a registered dealer of Dahua
- Call 1-800-878-6604 for Dealer Prices!
- $557.98
-
- $557.98
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xSpecifications
| Camera | |
| Image Sensor | 1/2.8-in. STARVIS™ CMOS Sensor |
| Effective Pixels | 1920(H) x 1080(V), 2 MP |
| RAM/ROM | 1024 MB / 128 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | 1/1 s to 1/30,000 s |
| Minimum Illumination | Color: 0.005 lux at F1.6 B/W: 0.0005 lux at F1.6 |
| S/N Ratio | More than 50 dB |
| Lens | |
| Focal Length | 5.3 mm to 64 mm |
| Max. Aperture | F1.6 to F4.4 |
| Angle of View | Horizontal: 58.2° to 4.8° |
| Optical Zoom | 12x |
| Focus Control | Auto, Manual |
| Close Focus Distance | 100 mm to 1000 mm |
| DORI Distance | |
| Detect | 883 m (2897 ft) |
| Observe | 353 m (1158 ft) |
| Recognize | 177 m (581 ft) |
| Identify | 88 m (289 ft) |
| PTZ | |
| Pan/Tilt Range | Pan: 0° to 360° endless, Tilt: -2° to 90° Auto Flip 180° |
| Manual Control Speed | Pan: 0.1° to 200° /s Tilt: 0.1° to 120° /s |
| Preset Speed | Pan: 300° /s Tilt: 200° /s |
| Presets | 300 |
| PTZ Mode | 5 Pattern, 8 Tour, Auto Pan, Auto Scan |
| Power up Action | Auto restore to previous PTZ and lens status after power failure |
| Idle Motion | Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period |
| Protocol | DH-SD |
| Video | |
| Compression | H.265, H.264 |
| Streaming Capability | Three (3) Streams |
| Resolution | 1080p (1920 x 1080), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), CIF (352 x 240) |
| Frame Rate | Main Stream: 1080p, 720p, or D1 at 30 fps Sub Stream 1: D1 or CIF at 30 fps Sub Stream 2: 1080p, 720p, D1, or CIF at 30 fps |
| Bit Rate Control | CBR, VBR |
| Bit Rate | H.265/H.264: 448 K to 8192 Kbps MJPEG: 5120 K to 10240 Kbps |
| Day/Night | Auto (ICR), Color, B/W |
| Backlight Compensation | BLC, HLC, True WDR (120 dB) |
| White Balance | Auto, ATW, Indoor, Outdoor, Manual |
| Gain Control | Auto, Manual |
| Noise Reduction | Ultra DNR (2D/3D) |
| Advanced Features | Motion Detection, Region of Interest, Defog |
| Digital Zoom | 16x |
| Flip | 180° |
| Privacy Masking | Up to 24 areas |
| Audio | |
| Compression | G.711a, G.711u (32 kbps), PCM (128 kbps) |
| Network | |
| Ethernet | RJ-45 (10 Base-T/100 Base-TX) |
| Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x |
| Interoperability | ONVIF, PSIA, CGI |
| Streaming Method | Unicast / Multicast |
| Maximum User Access | 20 users |
| Edge Storage | NAS (Network Attached Storage) Local PC for instant recording Micro SD Card Slot, maximum 128 GB |
| Web Viewer | IE 10, Firefox, Safari |
| Management Software | Smart PSS, DSS |
| Mobile Operating System | IOS, Android |
| Cybersecurity | Video Encryption, Firmware Encryption, Configuration Encryption, Digest, WSSE, Account Lockout, Security Logs, IP/MAC Filtering, Generating and Importing X.509 Certification, Syslog, HTTPS, 802.1x, Trusted Boot, Trusted Execution, Trusted Upgrade |
| Interface | |
| Audio | Input: One (1) Channel Output: One (1) Channel |
| Alarm | Input: Two (2) Channels Output: One (1) Channel |
| Electrical | |
| Power Supply | Refer to the product label for power information |
| Power Consumption | Refer to the product label for power information |
| Construction | |
| Casing | Metal |
| Dimensions | 170.0 mm x 155.0 mm (6.69 in. x 6.10 in.) |
| Certifications | CE, UL, CAN/CSA, EN, FCC, ANSI, IP66, IK10 |
| Manufacturer's Warranty | 5 Years |
