*Discontinued* Dahua / IP / 2MP / Network PTZ Dome Camera / Starlight / 12x Zoom / 5.3-64mm Lens / WDR / IK10/ DH-42C212TNI
- $557.98
-
- $557.98
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
DH-42C212TNI

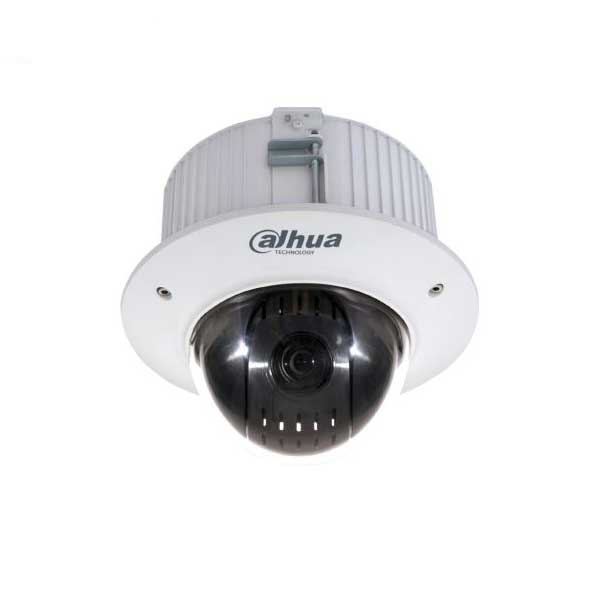

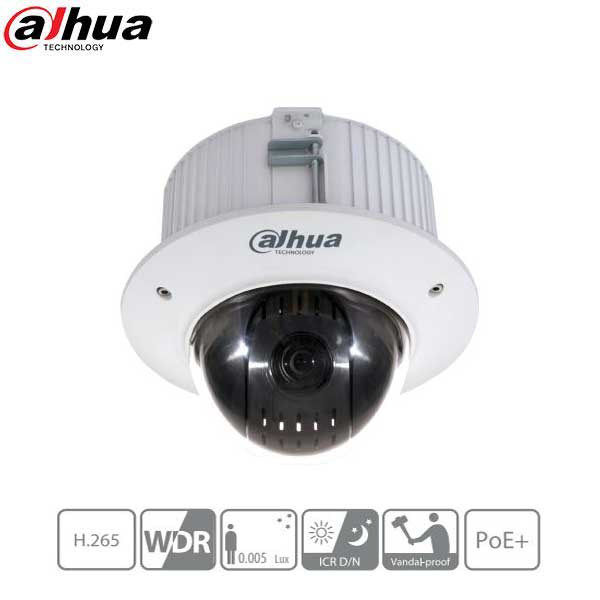

The 2 MP Starlight In-ceiling PTZ Dome camera features a 1/2.8-in. STARVIS™ CMOS imager with a 12x optical zoom lens, and provides an all in one solution for capturing long-distance video surveillance for indoor applications. The camera uses the H.265 video compression standard to improve encoding efficiency while preserving high-quality video. The PTZ camera is equipped with quick and accurate pan/tilt/zoom control and True WDR for applications with glare.
- 1/2.8-in. 2 MP STARVIS™ CMOS Sensor
- Starlight Technology for Ultra-low Light Sensitivity
- Powerful 12x Optical Zoom
- Triple-stream Encoding
- H.265 and H.264 Dual Codecs
- 1080p at 30 fps Maximum Resolution
- Intelligent Video System (IVS)
- IK10 Vandal Resistance
- PoE+ Support
- Become a registered dealer of Dahua
- Call 1-800-878-6604 for Dealer Prices!
- $557.98
-
- $557.98
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xTechnical Specifications
| Camera | |
| Image Sensor | 1/2.8-in. STARVIS™ CMOS Sensor |
| Effective Pixels | 1920(H) x 1080(V), 2 MP |
| RAM/ROM | 1024 MB / 128 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | 1/1 s to 1/30,000 s |
| Minimum Illumination | Color: 0.005 lux at F1.6 B/W: 0.0005 lux at F1.6 |
| S/N Ratio | More than 55 dB |
| Lens | |
| Focal Length | 5.3 mm to 64 mm |
| Max. Aperture | F1.6 to F4.4 |
| Angle of View | Horizontal: 58.2° to 4.8° |
| Optical Zoom | 12x |
| Focus Control | Auto, Manual |
| Close Focus Distance | 100 mm to 1000 mm |
| DORI Distance | |
| Detect | 883 m (2897 ft) |
| Observe | 353 m (1158 ft) |
| Recognize | 177 m (581 ft) |
| Identify | 88 m (289 ft) |
| PTZ | |
| Pan/Tilt Range | Pan: 0° to 360° endless, Tilt: –2° to 90° Auto Flip 180° |
| Manual Control Speed | Pan: 0.1° to 300° /s Tilt: 0.1° to 120° /s |
| Preset Speed | Pan: 300° /s Tilt: 200° /s |
| Presets | 300 |
| PTZ Mode | 5 Pattern, 8 Tour, Auto Pan, Auto Scan |
| Speed Compensation | Proportional Pan/Tilt Speed to Zoom Ratio |
| Power up Action | Auto restore to previous PTZ and lens status after power failure |
| Idle Motion | Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period |
| Protocol | DH-SD |
| Video | |
| Compression | H.265, H.264 |
| Streaming Capability | Three (3) Streams |
| Resolution | 1080p (1920 x 1080), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), CIF (352 x 240) |
| Frame Rate | Main Stream: 1080p, 720p, or D1 at 30 fps Sub Stream 1: D1 or CIF at 30 fps Sub Stream 2: 1080p, 720p, D1, or CIF at 30 fps |
| Bit Rate Control | CBR, VBR |
| Bit Rate | H.265/H.264: 448 K to 8192 Kbps MJPEG: 5120 K to 10240 Kbps |
| Day/Night | Auto (ICR), Color, B/W |
| Backlight Compensation | BLC, HLC, True WDR (120 dB) |
| White Balance | Auto, ATW, Indoor, Outdoor, Manual |
| Gain Control | Auto, Manual |
| Noise Reduction | Ultra DNR (2D/3D) |
| Advanced Features | Motion Detection, Region of Interest, Defog |
| Digital Zoom | 16x |
| Flip | 180° |
| Privacy Masking | Up to 24 areas |
| Audio | |
| Compression | G.711a, G.711u (32 kbps), PCM (128 kbps) |
| Network | |
| Ethernet | RJ-45 (10 Base-T/100 Base-TX) |
| Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x |
| Interoperability | ONVIF, PSIA, CGI |
| Streaming Method | Unicast / Multicast |
| Maximum User Access | 20 users |
| Edge Storage | NAS (Network Attached Storage) Local PC for instant recording Micro SD Card Slot, maximum 128 GB |
| Web Viewer | IE 10, Firefox, Safari |
| Management Software | Smart PSS, DSS |
| Mobile Operating System | IOS, Android |
| Cybersecurity | Video Encryption, Firmware Encryption, Configuration Encryption, Digest, WSSE, Account Lockout, Security Logs, IP/MAC Filtering, Generating and Importing X.509 Certification, Syslog, HTTPS, 802.1x, Trusted Boot, Trusted Execution, Trusted Upgrade |
| Interface | |
| Audio | Input: One (1) Channel Output: One (1) Channel |
| Alarm | Input: Two (2) Channels Output: One (1) Channel |
| Electrical | |
| Power Supply | Refer to the product label for power information |
| Power Consumption | Refer to the product label for power information |
| Construction | |
| Casing | Metal |
| Dimensions | 198.0 mm x 158.0 mm (7.80 in. x 6.22 in.) |
| Certifications | UL, EN, CFR FCC, ANSI, IK10 |
| Manufacturer's Warranty | 5 Years |
Downloads
Functions:
Starlight Technology
For challenging low-light applications, Dahua’s Starlight Ultra-low Light Technology offers light sensitivity that captures details in low light down to 0.005 lux. The camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.
Intelligent Video System
IVS is a built-in video analytic algorithm that delivers intelligent functions to monitor a scene for Tripwire violations, intrusion detection, and abandoned or missing objects. A camera with IVS quickly and accurately responds to monitoring events in a specific area. In addition to scene analytics, the camera offers tamper detection by recognizing a dramatic scene change and generating a warning message to inspect the camera.
Wide Dynamic Range
The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, True WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.
High Efficiency Video Coding (H.265)
The H.265 (ITU-T VCEG) video compression standard offers double the data compression ratio at the same level of video quality, or substantially improved video quality at the same bit rate, as compared to older video compression technologies. H.265 offers such impressive compression by expanding the pattern comparison and difference-coding, improving motion vector prediction and motion region merging, and incorporating an additional filtering step called sample-adaptive offset filtering.
Environmental
With a temperature range of –30 °C to +60 °C (–22 °F to 140 °F), the camera is designed for extreme temperature environments. The camera complies with an IK10 vandal resistance rating making it capable of withstanding the equivalent of 5 kg (11.02 lbs) of force dropped from a height of 40 cm (15.75 in.).
Cybersecurity
Dahua network cameras are equipped with a series of key cybersecurity technologies including: security authentication and authorization, access control, trusted protection, encrypted transmission, and encrypted storage. These technologies improve the camera’s ability to prevent malicious access and to protect data.
Protection
This camera suits even the harsh conditions for outdoor applications. Its 2KV lightning rating provides protection against the camera and its structure from the effects of lightning.
