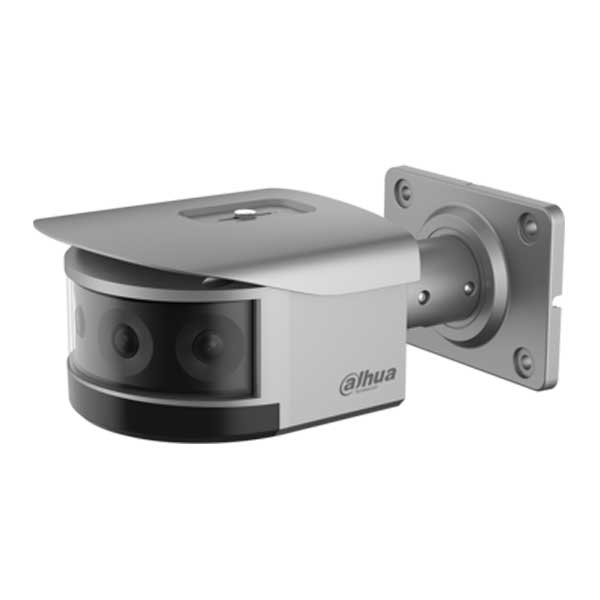

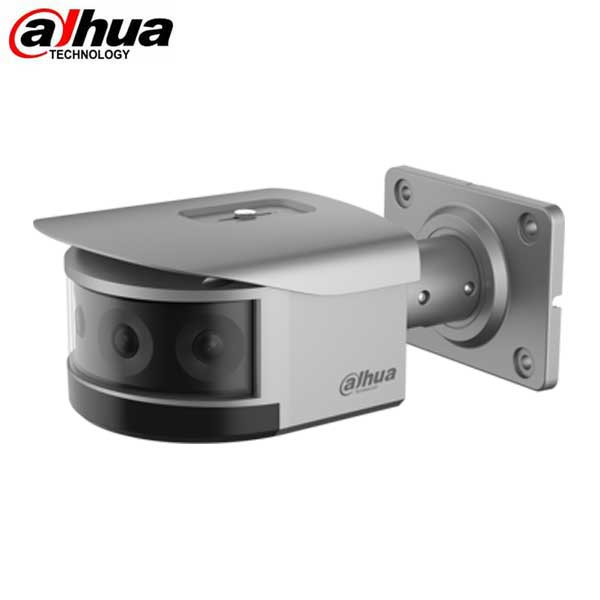

*Discontinued* Dahua / IP / 4 x 2MP / Bullet Camera / 2.8mm Lens / IP67 / IK10 / 30m IR / DH-IPC-PFW8840N-A180
- $1,610.98
-
- $1,610.98
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
DH-IPC-PFW8840N-A180
The multi-sensor camera provides added flexibility for capturing wide area video surveillance. With four (4) 2 MP sensors working in tandem to create a comprehensive 180° overview, the camera can replace multiple single-sensor cameras providing a higher return on investment. The multi-sensor camera features contrast, backlight compensation, white balance, and resolution control to create a crystal-clear image even in the most challenging lighting conditions. Plus, with IP67 and IK10 ratings, the camera is ready for any application.
Features
- Four (4) 1/2.8-in. 2 MP Progressive Scan CMOS Imagers
- Triple-stream Encoding
- Smart H.265+ and Smart H.264+ Dual Codec
- Maximum Resolution: 4096 x 1800 at 30 fps
- Starlight Technology for Ultra-low Light Sensitivity
- Maximum IR LED Distance 30 m (98 ft)
- ArcticPro Series Camera - Operational down to –40° C (–40° F)
- IP67 Ingress Protection and IK10 Vandal Resistance
- Become a registered dealer of Dahua
- Call 1-800-878-6604 for Dealer Prices!
- $1,610.98
-
- $1,610.98
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
x
Technical Specification
| Camera | |
| Image Sensor | Four (4) 1/2.8-in. CMOS Sensors |
| Effective Pixels | 4096(H) × 1800(V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto, Manual: 1/3 s to 1/100,000 s |
| Minimum Illumination | Color: 0.002 lux at F1.6 0 lux at F1.6 with IR on |
| S/N Ratio | More than 56 dB |
| IR Distance | Up to 30 m (98.43 ft) |
| IR On/Off Control | Auto, Manual |
| IR LEDs | Six (6) |
| Lens | |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm |
| Maximum Aperture | F1.6 |
| Angle of View | Horizontal: 95° Vertical: 36° |
| Focus Control | Fixed |
| Close Focus Distance | 0.6 mm (23.62 in.) |
| DORI Distance¹ | |
| Detect (8 ppf) | 38.60 m (126.60 ft) |
| Observe (19 ppf) | 15.40 (50.50 ft) |
| Recognize (38 ppf) | 7.70 (25.30 ft) |
| Identify (76 ppf) | 3.90 (12.80 ft) |
| Pan/Tilt/Rotation | |
| Range | Pan: 0˚ to 355˚ Tilt: 0˚ to 90˚ Rotation: 0˚ to 360˚ |
| Video | |
| Compression | Smart H.265+, H.265, Smart H.264+, H.264, H.264H, H.264B, MJPEG (sub stream only) |
| Streaming Capability | Three (3) Streams |
| Resolution | 4096 x 1800, 3840 x 1680, 2880 x 1264, 1920 x 832, 1280 x 560, 1024 x 452 |
| Frame Rate | Main Stream: 4096 x 1800 at 30 fps Sub Stream 1: 1024 x 452 at 30 fps Sub Stream 2: 1920 x 832 at 30 fpsp |
| Bit Rate Control | CBR, VBR |
| Bit Rate | H.265: 9 Kbps to 17664 Kbps H.264: 24 Kbps to 17664 Kbps |
| Day/Night | Auto (ICR), Color, B/W |
| BLC Mode | BLC, HLC, DWDR |
| WDR | 120 dB |
| White Balance | Auto, Natural, Street Lamp, Outdoor, Manual, Regional Custom |
| Gain Control | Auto, Gain Priority, Shutter Priority, Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | Off, On (4 Zone, Rectangle) |
| Region of Interest | Off, On (4 Zone) |
| Advanced Features | Smart Illumination, Defog |
| Digital Zoom | 16x |
| Privacy Masking | Off, On (4 Area, Rectangle) |
| Audio | |
| Compression | PCM,G.711a, G.711Mu, AAC, G.726, G.723 |
| Network | |
| Ethernet | RJ-45 (10/100/1000 Base-T) |
| Protocol | HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP |
| Interoperability | ONVIF (Profile S/Profile G/Profile T), CGI, P2P, Milestone, Genetec |
| Streaming Method | Unicast, Multicast |
| Maximum User Access | 20 Users (Total Bandwidth: 80 Mbps) |
| Edge Storage | Network Attached Storage (NAS) FTP, SFTP, Micro SD Card, maximum 128 GB |
| Web Viewer | IE version 9 and later Firefox version 50 and later Chrome version 48 and later |
| Management Software | DSS, DMSS |
| Mobile Operating System | IOS, Android |
| Interface | |
| Audio | Input: One (1) Channel, RCA Output: One (1) Channel, RCA |
| Alarm | Input: Two (2) Channels (3 VDC to 5 VDC, 5 mA) Output: Two (2) Channels (30 VDC, 1 A; 50 VAC, 0.5 A) |
| RS485 | One (1) Port (baud rate range: 1200 bps–115200 bps) |
| Certifications | |
| Safety | EN 62368-1 UL 60950-1 CAN/CSA C22.2 No.60950-1-07 |
| Electromagnetic Compatibility (EMC) | 47 CFR FCC Part 15 Subpart B Electromagnetic Compatibility Directive |
|
Electrical |
|
| Power Supply | 12 VDC, 24 VAC, or PoE+ (802.3at Class 4) |
| Power Consumption | < 16.2 W |
| Environmental | |
| Operating Conditions | –40° C to +60° C (–40° F to +140° F) Less than 95% RH |
| Storage Conditions | –40° C to +60° C (–40° F to +140° F) Less than 95% RH |
| Ingress Protection |
IP67 |
| Vandal Resistance | IK10 |
| Construction | |
| Casing | Metal and Plastic |
| Dimensions | 298.30 mm x 172.50 mm x 120.50 mm (11.74 in. x 6.79 in. x 4.74 in.) |
1. The DORI distance is a measure of the general proximity for a specific classification to help pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specifications and lab test results according to EN 62676-4, the standard that defines the criteria for the Detect, Observe, Recognize and Identify classifications. 2. The Crowd Density and Vehicle Density functions are available on the camera, however the functions have not been fully tested with Dahua NVRs and with the DSS and IVSS video management software.
Downloads
Functions:
Starlight Technology
For challenging low-light applications, Dahua’s Starlight Ultra-low Light Technology offers best-in-class light sensitivity, capturing details in low light down to 0.002 lux. The camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.
ArcticPro
The Dahua ArcticPro Series of extreme-environment cameras combine temperature-tolerant components with a waterproof enclosure to ensure flawless operation in temperatures as low as –40°F (–40°C) without the need for an internal heater. The lack of a heater reduces the camera’s power consumption and saves operating costs. For applications that demand high-resolution video with advanced features in extremely cold environments, the Dahua ArcticPro Series offers a camera to satisfy the most demanding requirements.
True Day/Night
A day/night mechanical IR cut filter makes this camera ideal for applications with fluctuating lighting conditions, delivering color images during the day and automatically switching to monochrome as the scene darkens.
Smart IR
With IR illumination, detailed images can be captured in low light or total darkness. The camera’s Smart IR technology adjusts the intensity of the camera’s infrared LEDs to compensate for the distance of an object. Smart IR technology prevents IR LEDs from whitening out images as they come closer to the camera. The camera’s integrated infrared illumination provides high-performance in extreme low-light environments up to 30 m (98 ft).
Environmental
The camera complies with the IK10 impact rating making it capable of withstanding the equivalent of 5 kg (11.02 lbs) of force dropped from a height of 40 cm (15.75 in.). Subjected and certified to rigorous dust and water immersion tests, the IP67 rating makes it suitable for demanding outdoor applications.
