Login to view price
Or Call 1-800-878-6604 for Dealer Prices!

$299.99
Available: In Stock
  • Product SKU: DH-N43BB62
  • DH-N43BB62
    Item number: XXXX

    • 1/2.7-in. 4 MP Progressive-scan CMOS Sensor
    • Triple Stream Encoding
    • Smart H. 265+ and Smart H.264+ Dual Codecs
    • 4 MP (2688 x 1520) at 30 fps, 2.8 mm Fixed Lens
    • True WDR (120 dB)
    • Night Color Technology with High-performance Sensor and Large Aperture Lens
    • White-light LEDs for Color Images in Total Darkness
    • Analytics+ Functions — Perimeter Protection and Smart Motion Detection+
    • Built-in Microphone
    • ArcticPro Series Camera - Operational down to –40° C (–40°)
    • IP67 Ingress Protection
    • Five-year Warranty (for products sold through an authorized Dahua Dealer)
    • Become a registered dealer of Dahua
    • Call 1-800-878-6604 for Dealer Prices!

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)


Technical Specification

Camera
Image Sensor 1/2.7-in. 4 MP Progressive-scan CMOS
Effective Pixels 2688(H) x 1520(V)
RAM/ROM 512 MB/128 MB
Scanning System Progressive
Electronic Shutter Speed Auto, Manual; 1/3 s to 1/100000 s
Minimum Illumination Color: 0.003 lux at F1.0
Illuminator Type One (1) White-light LED
Illumination Distance 30.0 m (98.43 ft)
Illuminator Control Auto, Manual
S/N Ratio > 56 dB
Lens
Lens Type Fixed-focal
Iris Type Fixed Aperture
Mount Type M12
Focal Length 2.8 mm
Maximum Aperture F1.0
Angle of View Horizontal: 103°
Vertical: 53.0°
Diagonal: 122°
Close Focus Distance 1.20 m (47.24 in.)
DORI Distance - Lens -Detect 56.0 m
(183.70 ft)
DORI Distance - Lens- Observe 22.40 m
(73.50 ft)
DORI Distance - Lens - Recognize 11.20 m
(36.70 ft)
DORI Distance - Lens - Identify 5.60 m
(18.40 ft)
Installation Angle
Range Pan: 0˚ to 360˚
Tilt: 0˚ to 90˚
Rotation: 0˚ to 360˚
Video
Compression Smart H.265+, H.265, Smart H.264+, H.264, H.264B,
H.264H, MJPEG (sub stream only)
Streaming Capability Three (3) Streams
Resolution 4 MP (2688 x 1520), 3 MP (2304 x 1296),
1080p (1920 x 1080), 1.3 MP (1280 x 960),
720p (1280 x 720), D1 (704 x 480), VGA (640 x 480),
CIF (352 x 240)
Frame Rate Main Stream: 4 MP (2688 x 1520) at 30 fps
Sub Stream 1: D1 at 30 fps
Sub Stream 2: 720p at 30 fps
Bit Rate Control CBR/VBR
Bit Rate H.264: 3 Kbps to 8192 Kbps
H.265: 3 Kbps to 8192 Kbps
Day/Night Color, B/W
BLC Mode BLC, HLC, True WDR (120 dB), SSA
White Balance Auto, Natural, Street Lamp, Outdoor, Manual, Regional Custom
Gain Control Auto, Manual, Gain Priority, Shutter Priority
Noise Reduction 3D DNR
Motion Detection Off, On (4 Zones, Rectangular)
Region of Interest Off, On (4 Zones)
Mirror Off, On
Privacy Masking Off, On (4 Areas, Rectangular)
Audio
Compression PCM, G.711A, G.711Mu, G.726
Network
Ethernet RJ-45 (10/100 Base-T)
Protocol HTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, ICMP, IGMP, 802.1x
Interoperability ONVIF Profile S, G, T; CGI, Milestone, Genetec, P2P
Auto Register Support
Streaming Method Unicast, Multicast
Maximum User Access 20 Users (total bandwidth: 64 MB)
Edge Storage Network Attached Storage (NAS) FTP, SFTP Micro SD Slot, maximum 256 GB
Web Viewer IE (Version 8 and higher), Chrome, Firefox
Management Software DSS, DMSS
Mobile Operating System IOS, Android
Cybersecurity Video Encryption, Firmware Encryption, Configuration Encryption, Digest, WSSE, Account Lockout, Security Logs, IP/MAC Filtering, Generating and Importing X.509 Certification, Syslog, HTTPS, 802.1x, Trusted Boot, Trusted Execution, Trusted Upgrade
Certifications
Safety UL60950-1
CAN/CSA C22.2 No.60950-1-07
EN62368-1
Electromagnetic Compatibility
(EMC)
CFR 47 FCC Part 15 Subpart B
Electromagnetic Compatibility Directive 2014/30/EU
Electrical
Power Supply 12 VDC or PoE (IEEE 802.3af, Class 0)
Power Consumption < 8.4 W
Environmental
Operating Conditions –40° C to +60° C (–40° F to +140° F),
Less than 95% RH
Storage Conditions –40° C to +60° C (–40° F to +140° F)
Ingress Protection IP67
Construction
Casing Metal

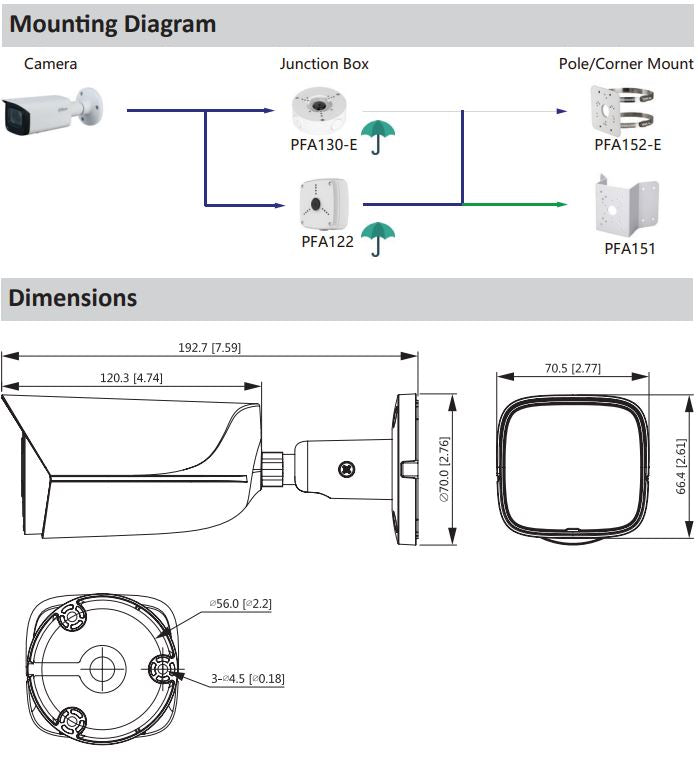

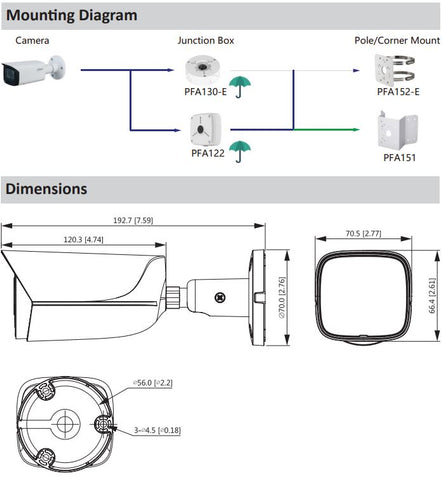

Dimensions 192.70 mm x 70.50 mm x 66.40
(7.59 in. x 2.77 in. x 2.61 in.)
Net Weight 0.59 kg (1.30 lb)
Gross Weight 0.78 kg (1.72 lb)
Analytics+ Functions
Perimeter Protection Detects human or vehicle violations using the
following methods:
Tripwire: a target crosses a defined line.
Intrusion: a target enters or exits a defined
perimeter.
• Monitors a combination of detection methods.
• Search and retrieve video based on target type.
Smart Motion Detection+ Differentiates between and classifies human and
vehicle objects.
• Filters false alarms due to leaves, lights, animals, and
other inconsequential objects.
• Extracts human or vehicle objects from recorded
video for quick target search and retrieval.
Intelligent Video System Functions
IVS triggers an alarm and takes a defined action for the following events:
Standard Features Tampering with the camera.
• Error writing to an onboard Micro SD card.
• Error sending or receiving data over the network.
• Unauthorized access to the camera.
• IP Address Conflict
Premium Features Scene Change: A person or object moves the camera to change the scene or covers the camera to obscure the scene.

1. The DORI distance is a measure of the general proximity for a specific classification to help pinpoint the
right camera for your needs. The DORI distance is calculated based on sensor specifications and lab test
results according to EN 62676-4, the standard that defines the criteria for the Detect, Observe, Recognize
and Identify classifications.

Downloads:
Data Sheet
Quick Start Guide



System Overview
The Dahua 4 MP Night Color 2.0 camera offers Analytics+ functions at the edge – performing complex real-time perimeter protection surveillance. The Dahua Analytics+ algorithms significantly improve accuracy and reliability as compared to standard intelligent features. The camera is ideal for a host of diverse applications —Night Color and True Wide Dynamic Range allow the camera to operate in most lighting conditions and the IP67 rating makes the camera suitable for the harshest environments.

Functions

Perimeter Protection
Dahua Analytics+ includes Tripwire and Intrusion functions that offer custom tripwires based on object type for automation in limited access areas. Perimeter Protection requires less pixels to detect an object to deliver improved accuracy and decreased false alarms due to lights, weather, trees, or animals.

Smart Motion Detection+
Smart Motion Detection+, a component of Dahua's Analytics+
technology, improves alarm accuracy and decreases the number of false
alarms. The advanced SMD+ algorithm analyzes a scene for human or
vehicle motion, while filtering out other motion due to trees, leaves,
animals, weather, and triggers an alarm when detected. SMD+ also
saves time when searching recorded video by filtering false alarms and
allowing quick retrieval of an alarm due to a person or vehicle.

Night Color Technology
The Night Color camera incorporates white-light LEDs to offer full-color images in total darkness, as well as an effective visual deterrent. This technology provides smart illumination where the camera automatically activates the white-light illuminators when ambient light levels fall and adjusts exposure time and LED intensity to prevent overexposing the image.

Smart H.265+
Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ technology reduces bit rate and storage requirements by up to 70% when compared to standard H.265 video compression.

True Dynamic Range (WDR)
The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, True WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.

ArcticPro
The Dahua ArcticPro Series of extreme-environment cameras combine
temperature-tolerant components with a waterproof enclosure to
ensure flawless operation in temperatures as low as –40°F (–40°C)
without the need for an internal heater. The lack of a heater reduces the
camera’s power consumption and saves operating costs. For applications
that demand high-resolution video with advanced features in extremely
cold environments, the Dahua ArcticPro Series offers a camera to satisfy
the most demanding requirements.

Cybersecurity
Dahua network cameras are equipped with a series of key cybersecurity technologies including: security authentication and authorization, access control, trusted protection, encrypted transmission, and encrypted storage. These technologies improve the camera’s ability to prevent malicious access and to protect data.

Environmental
Subjected and certified to rigorous dust and water immersion tests, the
IP67 rating makes it suitable for demanding outdoor applications.

DH-N43BB62
Item number: XXXX

  • 1/2.7-in. 4 MP Progressive-scan CMOS Sensor
  • Triple Stream Encoding
  • Smart H. 265+ and Smart H.264+ Dual Codecs
  • 4 MP (2688 x 1520) at 30 fps, 2.8 mm Fixed Lens
  • True WDR (120 dB)
  • Night Color Technology with High-performance Sensor and Large Aperture Lens
  • White-light LEDs for Color Images in Total Darkness
  • Analytics+ Functions — Perimeter Protection and Smart Motion Detection+
  • Built-in Microphone
  • ArcticPro Series Camera - Operational down to –40° C (–40°)
  • IP67 Ingress Protection
  • Five-year Warranty (for products sold through an authorized Dahua Dealer)
  • Become a registered dealer of Dahua
  • Call 1-800-878-6604 for Dealer Prices!


Technical Specification

Camera
Image Sensor 1/2.7-in. 4 MP Progressive-scan CMOS
Effective Pixels 2688(H) x 1520(V)
RAM/ROM 512 MB/128 MB
Scanning System Progressive
Electronic Shutter Speed Auto, Manual; 1/3 s to 1/100000 s
Minimum Illumination Color: 0.003 lux at F1.0
Illuminator Type One (1) White-light LED
Illumination Distance 30.0 m (98.43 ft)
Illuminator Control Auto, Manual
S/N Ratio > 56 dB
Lens
Lens Type Fixed-focal
Iris Type Fixed Aperture
Mount Type M12
Focal Length 2.8 mm
Maximum Aperture F1.0
Angle of View Horizontal: 103°
Vertical: 53.0°
Diagonal: 122°
Close Focus Distance 1.20 m (47.24 in.)
DORI Distance - Lens -Detect 56.0 m
(183.70 ft)
DORI Distance - Lens- Observe 22.40 m
(73.50 ft)
DORI Distance - Lens - Recognize 11.20 m
(36.70 ft)
DORI Distance - Lens - Identify 5.60 m
(18.40 ft)
Installation Angle
Range Pan: 0˚ to 360˚
Tilt: 0˚ to 90˚
Rotation: 0˚ to 360˚
Video
Compression Smart H.265+, H.265, Smart H.264+, H.264, H.264B,
H.264H, MJPEG (sub stream only)
Streaming Capability Three (3) Streams
Resolution 4 MP (2688 x 1520), 3 MP (2304 x 1296),
1080p (1920 x 1080), 1.3 MP (1280 x 960),
720p (1280 x 720), D1 (704 x 480), VGA (640 x 480),
CIF (352 x 240)
Frame Rate Main Stream: 4 MP (2688 x 1520) at 30 fps
Sub Stream 1: D1 at 30 fps
Sub Stream 2: 720p at 30 fps
Bit Rate Control CBR/VBR
Bit Rate H.264: 3 Kbps to 8192 Kbps
H.265: 3 Kbps to 8192 Kbps
Day/Night Color, B/W
BLC Mode BLC, HLC, True WDR (120 dB), SSA
White Balance Auto, Natural, Street Lamp, Outdoor, Manual, Regional Custom
Gain Control Auto, Manual, Gain Priority, Shutter Priority
Noise Reduction 3D DNR
Motion Detection Off, On (4 Zones, Rectangular)
Region of Interest Off, On (4 Zones)
Mirror Off, On
Privacy Masking Off, On (4 Areas, Rectangular)
Audio
Compression PCM, G.711A, G.711Mu, G.726
Network
Ethernet RJ-45 (10/100 Base-T)
Protocol HTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, ICMP, IGMP, 802.1x
Interoperability ONVIF Profile S, G, T; CGI, Milestone, Genetec, P2P
Auto Register Support
Streaming Method Unicast, Multicast
Maximum User Access 20 Users (total bandwidth: 64 MB)
Edge Storage Network Attached Storage (NAS) FTP, SFTP Micro SD Slot, maximum 256 GB
Web Viewer IE (Version 8 and higher), Chrome, Firefox
Management Software DSS, DMSS
Mobile Operating System IOS, Android
Cybersecurity Video Encryption, Firmware Encryption, Configuration Encryption, Digest, WSSE, Account Lockout, Security Logs, IP/MAC Filtering, Generating and Importing X.509 Certification, Syslog, HTTPS, 802.1x, Trusted Boot, Trusted Execution, Trusted Upgrade
Certifications
Safety UL60950-1
CAN/CSA C22.2 No.60950-1-07
EN62368-1
Electromagnetic Compatibility
(EMC)
CFR 47 FCC Part 15 Subpart B
Electromagnetic Compatibility Directive 2014/30/EU
Electrical
Power Supply 12 VDC or PoE (IEEE 802.3af, Class 0)
Power Consumption < 8.4 W
Environmental
Operating Conditions –40° C to +60° C (–40° F to +140° F),
Less than 95% RH
Storage Conditions –40° C to +60° C (–40° F to +140° F)
Ingress Protection IP67
Construction
Casing Metal
Dimensions 192.70 mm x 70.50 mm x 66.40
(7.59 in. x 2.77 in. x 2.61 in.)
Net Weight 0.59 kg (1.30 lb)
Gross Weight 0.78 kg (1.72 lb)
Analytics+ Functions
Perimeter Protection Detects human or vehicle violations using the
following methods:
Tripwire: a target crosses a defined line.
Intrusion: a target enters or exits a defined
perimeter.
• Monitors a combination of detection methods.
• Search and retrieve video based on target type.
Smart Motion Detection+ Differentiates between and classifies human and
vehicle objects.
• Filters false alarms due to leaves, lights, animals, and
other inconsequential objects.
• Extracts human or vehicle objects from recorded
video for quick target search and retrieval.
Intelligent Video System Functions
IVS triggers an alarm and takes a defined action for the following events:
Standard Features Tampering with the camera.
• Error writing to an onboard Micro SD card.
• Error sending or receiving data over the network.
• Unauthorized access to the camera.
• IP Address Conflict
Premium Features Scene Change: A person or object moves the camera to change the scene or covers the camera to obscure the scene.

1. The DORI distance is a measure of the general proximity for a specific classification to help pinpoint the
right camera for your needs. The DORI distance is calculated based on sensor specifications and lab test
results according to EN 62676-4, the standard that defines the criteria for the Detect, Observe, Recognize
and Identify classifications.

Downloads:
Data Sheet
Quick Start Guide



System Overview

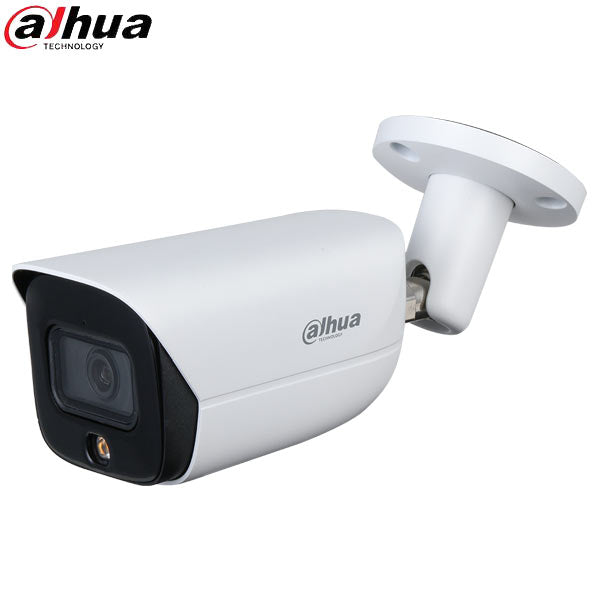

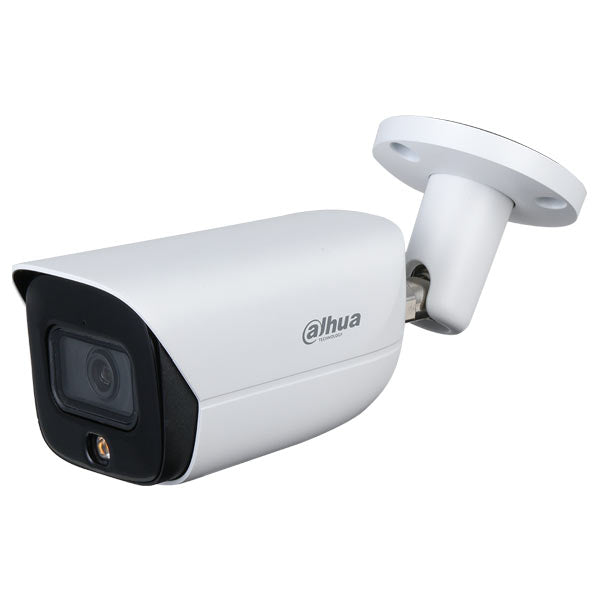

The Dahua 4 MP Night Color 2.0 camera offers Analytics+ functions at the edge – performing complex real-time perimeter protection surveillance. The Dahua Analytics+ algorithms significantly improve accuracy and reliability as compared to standard intelligent features. The camera is ideal for a host of diverse applications —Night Color and True Wide Dynamic Range allow the camera to operate in most lighting conditions and the IP67 rating makes the camera suitable for the harshest environments.

Functions

Perimeter Protection
Dahua Analytics+ includes Tripwire and Intrusion functions that offer custom tripwires based on object type for automation in limited access areas. Perimeter Protection requires less pixels to detect an object to deliver improved accuracy and decreased false alarms due to lights, weather, trees, or animals.

Smart Motion Detection+
Smart Motion Detection+, a component of Dahua's Analytics+
technology, improves alarm accuracy and decreases the number of false
alarms. The advanced SMD+ algorithm analyzes a scene for human or
vehicle motion, while filtering out other motion due to trees, leaves,
animals, weather, and triggers an alarm when detected. SMD+ also
saves time when searching recorded video by filtering false alarms and
allowing quick retrieval of an alarm due to a person or vehicle.

Night Color Technology
The Night Color camera incorporates white-light LEDs to offer full-color images in total darkness, as well as an effective visual deterrent. This technology provides smart illumination where the camera automatically activates the white-light illuminators when ambient light levels fall and adjusts exposure time and LED intensity to prevent overexposing the image.

Smart H.265+
Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ technology reduces bit rate and storage requirements by up to 70% when compared to standard H.265 video compression.

True Dynamic Range (WDR)
The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, True WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.

ArcticPro
The Dahua ArcticPro Series of extreme-environment cameras combine
temperature-tolerant components with a waterproof enclosure to
ensure flawless operation in temperatures as low as –40°F (–40°C)
without the need for an internal heater. The lack of a heater reduces the
camera’s power consumption and saves operating costs. For applications
that demand high-resolution video with advanced features in extremely
cold environments, the Dahua ArcticPro Series offers a camera to satisfy
the most demanding requirements.

Cybersecurity
Dahua network cameras are equipped with a series of key cybersecurity technologies including: security authentication and authorization, access control, trusted protection, encrypted transmission, and encrypted storage. These technologies improve the camera’s ability to prevent malicious access and to protect data.

Environmental
Subjected and certified to rigorous dust and water immersion tests, the
IP67 rating makes it suitable for demanding outdoor applications.

Compatible With
