Login to view price
Or Call 1-800-878-6604 for Dealer Prices!

$599.99
Available: In Stock
  • Product SKU: DH-N45EFNZ
  • DH-N45EFNZ
    Item number: XXXX

    • 1/1.8 in. 4 MP Progressive-scan CMOS Sensor
    • Triple-stream Encoding
    • Smart H.265+ and Smart H.264+ Dual Codec
    • 4 MP (2688 x 1520) at 30 fps
    • 2.7 mm to 12 mm Motorized Lens
    • Ultra Wide Dynamic Range (140 dB)
    • Built-in Microphone and  Speaker
    • Analytics+ Function –  People Counting, Perimeter Protection, Smart Motion Detection+, and Face Detection
    • Night Color Technology with White-light LEDS for Color Images in Total Darkness
    • Enhanced Power and Data Transmission Distances (ePoE)
    • Arctic Pro Series Camera – Operational down to –40° C (–40° F)
    • IP67 Ingress Protection
    • Five-year Warranty (for products sold through an authorized Dahua Dealer)
    • Become a registered dealer of Dahua
    • Call 1-800-878-6604 for Dealer Prices

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)




Technical Specification

Camera
Image Sensor 1/1.8-in. 4 MP Progressive-scan CMOS
Effective Pixels 2688(H) x 1520(V)
RAM/ROM 512 MB/128 MB
Scanning System Progressive
Electronic Shutter Speed Auto, Manual, 1/3 s to 1/100,000 s
Minimum Illumination Color: 0.0005 lux at F1.0
Illuminator Type White-light LED
Illumination Distance 70.0 m (229.66 ft)
Illuminator Control Automatic, Manual, Zoom Priority, Off
LEDs Four (4)
Lens
Lens Type Motorized Vari-focal
Iris Type Automatic
Mount Type 14
Focal Length 2.7 mm to 12 mm
Maximum Aperture F1.0
Angle of View Horizontal: 107°
Vertical: 60°
Diagonal: 135°
Close Focus Distance 1.60 m (5.25 ft)
DORI Distance - Focus - Wide - Detect 60.4 m
(198.2 ft)
DORI Distance - Focus - Wide - Observe 24.1 m
(79.1 ft)
DORI Distance - Focus - Wide - Recognize 12.0 m
(39.4 ft)
DORI Distance - Focus - Wide - Identify 6.0 m
(19.7 ft)
DORI Distance - Focus - Tele - Detect 128.6 m
(421.9 ft)
DORI Distance - Focus - Tele - Observe 51.4 mm
(168.6 ft)
DORI Distance - Focus - Tele - Recognize 25.7 m
(84.3 ft)
DORI Distance - Focus - Tele - Identify 12.8 m
(42.0 ft)

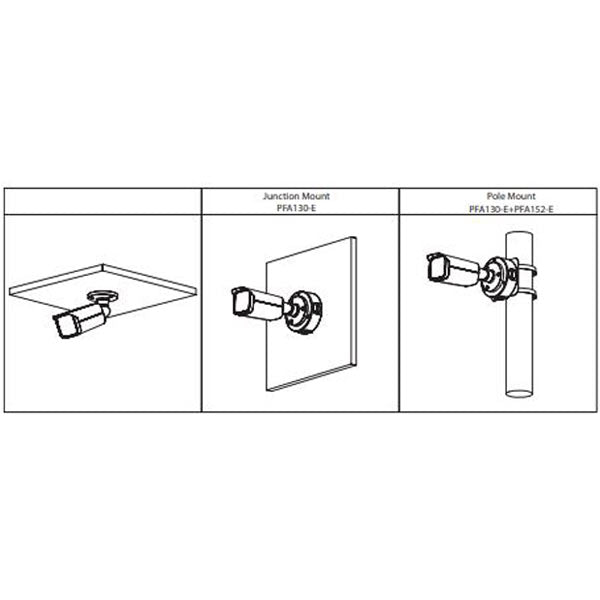

Installation Angle
Range Pan: 0˚ to 360˚
Tilt: 0˚ to 90˚
Rotation: 0˚ to 360˚
Video
Compression Smart H.265+, H.265, Smart H.264+, H.264, H.264B,
H.264H, MJPEG (sub stream only)
Streaming Capability Three (3) Streams
Resolution 4 MP (2688 x 1520), 2560 x 1440, 2304 x 1296, 1080p (1920 x 1080), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), VGA (640 x 480), CIF (352 x 240)
Frame Rate Main Stream: 4 MP (2688 x 1520) at 30 fps
Sub Stream 1: D1 (704 x 480) at 30 fps
Sub Stream 2: 1080p (1920 x 1080) at 1 fps
Bit Rate Control CBR/VBR
Bit Rate H.264: 3 Kbps to 8192 Kbps
H.265: 3 Kbps to 8192 Kbps
Day/Night Color, B/W
BLC Mode BLC, HLC, Ultra WDR (140 dB), SSA
White Balance Auto, Natural, Street Lamp, Outdoor, Manual,
Regional Custom
Gain Control Auto, Manual, Gain Priority, Shutter Priority
Noise Reduction 3D DNR
Motion Detection Off, On (4 Zones)
Region of Interest Off, On (4 Zones)
Advanced Features Defog
Image Rotation 0°, 90°, 180°, 270°
Mirror Off, On
Privacy Masking Off, On (8 Areas, Rectangular)
Audio
Compression G.711a, G.711Mu, G.726, G.723, PCM
Network
Ethernet RJ-45 (10/100 Base-T)
Protocol HTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, ICMP, IGMP, 802.1x
Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P
Streaming Method Unicast, Multicast
Maximum User Access 20 Users (total bandwidth: 80 Mbps)
Edge Storage Network Attached Storage (NAS)
FTP, SFTP
Micro SD Card Slot, maximum 256 GB
Web Viewer IE (Version 8 and higher), Chrome, Firefox,
Management Software DSS, DMSS
Mobile Operating System IOS, Android
Cybersecurity Video Encryption, Firmware Encryption, Configuration Encryption, Digest, WSSE, Account Lockout, Security Logs, IP/MAC Filtering, Generating and Importing X.509 Certification, Syslog, HTTPS, 802.1x, Trusted Boot, Trusted Execution, Trusted Upgrade
Certifications
Safety UUL60950-1, CAN/CSA C22.2 No.60950-1-07
EN62368-1
Electromagnetic Compatibility (EMC) CFR 47 FCC Part 15 Subpart B
Electromagnetic Compatibility Directive 2014/30/EU

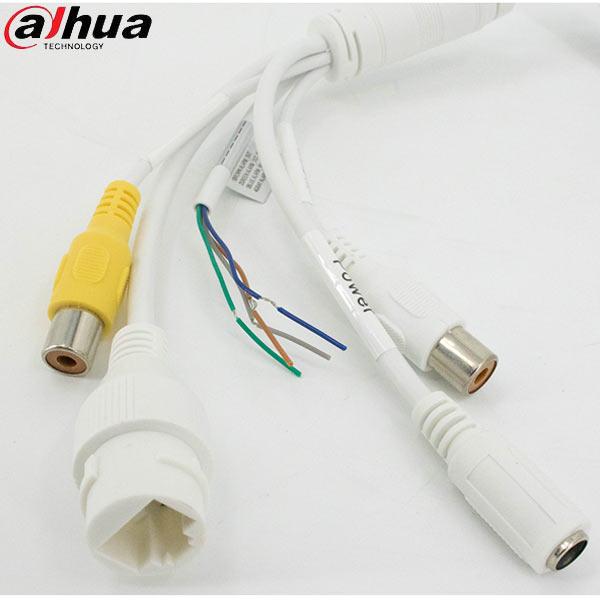

Interface
Audio One (1) Channel, RCA plus a built-in Microphone
Output: One (1) Channel, RCA plus a built-in Speaker
Alarm Input: One (1) Channel (5 mA, 3 to 5 VDC)
Output: One (1) Channel (300 mA, 12 VDC)
Electrical
Power Supply 12 VDC ±30%, PoE (IEEE 802.3af, Class 0), or ePoE
Power Consumption Basic: 12 VDC: 2.2 W  PoE (2.8 W)
Maximum: 12 VDC: 9.9 W PoE (10.9 W)
Environmental
Operating Conditions –40° C to +60° C (–40° F to +140° F),
Less than 95% RH
Storage Conditions –40° C to +60° C (–40° F to +140° F)
Ingress Protection IP67

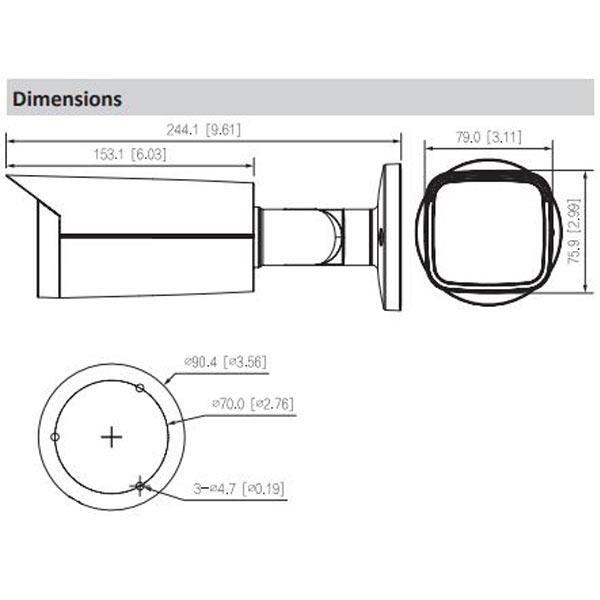

Construction
Casing Metal
Dimensions 288.40 mm x 94.40 mm x 84.70 mm
(11.35 in. x 3.72 in. x 3.33 in.)
Net Weight 1.0 kg (2.20 lb))
Gross Weight 1.23 kg (2.71 lb)
Analytics+ Functions
Smart Plan Schedule Enable Analytics+ functions depending on a user-defined
schedule. Allows the camera to switch analytic functions
based on time.
Perimeter Protection • Detects human or vehicle violations using the following
methods:
Tripwire: a target crosses a defined line.
Intrusion: a target enters or exits a defined perimeter.
• Monitors a combination of nine (9) detection methods.
• Search and retrieve video based on target type.
People Counting • Delivers accurate flow statistics from the following
methods:
Line Crossing: counts a person as they cross a
threshold in a defined direction.
Region: counts the number of people in a defined
area.
• Counts people simultaneously from four (4) threshold
lines and four (4) defined regions.
Queue Management • Monitors four (4) user-defined regions where people wait in line (or queue). Issues an alarm for the following triggers:
People in Line: the number of people in line exceeds a minimum threshold.
Wait Time: time a person waits in line is greater than the minimum queue time.
Face Detection Detects and captures a snapshot of a human face within
a scene.
Smart Motion Detection+ • Differentiates between and classifies human and
vehicle objects.
• Filters false alarms due to leaves, lights, animals, and
other inconsequential objects.
• Extracts human or vehicle objects from recorded video
for quick target search and retrieval.
Intelligent Video System Functions
IVS triggers an alarm and takes a defined action for the following events:
Standard Features • Tampering with the camera.
• Error writing to an onboard Micro SD card.
• Error sending or receiving data over the network.
• Unauthorized access to the camera.
• IP Address Conflict
Premium Features
Missing Object An object is missing from a designated area
Abandoned Object An object is placed in a designated area where no object
should be.
Scene Change A person or object moves the camera to change the scene or covers the camera to obscure the scene.
Fast Moving Target exceeds a set speed when exiting a defined area
Parking Detection Vehicle remains in a defined area without motion for a set period of time.
Crowd Gathering Specified number of people remain inside a defined area for a set time.
Loitering Detection Target is in motion inside a defined area longer than a specified amount of time.



1. The DORI distance is a measure of the general proximity for a specific classification to help pinpoint the
right camera for your needs. The DORI distance is calculated based on sensor specifications and lab test
results according to EN 62676-4, the standard that defines the criteria for the Detect, Observe, Recognize
and Identify classifications.
2. Pair a Smart Motion Detection camera with a Dahua recording device that also offers SMD functionality to
take advantage of SMD alarm filtering and object classification when searching and playing back recorded
video.

Downloads:
Data Sheet
Quick Start Guide




WizMind Series devices offer the full complement of Dahua Analytics+ functions for comprehensive, human-oriented analytic solutions. WizMind Series products deliver perimeter protection, vehicle and crowd density statistics, video metadata, and advanced people counting with heat map functionality. WizMind is ideal for complex applications with demanding requirements that need advanced analytic capabilities.


System Overview
The Dahua 4 MP Night Color 2.0 ePoE camera offers Analytics+ functions at the edge – performing complex real-time perimeter protection surveillance, Smart Motion Detection, and face detection. The Dahua Analytics+ algorithms significantly improve accuracy and reliability as compared to standard intelligent features. The camera is ideal for a host of diverse applications — Night Color Technology and Ultra Wide Dynamic Range allow the camera to operate in any lighting condition and the IP67 rating makes the camera suitable for the harshest environments.

Functions

Perimeter Protection
Dahua Analytics+ includes Tripwire and Intrusion functions that offer
custom tripwires based on object type for automation in limited access
areas. Perimeter Protection requires less pixels to detect an object to
deliver improved accuracy and decreased false alarms due to lights,
weather, trees, or animals.

People Counting
The camera uses complex real-time people counting algorithms to deliver
accurate flow statistics from two distinct people counting functions, Line
Crossing and Regional. The line crossing function counts the number of
people crossing a defined line, and the regional function counts the number
of people in a distinct, user-defined area. People counting is ideal for
measuring the number of customers entering or exiting a location and to
monitor groups of people in a distinct location.

Smart Motion Detection+
Smart Motion Detection+, a component of Dahua's Analytics+ technology,
improves alarm accuracy and decreases the number of false alarms. The
advanced SMD+ algorithm analyzes a scene for human or vehicle motion,
while filtering out other motion due to trees, leaves, animals, weather, and
triggers an alarm when detected. SMD+ also saves time when searching
recorded video by filtering false alarms and allowing quick retrieval of an alarm due to a person or vehicle.

Night Color Technology
The Night Color camera incorporates white-light LEDs to offer full-color
images in total darkness, as well as an effective visual deterrent. This
technology provides smart illumination where the camera automatically
activates the white-light illuminators when ambient light levels fall and
adjusts exposure time and LED intensity to prevent overexposing the
image.

ArcticPro
The Dahua ArcticPro Series of extreme-environment cameras combine
temperature-tolerant components with a waterproof enclosure to
ensure flawless operation in temperatures as low as –40° C (–40° F)
without the need for an internal heater. The lack of a heater reduces the
camera’s power consumption and saves operating costs. For applications
that demand high-resolution video with advanced features in extremely
cold environments, the Dahua ArcticPro Series offers a camera to satisfy
the most demanding requirements.
Enhanced Power over Ethernet (ePoE) Technology
Dahua's innovative ePoE technology offers a plug-and-play solution to
transmit power and data over long distances via Ethernet or coaxial
cables, reducing installation time and saving money. ePoE technology is
a viable, cost-effective solution for extending transmission distances and
for converting existing, coax-based analog systems into IP systems.

Ultra Wide Dynamic Range
For applications with both bright and low lighting conditions that change quickly, Ultra WDR (140 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.

Cybersecurity
Dahua network cameras are equipped with a series of key cybersecurity
technologies including: security authentication and authorization, access
control, trusted protection, encrypted transmission, and encrypted
storage. These technologies improve the camera’s ability to prevent
malicious access and to protect data.
Environmental
Subjected to rigorous dust and water immersion tests the camera
suitable for the most demanding outdoor applications. The camera
carries an IP67 rating that ensures protection from total dust ingress and
protection from water immersion between 15 centimeters and 1 meter
in depth.

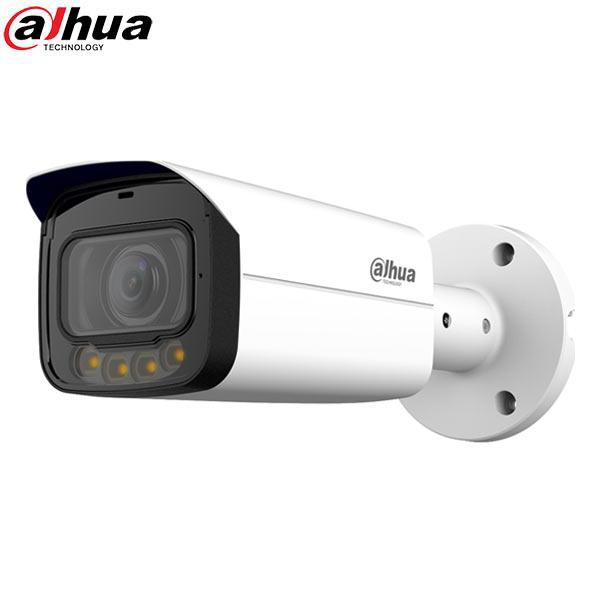

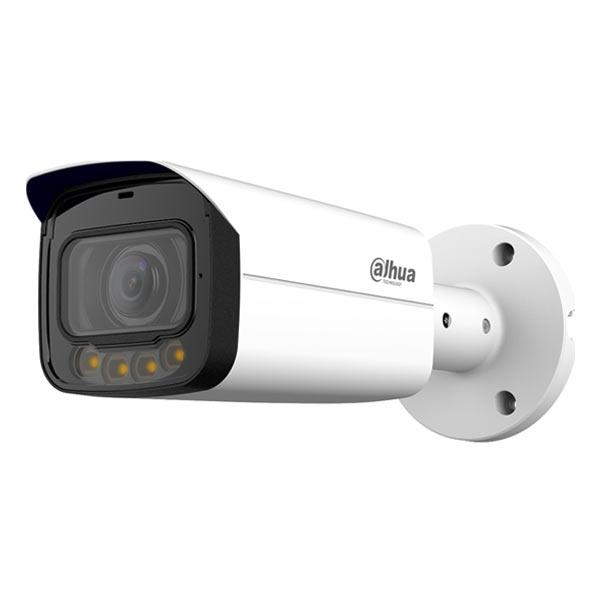

DH-N45EFNZ
Item number: XXXX

  • 1/1.8 in. 4 MP Progressive-scan CMOS Sensor
  • Triple-stream Encoding
  • Smart H.265+ and Smart H.264+ Dual Codec
  • 4 MP (2688 x 1520) at 30 fps
  • 2.7 mm to 12 mm Motorized Lens
  • Ultra Wide Dynamic Range (140 dB)
  • Built-in Microphone and  Speaker
  • Analytics+ Function –  People Counting, Perimeter Protection, Smart Motion Detection+, and Face Detection
  • Night Color Technology with White-light LEDS for Color Images in Total Darkness
  • Enhanced Power and Data Transmission Distances (ePoE)
  • Arctic Pro Series Camera – Operational down to –40° C (–40° F)
  • IP67 Ingress Protection
  • Five-year Warranty (for products sold through an authorized Dahua Dealer)
  • Become a registered dealer of Dahua
  • Call 1-800-878-6604 for Dealer Prices




Technical Specification

Camera
Image Sensor 1/1.8-in. 4 MP Progressive-scan CMOS
Effective Pixels 2688(H) x 1520(V)
RAM/ROM 512 MB/128 MB
Scanning System Progressive
Electronic Shutter Speed Auto, Manual, 1/3 s to 1/100,000 s
Minimum Illumination Color: 0.0005 lux at F1.0
Illuminator Type White-light LED
Illumination Distance 70.0 m (229.66 ft)
Illuminator Control Automatic, Manual, Zoom Priority, Off
LEDs Four (4)
Lens
Lens Type Motorized Vari-focal
Iris Type Automatic
Mount Type 14
Focal Length 2.7 mm to 12 mm
Maximum Aperture F1.0
Angle of View Horizontal: 107°
Vertical: 60°
Diagonal: 135°
Close Focus Distance 1.60 m (5.25 ft)
DORI Distance - Focus - Wide - Detect 60.4 m
(198.2 ft)
DORI Distance - Focus - Wide - Observe 24.1 m
(79.1 ft)
DORI Distance - Focus - Wide - Recognize 12.0 m
(39.4 ft)
DORI Distance - Focus - Wide - Identify 6.0 m
(19.7 ft)
DORI Distance - Focus - Tele - Detect 128.6 m
(421.9 ft)
DORI Distance - Focus - Tele - Observe 51.4 mm
(168.6 ft)
DORI Distance - Focus - Tele - Recognize 25.7 m
(84.3 ft)
DORI Distance - Focus - Tele - Identify 12.8 m
(42.0 ft)
Installation Angle
Range Pan: 0˚ to 360˚
Tilt: 0˚ to 90˚
Rotation: 0˚ to 360˚
Video
Compression Smart H.265+, H.265, Smart H.264+, H.264, H.264B,
H.264H, MJPEG (sub stream only)
Streaming Capability Three (3) Streams
Resolution 4 MP (2688 x 1520), 2560 x 1440, 2304 x 1296, 1080p (1920 x 1080), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), VGA (640 x 480), CIF (352 x 240)
Frame Rate Main Stream: 4 MP (2688 x 1520) at 30 fps
Sub Stream 1: D1 (704 x 480) at 30 fps
Sub Stream 2: 1080p (1920 x 1080) at 1 fps
Bit Rate Control CBR/VBR
Bit Rate H.264: 3 Kbps to 8192 Kbps
H.265: 3 Kbps to 8192 Kbps
Day/Night Color, B/W
BLC Mode BLC, HLC, Ultra WDR (140 dB), SSA
White Balance Auto, Natural, Street Lamp, Outdoor, Manual,
Regional Custom
Gain Control Auto, Manual, Gain Priority, Shutter Priority
Noise Reduction 3D DNR
Motion Detection Off, On (4 Zones)
Region of Interest Off, On (4 Zones)
Advanced Features Defog
Image Rotation 0°, 90°, 180°, 270°
Mirror Off, On
Privacy Masking Off, On (8 Areas, Rectangular)
Audio
Compression G.711a, G.711Mu, G.726, G.723, PCM
Network
Ethernet RJ-45 (10/100 Base-T)
Protocol HTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, ICMP, IGMP, 802.1x
Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P
Streaming Method Unicast, Multicast
Maximum User Access 20 Users (total bandwidth: 80 Mbps)
Edge Storage Network Attached Storage (NAS)
FTP, SFTP
Micro SD Card Slot, maximum 256 GB
Web Viewer IE (Version 8 and higher), Chrome, Firefox,
Management Software DSS, DMSS
Mobile Operating System IOS, Android
Cybersecurity Video Encryption, Firmware Encryption, Configuration Encryption, Digest, WSSE, Account Lockout, Security Logs, IP/MAC Filtering, Generating and Importing X.509 Certification, Syslog, HTTPS, 802.1x, Trusted Boot, Trusted Execution, Trusted Upgrade
Certifications
Safety UUL60950-1, CAN/CSA C22.2 No.60950-1-07
EN62368-1
Electromagnetic Compatibility (EMC) CFR 47 FCC Part 15 Subpart B
Electromagnetic Compatibility Directive 2014/30/EU
Interface
Audio One (1) Channel, RCA plus a built-in Microphone
Output: One (1) Channel, RCA plus a built-in Speaker
Alarm Input: One (1) Channel (5 mA, 3 to 5 VDC)
Output: One (1) Channel (300 mA, 12 VDC)
Electrical
Power Supply 12 VDC ±30%, PoE (IEEE 802.3af, Class 0), or ePoE
Power Consumption Basic: 12 VDC: 2.2 W  PoE (2.8 W)
Maximum: 12 VDC: 9.9 W PoE (10.9 W)
Environmental
Operating Conditions –40° C to +60° C (–40° F to +140° F),
Less than 95% RH
Storage Conditions –40° C to +60° C (–40° F to +140° F)
Ingress Protection IP67
Construction
Casing Metal
Dimensions 288.40 mm x 94.40 mm x 84.70 mm
(11.35 in. x 3.72 in. x 3.33 in.)
Net Weight 1.0 kg (2.20 lb))
Gross Weight 1.23 kg (2.71 lb)
Analytics+ Functions
Smart Plan Schedule Enable Analytics+ functions depending on a user-defined
schedule. Allows the camera to switch analytic functions
based on time.
Perimeter Protection • Detects human or vehicle violations using the following
methods:
Tripwire: a target crosses a defined line.
Intrusion: a target enters or exits a defined perimeter.
• Monitors a combination of nine (9) detection methods.
• Search and retrieve video based on target type.
People Counting • Delivers accurate flow statistics from the following
methods:
Line Crossing: counts a person as they cross a
threshold in a defined direction.
Region: counts the number of people in a defined
area.
• Counts people simultaneously from four (4) threshold
lines and four (4) defined regions.
Queue Management • Monitors four (4) user-defined regions where people wait in line (or queue). Issues an alarm for the following triggers:
People in Line: the number of people in line exceeds a minimum threshold.
Wait Time: time a person waits in line is greater than the minimum queue time.
Face Detection Detects and captures a snapshot of a human face within
a scene.
Smart Motion Detection+ • Differentiates between and classifies human and
vehicle objects.
• Filters false alarms due to leaves, lights, animals, and
other inconsequential objects.
• Extracts human or vehicle objects from recorded video
for quick target search and retrieval.
Intelligent Video System Functions
IVS triggers an alarm and takes a defined action for the following events:
Standard Features • Tampering with the camera.
• Error writing to an onboard Micro SD card.
• Error sending or receiving data over the network.
• Unauthorized access to the camera.
• IP Address Conflict
Premium Features
Missing Object An object is missing from a designated area
Abandoned Object An object is placed in a designated area where no object
should be.
Scene Change A person or object moves the camera to change the scene or covers the camera to obscure the scene.
Fast Moving Target exceeds a set speed when exiting a defined area
Parking Detection Vehicle remains in a defined area without motion for a set period of time.
Crowd Gathering Specified number of people remain inside a defined area for a set time.
Loitering Detection Target is in motion inside a defined area longer than a specified amount of time.



1. The DORI distance is a measure of the general proximity for a specific classification to help pinpoint the
right camera for your needs. The DORI distance is calculated based on sensor specifications and lab test
results according to EN 62676-4, the standard that defines the criteria for the Detect, Observe, Recognize
and Identify classifications.
2. Pair a Smart Motion Detection camera with a Dahua recording device that also offers SMD functionality to
take advantage of SMD alarm filtering and object classification when searching and playing back recorded
video.

Downloads:
Data Sheet
Quick Start Guide




WizMind Series devices offer the full complement of Dahua Analytics+ functions for comprehensive, human-oriented analytic solutions. WizMind Series products deliver perimeter protection, vehicle and crowd density statistics, video metadata, and advanced people counting with heat map functionality. WizMind is ideal for complex applications with demanding requirements that need advanced analytic capabilities.


System Overview
The Dahua 4 MP Night Color 2.0 ePoE camera offers Analytics+ functions at the edge – performing complex real-time perimeter protection surveillance, Smart Motion Detection, and face detection. The Dahua Analytics+ algorithms significantly improve accuracy and reliability as compared to standard intelligent features. The camera is ideal for a host of diverse applications — Night Color Technology and Ultra Wide Dynamic Range allow the camera to operate in any lighting condition and the IP67 rating makes the camera suitable for the harshest environments.

Functions

Perimeter Protection
Dahua Analytics+ includes Tripwire and Intrusion functions that offer
custom tripwires based on object type for automation in limited access
areas. Perimeter Protection requires less pixels to detect an object to
deliver improved accuracy and decreased false alarms due to lights,
weather, trees, or animals.

People Counting
The camera uses complex real-time people counting algorithms to deliver
accurate flow statistics from two distinct people counting functions, Line
Crossing and Regional. The line crossing function counts the number of
people crossing a defined line, and the regional function counts the number
of people in a distinct, user-defined area. People counting is ideal for
measuring the number of customers entering or exiting a location and to
monitor groups of people in a distinct location.

Smart Motion Detection+
Smart Motion Detection+, a component of Dahua's Analytics+ technology,
improves alarm accuracy and decreases the number of false alarms. The
advanced SMD+ algorithm analyzes a scene for human or vehicle motion,
while filtering out other motion due to trees, leaves, animals, weather, and
triggers an alarm when detected. SMD+ also saves time when searching
recorded video by filtering false alarms and allowing quick retrieval of an alarm due to a person or vehicle.

Night Color Technology
The Night Color camera incorporates white-light LEDs to offer full-color
images in total darkness, as well as an effective visual deterrent. This
technology provides smart illumination where the camera automatically
activates the white-light illuminators when ambient light levels fall and
adjusts exposure time and LED intensity to prevent overexposing the
image.

ArcticPro
The Dahua ArcticPro Series of extreme-environment cameras combine
temperature-tolerant components with a waterproof enclosure to
ensure flawless operation in temperatures as low as –40° C (–40° F)
without the need for an internal heater. The lack of a heater reduces the
camera’s power consumption and saves operating costs. For applications
that demand high-resolution video with advanced features in extremely
cold environments, the Dahua ArcticPro Series offers a camera to satisfy
the most demanding requirements.
Enhanced Power over Ethernet (ePoE) Technology
Dahua's innovative ePoE technology offers a plug-and-play solution to
transmit power and data over long distances via Ethernet or coaxial
cables, reducing installation time and saving money. ePoE technology is
a viable, cost-effective solution for extending transmission distances and
for converting existing, coax-based analog systems into IP systems.

Ultra Wide Dynamic Range
For applications with both bright and low lighting conditions that change quickly, Ultra WDR (140 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.

Cybersecurity
Dahua network cameras are equipped with a series of key cybersecurity
technologies including: security authentication and authorization, access
control, trusted protection, encrypted transmission, and encrypted
storage. These technologies improve the camera’s ability to prevent
malicious access and to protect data.
Environmental
Subjected to rigorous dust and water immersion tests the camera
suitable for the most demanding outdoor applications. The camera
carries an IP67 rating that ensures protection from total dust ingress and
protection from water immersion between 15 centimeters and 1 meter
in depth.

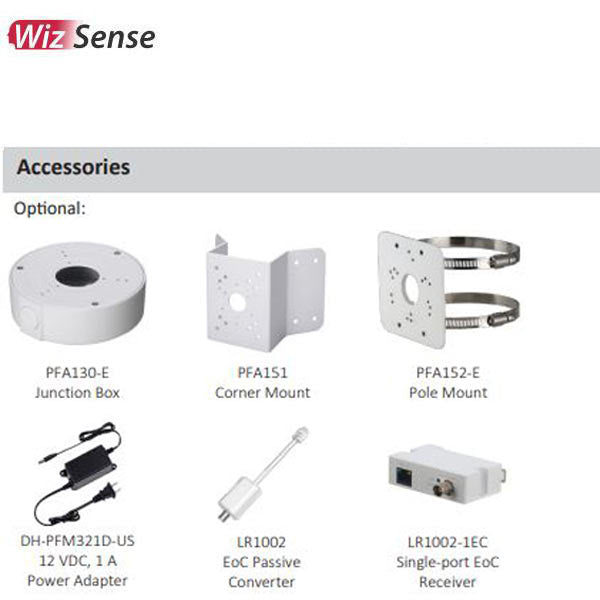

Compatible With
