Login to view price
Or Call 1-800-878-6604 for Dealer Prices!

$599.99
Available: In Stock
  • Product SKU: DH-N45EYNZ
  • DH-N45EYNZ
    Item number: XXXX

    • 1/1.8-in. 4 MP Progressive-scan CMOS Sensor
    • Triple-stream Encoding
    • Smart H.265+ and Smart H.264+ Dual Codec
    • 4 MP (2688 x 1520) at 30 fps
    • 2.7 mm to 12 mm Motorized Vari-focal Lens
    • True Wide Dynamic Range (140 dB)
    • Built-in Microphone and Speaker
    • Analytics+ Function – Perimeter Protection and Smart Motion Detection
    • Night Color Technology with White-light LEDS for Color Images in Total Darkness
    • Enhanced Power and Data Transmission Distances (ePoE)
    • IP67 Ingress Protection and IK10 Vandal Resistance
    • Five-year Warranty (for products sold through an authorized Dahua Dealer)
    • Become a registered dealer of Dahua
    • Call 1-800-878-6604 for Dealer Prices!

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)


Technical Specification

Camera
Image Sensor 1/1.8-in. 4 MP Progressive-scan CMOS
Effective Pixels 2688(H) x 1520(V)
RAM/ROM 512 MB/128 MB
Scanning System Progressive
Electronic Shutter Speed Auto, Manual, 1/3 s to 1/100,000 s
Minimum Illumination Color: 0.005 lux at F1.0
S/N Ratio > 56 dB
Lens
Lens Type Motorized Vari-focal
Iris Type Automatic
Mount Type 14
Focal Length 2.7 mm to 12 mm
Maximum Aperture F1.0
Angle of View Horizontal: 48° to 115°
Vertical: 27° to 59°
Diagonal: 55° to 142°
Close Focus Distance 1.75 m (5.74 ft)
DORI Distance - Focus - Wide - Detect 60.4 m
(198.2 ft)
DORI Distance - Focus - Wide - Observe 24.1 m
(79.1 ft)
DORI Distance - Focus - Wide - Recognize 12.0 m
(39.4 ft)
DORI Distance - Focus - Wide - Identify 6.0 m
(19.7 ft)
DORI Distance - Focus - Tele - Detect 128.6 m
(421.9 ft)
DORI Distance - Focus - Tele  - Observe 51.4 mm
(168.6 ft)
DORI Distance - Focus - Tele  - Recognize 25.7 m
(84.3 ft)
DORI Distance - Focus - Tele  - Identify 12.8 m
(42.0 ft)
Installation Angle
Range Pan: 0˚ to 355˚
Tilt: 0˚ to 80˚
Rotation: 0˚ to 355˚
Video
Compression Smart H.265+, H.265, Smart H.264+, H.264, H.264B,
H.264H, MJPEG (Sub Stream only)
Streaming Capability Three (3) Streams
Resolution 4 MP (2688 x 1520), 3 MP (2304 x 1296),
1080p (1920 x 1080), 1.3 MP (1280 x 960),
720p (1280 x 720), D1 (704 x 480),
VGA (640 x 480), CIF (352 x 240)
Frame Rate Main Stream: 4 MP (2688 x 1520) at 30 fps
Sub Stream 1: D1 (704 x 480) at 30 fps
Sub Stream 2: 1080p (1920 x 1080) at 1 fps
Bit Rate Control CBR/VBR
Bit Rate H.264: 3 Kbps to 8192 Kbps
H.265: 3 Kbps to 8192 Kbps
Day/Night Color, B/W
BLC Mode BLC, HLC, Ultra WDR (140 dB), SSA
White Balance Auto, Natural, Street Lamp, Outdoor, Manual, Regional Custom
Gain Control Auto, Gain Priority, Shutter Priority, Manual
Noise Reduction 3D DNR
Motion Detection Off, On (4 Zones)
Region of Interest Off, On (4 Zones)
Advanced Features Defog
Image Rotation 0°, 90°, 180°, 270°
Mirror Off, On
Privacy Masking Off, On (8 Areas, Rectangular)
Audio
Compression G.711a, G.711Mu, G.726, G.723, PCM
Network
Ethernet RJ-45 (10/100 Base-T)
Protocol HTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, SMTP,
FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS,
UPnP, NTP, ICMP, IGMP, 802.1x
Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P
Streaming Method Unicast / Multicast
Maximum User Access 20 Users (total bandwidth: 80 Mbps)
Edge Storage Network Attached Storage (NAS)
FTP, SFTP,
Micro SD Card Slot, maximum 256 GB
Web Viewer IE (Version 8 and higher), Chrome, Firefox,
Management Software DSS, DMSS
Mobile Operating System IOS, Android
Cybersecurity Video Encryption, Firmware Encryption,
Configuration Encryption, Digest, WSSE, Account
Lockout, Security Logs, IP/MAC Filtering, Generating and Importing X.509 Certification, Syslog, HTTPS, 802.1x, Trusted Boot, Trusted Execution, Trusted Upgrade
Certifications
Safety UL60950-1, CAN/CSA C22.2 No.60950-1-07
EN62368-1
Electromagnetic Compatibility (EMC) CFR 47 FCC Part 15 Subpart B Electromagnetic Compatibility Directive 2014/30/EU
Interface
Audio Input: One (1) Channel, RCA plus a built-in Microphone
Output: One (1) Channel, RCA plus a built-in Speaker
Alarm Input: One (1) Channel (5 mA, 3 to 5 VDC)
Output: One (1) Channel (300 mA, 12 VDC)
Electrical
Power Supply 12 VDC, ePoE, or PoE (IEEE 802.3af, Class 0)
Power Consumption < 10.5 W
Environmental
Operating Conditions –30° C to +60° C (–22° F to +140° F),
Less than 95% RH
Storage Conditions –40° C to +60° C (–40° F to +140° F)
Ingress Protection IP67
Vandal Resistance IK10
Construction
Casing Metal

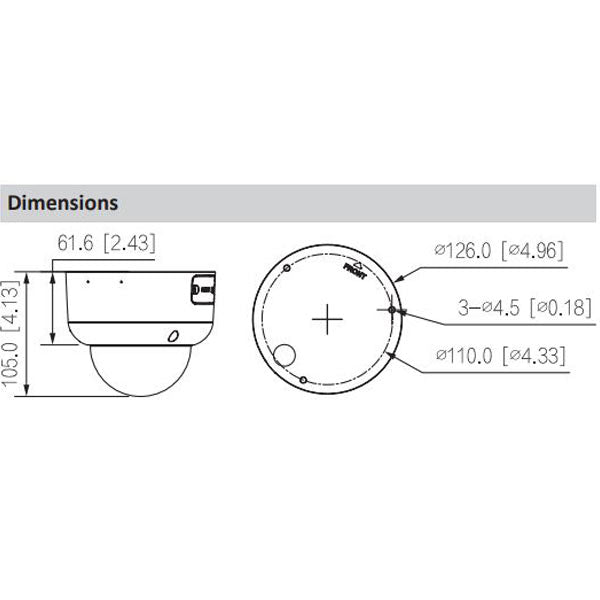

Dimensions 126.0 mm x 105.0 mm (ø4.13 in. x 4.96 in.)
Net Weight 0.72 kg (1.59 lb)
Gross Weight 0.93 kg (2.05 lb)
Analytics+ Functions
Smart Plan Schedule Enable Analytics+ functions depending on a user-defined  schedule. Allows the camera to switch analytic functions based on time.
Perimeter Protection • Detects human or vehicle violations using the following
methods:
Tripwire: a target crosses a defined line.
Intrusion: a target enters or exits a defined perimeter.
• Monitors a combination of nine (9) detection methods.
• Search and retrieve video based on target type.
Smart Motion Detection² • Differentiates between and classifies human and
vehicle objects.
• Filters false alarms due to leaves, lights, animals, and
other inconsequential objects.
• Extracts human or vehicle objects from recorded video
for quick target search and retrieval.
Intelligent Video System Functions
IVS triggers an alarm and takes a defined action for the following events:
Standard Features  Tampering with the camera.
• Error writing to an onboard Micro SD card.
• Error sending or receiving data over the network.
• Unauthorized access to the camera.
• IP Address Conflict
Premium Features
Motion An object moves through any part of the scene.
Scene Change A person or object moves the camera to change the scene or covers the camera to obscure the scene.


1. The DORI distance is a measure of the general proximity for a specific classification to help pinpoint the
right camera for your needs. The DORI distance is calculated based on sensor specifications and lab test
results according to EN 62676-4, the standard that defines the criteria for the Detect, Observe, Recognize
and Identify classifications.
2. Pair a Smart Motion Detection camera with a Dahua recording device that also offers SMD functionality to
take advantage of SMD alarm filtering and object classification when searching and playing back recorded
video.

Downloads:
Data Sheet
Quick Start Guide






WizSense Series devices combine Dahua's powerful Analytics+ with an intuitive and easy to use interface. WizSense devices offer Smart Motion Detection and Perimeter Protection functions that focus on human and vehicular images and ignore irrelevant images to capture important video while reducing false alarms. WizSense Series devices provide powerful general surveillance for small to medium size businesses at a sensible price.

System Overview
The Dahua 4 MP ePoE Night Color camera offers Analytics+ functions at the edge – performing complex real-time perimeter protection surveillance, Smart Motion Detection, and face detection. The Dahua Analytics+ algorithms significantly improve accuracy and reliability as compared to standard intelligent features. The camera is ideal for a host of diverse applications — Night Color Technology and Ultra Wide Dynamic Range allow the camera to operate in any lighting condition and the IP67 rating makes the camera suitable for the harshest environments.

Functions

Perimeter Protection
Dahua Analytics+ includes Tripwire and Intrusion functions that offer custom tripwires based on object type for automation in limited access areas. Perimeter Protection requires less pixels to detect an object to deliver improved accuracy and decreased false alarms due to lights, weather, trees, or animals.

Smart Motion Detection (SMD)
Smart Motion Detection, a component of Dahua's Analytics+ technology, improves alarm accuracy and decreases the number of false alarms. The advanced SMD algorithm analyzes a scene for human or vehicle motion, while filtering out other motion due to trees, leaves, animals, weather, and triggers an alarm when detected. SMD also saves time when searching recorded video by filtering false alarms and allowing quick retrieval of an alarm due to a person or vehicle.

For challenging low-light applications, Dahua's Starlight Ultra-low Light Technology offers best-in-class light sensitivity, capturing color details in low light conditions. The camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.

Night Color Technology
The Night Color camera incorporates white-light LEDs to offer full-color images in total darkness, as well as an effective visual deterrent. This technology provides smart illumination where the camera automatically activates the white-light illuminators when ambient light levels fall and adjusts exposure time and LED intensity to prevent overexposing the image

Enhanced Power over Ethernet (ePoE) Technology
Dahua's innovative ePoE technology offers a plug-and-play solution to transmit power and data over long distances via Ethernet or coaxial cables, reducing installation time and saving money. ePoE technology is a viable, cost-effective solution for extending transmission distances and for converting existing, coax-based analog systems into IP systems.

Ultra Wide Dynamic Range
For applications with both bright and low lighting conditions that change quickly, Ultra WDR (140 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.

Cybersecurity
Dahua network cameras are equipped with a series of key cybersecurity technologies including: security authentication and authorization, access control, trusted protection, encrypted transmission, and encrypted storage. These technologies improve the camera’s ability to prevent malicious access and to protect data.

Environmental
The camera complies with the IK10 Vandal Resistance impact rating making it capable of withstanding the equivalent of 5 kg (11.02 lbs) of force dropped from a height of 40 cm (15.75 in.). Subjected to rigorous dust and water immersion tests and certified to the IP67 Ingress Protection rating makes it suitable for demanding outdoor applications. The camera offers a wide voltage range, with a 30% input voltage tolerance, suitable for external applications with unstable power sources.
