*Discontinued* Dahua / IP / 4MP / Mini PTZ Camera / Varifocal / 2.8-12mm Lens / Outdoor / WDR / IP66 / Starlight / 15m IR / 5 Year Warranty / DH-1A404XBNR
- $334.78
-
- $334.78
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
DH-1A404XBNR

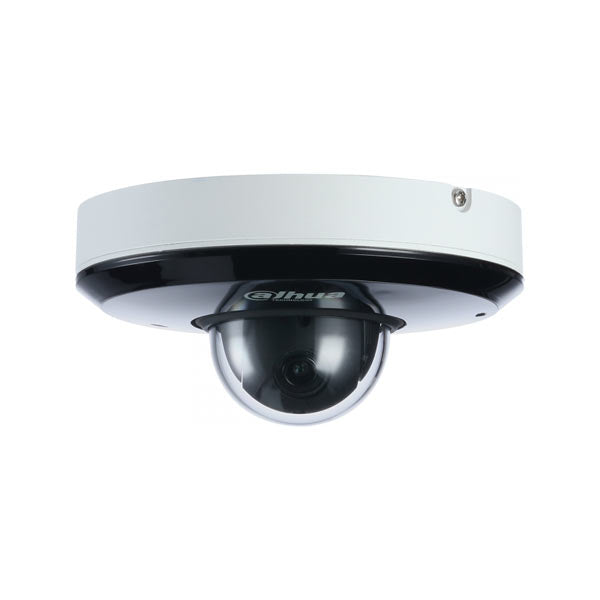

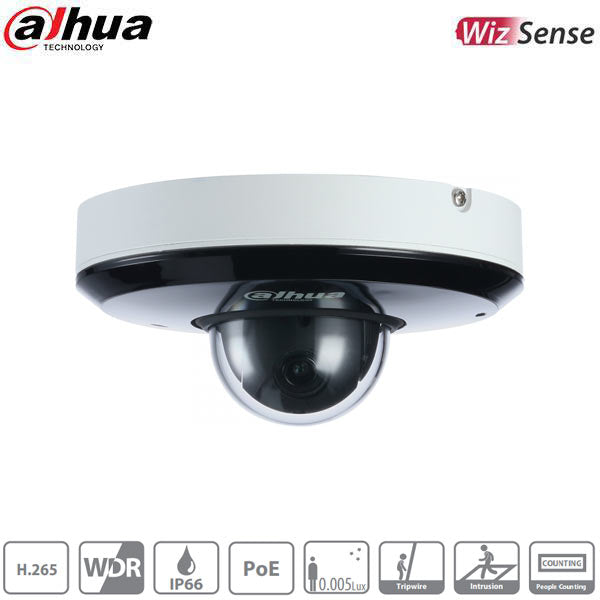

The Dahua IP 4 MP Starlight IR Mini PTZ Camera features a 1/2.8-in. STARVIS™ CMOS imager with a 4x optical zoom lens. The camera uses the Smart H.265+ video compression standard to improve encoding efficiency while preserving high-quality video. The PTZ camera uses a day/night mechanical IR cut filter and True WDR to deliver crystal clear images in challenging lighting conditions.
- 1/2.8-in. 2 MP STARVIS CMOS Sensor
- 4x Optical Zoom
- Starlight Technology for Low Light Sensitivity
- 1440p at 30 fps Maximum Resolution
- True Wide Dynamic Range (120 dB), 3D DNR
- Maximum IR Distance up to 15 m (49.20 ft)
- Triple-stream Encoding
- Smart H.265+ and Smart H.264+ Dual Codec
- Analytics+ Function – Perimeter Protection, People Counting, Smart Motion Detection, and Face Detection
- Intelligent Video System with Auto-tracking
- IP66 Ingress Protection
- Five-year Warranty (applies to products sold through an authorized Dahua Dealer.)
- Become a registered dealer of Dahua
- Call 1-800-878-6604 for Dealer Prices!
- $334.78
-
- $334.78
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
x
Technical Specifications
| Series | Lite |
| Body | PTZ |
| Image Sensor | 1/2.8-in. STARVIS™ CMOS |
| Resolution | 2 MP, 1920(H) x 1080(V) |
| Angle of View | Horizontal: 105.6° to 35.2° |
| Lens Type | Varifocal |
| Focal Length | 2.7 mm to 8.1 mm |
| Optical Zoom | 3x |
| Min. Illumination | Color: 0.005 lux at F1.8 0 lux at F1.8 (IR on) |
| Day/Night | Auto (ICR), Color, B/W |
| Max. IR Range | Up to 15 m (49.20 ft) |
| WDR | 120dB |
| Video Compression | Smart H.265+, H.265, Smart H.264+, H.264 |
| Audio Compression | G.711a, G.711Mu, AAC, G.726 |
| Frame Rate | 1080p or 720p at 30 fps |
| Multi-Streaming | 3 Streams |
| Pan/Tilt Range | Pan: 0° to 355° Tilt: 5° to 90° |
| Preset Speed | 300 Presets Pan: 80° /s Tilt: 40° /s |
| IVS | Motion, Tripwire, Intrusion, Scene Change, Abandoned/Missing Object |
| ONVIF | Yes |
| Audio In | One (1) Channel plus a Built-in Microphone |
| Audio Out | One (1) Channel |
| Memory Slot | Micro SD Slot, maximum 256 GB |
| IP Rating | 66 |
| IK Rating | 08 |
| Operating Temp | –30° C to +60° C (–22° F to +140° F), Less than 95% RH |
| Power | 12 VDC, 1.5 A or PoE (IEEE 802.3af) < 10.5 W |
| Camera | |
| Image Sensor | 1/2.8-in. STARVIS CMOS Sensor |
| Effective Pixels | 2560(H) x 1440(V), 4 MP |
| RAM/ROM | 1 GB / 4 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | 1/3 s to 1/30,000 s |
| Minimum Illumination | Color: 0.005 lux at F1.8 B/W: 0.0005 lux at F1.8 0 lux at F1.8 (IR on) |
| IR Distance | Distance up to 15.0 m (49.20 ft) |
| IR On/Off Control | Zoom Priority, Manual, Smart IR |
| IR LEDs | Three (3) |
| Lens | |
| Focal Length | 2.8 mm to 12 mm |
| Max Aperture | F1.8 to F2.7 |
| Angle of View | Horizontal: 96.9° to 31.6° Vertical: 51.4° to 17.8° Diagonal: 116.2° to 36.4° |
| Optical Zoom | 4x |
| Focus Control | Auto, Semi-automatic, Manual |
| IRIS Control | Automatic |
| Close Focus Distance | 0.20 m to 0.50 m (0.66 ft to 1.64 ft) |
| DORI¹ Distance - Detect - (8 ppf) | 147.0 m (482.28 ft) |
| DORI¹ Distance - Observe - (19 ppf) | 58.80 m (192.91 ft) |
| DORI¹ Distance - Recognize - (38 ppf) | 29.40 m (96.46 ft) |
| DORI¹ Distance - Identify - (76 ppf) | 14.70 m (48.23 ft) |
| PTZ | |
| Pan/Tilt Range | Pan: 0° to 355° Tilt: 5° to 90° |
| Manual Control Speed | Pan: 0.1° to 70° /s Tilt: 0.1° to 30° /s |
| Preset Speed | Pan: 80° /s Tilt: 40° /s |
| Presets | 300 |
| PTZ Mode | 8 Tours (up to 32 presets per tour) |
| Speed Setup | Human-oriented Focal Length / Speed Adaptation |
| Power up Action | Auto restore to previous PTZ and lens status after power failure |
| Idle Motion | Activate Preset, Scan, Tour, Pattern if there is no command in the specified period |
| Video | |
| Compression | Smart H.265+, H.265, Smart H.264+, H.264B, H.264M, H.264H, MJPEG (sub stream only) |
| Streaming Capability | Three (3) Streams |
| Resolution | 4 MP (2560 x 1440), 3 MP (2048 x 1536), 1080p (1920 x 1080), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), CIF (352 x 240) |
| Frame Rate | Main Stream: 4 MP at 30 fps Sub Stream 1: D1 or CIF at 30 fps Sub Stream 2: 720p, D1, or CIF at 30 fps |
| Bit Rate Control | CBR, VBR |
| Bit Rate |
H.265/H.264/MJPEG: 3 Kbps to 20480 Kbps |
| Day/Night | Auto (ICR), Color, B/W |
| Backlight Compensation | BLC, HLC, True WDR (120 dB) |
| White Balance | Auto, Indoor, Outdoor, Track, Manual, Sodium Lamp, Natural Light, Street Light |
| Gain Control | Auto, Manual |
| Noise Reduction | 2D/3D |
| Advanced Features | Motion Detection, Region of Interest, Electronic Image Stabilization (EIS), Defog |
| Digital Zoom | 16x |
| Flip | 180° |
| Privacy Masking | Up to 24 areas |
| Audio | |
| Compression | G.711a, G.711Mu, G.726, G.722.1, G.729, G.723, MPEG2-L2 |
| Network | |
| Ethernet | RJ-45 (10/100 Base-T) |
| Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x |
| Interoperability | ONVIF, CGI |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 20 Users |
| Edge Storage | FTP, P2P Micro SD Card Slot, up to 256 GB |
| Web Viewer | IE, Chrome, Firefox, Safari |
| Management Software | Smart PSS, DSS |
| Mobile Operating System | IOS, Android |
| Cybersecurity | Video Encryption, Firmware Encryption, Configuration Encryption, Digest, WSSE, Account Lockout, Security Logs, IP/MAC Filtering, Generating and Importing X.509 Certification, Syslog, HTTPS, 802.1x, Trusted Boot, Trusted Execution, Trusted Upgrade |
| Certifications | |
| Electromagnetic Compatibility (EMC) |
EN55032, EN55024, EN50130-4 47 CFR FCC Part 15 Subpart B ANSI C63.4- 2014 |
| Interface | |
| Audio | Input: One (1) Channel Output: One (1) Channel |
| Electrical | |
| Power Supply | 12 VDC, 1.5 A (±15%) or PoE (IEEE 802.3af, Class 0) |
| Power Consumption | Basic: 3 W Maximum: 8.5 W with IR on |
| Environmental | |
| Operating Conditions | –30° C to 60° C (–22° F to +140° F), Less than 95% RH |
| Ingress Protection | IP66 |
| Vandal Resistance | IK08 |
| Surge Protection | TVS 6000V |
| Construction | |
| Casing | Metal |
| Dimensions | ø128.0 mm x 65.40 mm (ø5.04 in. x 2.57 in.) |
| Net Weight | 0.49 kg (1.08 lb) |
| Gross Weight | 0.70 kg (1.54 lb) |
1. The DORI distance is a measure of the general proximity for a specific classification to help pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specifications and lab test results according to EN 62676-4, the standard that defines the criteria for the Detect, Observe, Recognize and Identify classifications.
Downloads
WizSense Series devices combine Dahua's powerful Analytics+ with an intuitive and easy to use interface. WizSense devices offer Smart Motion Detection and Perimeter Protection functions that focus on human and vehicular images and ignore irrelevant images to capture important video while reducing false alarms. WizSense Series devices provide powerful general surveillance for small to medium size businesses at a sensible price
Functions
Perimeter Protection
Dahua Analytics+ includes Tripwire and Intrusion functions that offer custom tripwires based on object type for automation in limited access areas. Perimeter Protection requires less pixels to detect an object to deliver improved accuracy and decreased false alarms due to lights, weather, trees, or animals.
People Counting
The camera uses complex real-time people counting algorithms to deliver accurate flow statistics from two distinct people counting functions, Line Crossing and Regional. The line crossing function counts the number of people crossing a defined line, and the regional function counts the number of people in a distinct, user-defined area. People counting is ideal for measuring the number of customers entering or exiting a location and to monitor groups of people in a distinct location.
Smart Motion Detection
Smart Motion Detection, a component of Dahua's Analytics+ technology, improves alarm accuracy and decreases the number of false alarms. The advanced SMD algorithm analyzes a scene for human or vehicle motion, while filtering out other motion due to trees, leaves, animals, weather, and triggers an alarm when detected. SMD also saves time when searching recorded video by filtering false alarms and allowing quick retrieval of an alarm due to a person or vehicle.
Starlight Technology
For challenging low-light applications, Dahua's Starlight Ultra-low Light Technology offers best-in-class light sensitivity, capturing color details in low light conditions. The camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.
True Wide Dynamic Range
The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, True WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.
Environmental
Dahua cameras operate in extreme temperature environments, rated for use in temperatures from –30° C to +60° C (–22 °F to +140°F) with 95% humidity. Subjected to rigorous dust and water immersion tests and certified to the IP66 Ingress Protection rating makes it suitable for demanding outdoor applications.
Smart H.265+
Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ technology reduces bit rate and storage requirements by up to 70% when compared to standard H.265 video compression.
Cyber Security
Dahua network cameras are equipped with a series of key cybersecurity technologies including: security authentication and authorization, access control, trusted protection, encrypted transmission, and encrypted storage. These technologies improve the camera’s ability to prevent malicious access and to protect data.
