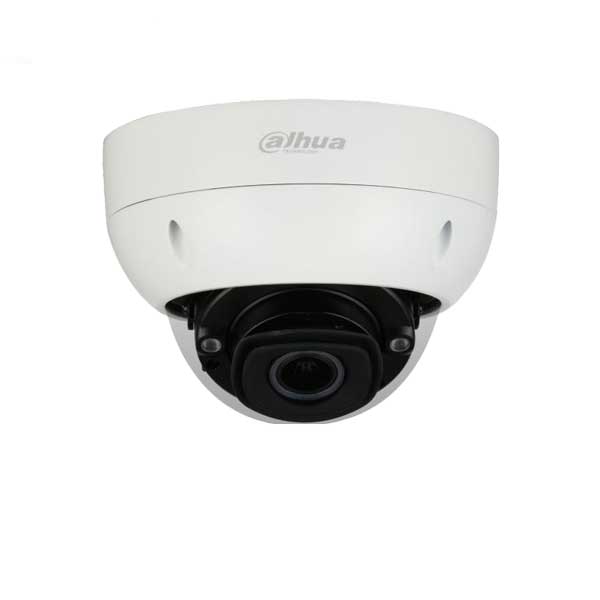

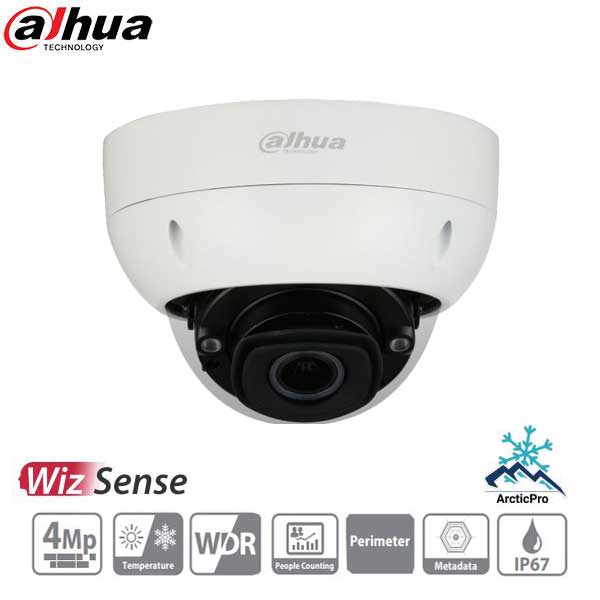

*Discontinued* Dahua / IP / 4MP / Network Dome Camera / Motorized Varifocal / 2.7-12mm Lens / Analytics+ / WDR / 40m IR / IP67 / IK10 / ePoE / DH-IPC-HDBW7442HN-ZFR
- $1,463.38
-
- $1,463.38
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
DH-IPC-HDBW7442HN-ZFR
The Dahua 4 MP ePoE camera offers Analytics+ functions at the edge – performing complex real-time people counting and perimeter protection surveillance. The Dahua Analytics+ algorithms significantly improve accuracy and reliability as compared to standard intelligent features. The camera is ideal for a host of diverse applications — Ultra Wide Dynamic Range and Smart IR technologies allow the camera to operate in any lighting condition and the IP67 and IK10 rating make the camera suitable for the harshest environments.
- 1/1.8-in. 4 MP Progressive-scan CMOS Sensor
- Five-stream Encoding
- Smart H.265+ and Smart H.264+ Dual Codec
- 4 MP (2688 x 1520) at 60 fps Maximum Resolution
- 2.7 mm to 12 mm Motorized Vari-focal Lens
- Starlight Technology for Ultra Low-light Applications
- Enhanced Power and Data Transmission Distances (ePoE)
- Analytics+ Functions — People Counting, Perimeter Protection, and Image Attribute Extraction
- Ultra Wide Dynamic Range (140 dB) and Day/Night IR Cut Filter
- ArcticPro Series Camera - Operational down to –40° C (–40° F)
- IP67 Ingress Protection and IK10 Vandal Resistance
- 12 VDC Power Output (maximum current: 165 mA)
- Become a registered dealer of Dahua
- Call 1-800-878-6604 for Dealer Prices!
- $1,463.38
-
- $1,463.38
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
x
Technical Specification
| Camera | |
| Image Sensor | 1/3-in. 4 MP CMOS |
| Effective Pixels | 2688(H) x 1520(V) |
| RAM/ROM | 2 GB / 16 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto, Manual, 1/3 s to 1/100,000 s |
| Minimum Illumination | Color: 0.001 lux at F1.2 (1/3 s, 30 IRE) 0 lux at F1.2 (with IR on) |
| IR Distance | Distance up to 40.0 m (131.23 ft) |
| IR On/Off Control | Auto, Manual |
| IR LEDs | Three (3) |
| Lens | |
| Lens Type | Electric Zoom |
| Mount Type | Module Interface |
| Focal Length | 2.7 mm to 12 mm |
| Maximum Aperture | F1.2 |
| Angle of View | Horizontal: 111° to 47° Vertical: 59° to 26° Diagonal: 135° to 51° |
| Optical Zoom | 4x |
| Aperture Control | Auto |
| Close Focus Distance | Wide: 1.0 m (3.29 ft) Tele: 2.50 m (8.20 ft) |
| DORI Distance - Focus - Wide - Detect | 60.10 m (187.18 ft) |
| DORI Distance - Focus - Wide - Observe | 24.0 m (78.74 ft) |
| DORI Distance - Focus - Wide - Recognize | 12.0 m (39.37 ft) |
| DORI Distance - Focus - Wide - Identify | 6.0 m (19.69 ft) |
| DORI Distance - Focus - Telephoto - Detect | 128.60 m (421.92 ft) |
| DORI Distance - Focus - Telephoto - Observe | 51.40 m (168.64 ft) |
| DORI Distance - Focus - Telephoto - Recognize | 25.70 m (84.32 ft) |
| DORI Distance - Focus - Telephoto - Identify | 12.80 m (41.99 ft) |
| Installation Angle | |
| Range | Pan: 0˚ to 355˚; Tilt: 0˚ to 80˚; Rotation: 0˚ to 355˚ |
| Video | |
| Compression | Smart H.265+, H.265, Smart H.264+, H.264, H.264B, H.264H, MJPEG (sub stream only) |
| Streaming Capability | Five (5) Streams |
| Resolution | 4 MP (2688 x 1520), 3 MP (2304 x 1296), 1080p (1920 x 1080), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), VGA (640 x 480), CIF (352 x 240) |
| Frame Rate | Main Stream: 4 MP (2688 x 1520) at 60 fps Sub Stream 1: 704 x 576 at 30 fps Sub Stream 2: 1080p (1920 x 1080) at 30 fps Sub Stream 3: 1080p (1920 x 1080) at 30 fps Sub Stream 4: 704 x 576 at 30 fps |
| Bit Rate Control | CBR/VBR |
| Bit Rate | H.264: 32 Kbps to 10240 Kbps H.265: 12 Kbps to 10240 Kbps |
| Day/Night | Auto (ICR), Color, B/W |
| BLC Mode | BLC, HLC, Ultra WDR (140 dB), SSA |
| White Balance | Auto, Natural, Street Lamp, Outdoor, Manual, Regional Custom |
| Gain Control | Auto, Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | Off, On (4 Zones, Rectangular) |
| Region of Interest | Off, On (4 Zones) |
| Advanced Features | Electronic Image Stabilization (EIS), Smart IR, Defog |
| Flip | 0°, 90°, 180°, 270° (supports 90° and 270° with 1080p resolution or lower) |
| Mirror | Off, On |
| Privacy Masking | Off, On (4 Areas, Rectangular) |
| Audio | |
| Compression | G.711a, G.711Mu, AAC, G.726 |
| Network | |
| Ethernet | RJ-45 (10/100 Base-T) |
| Protocol | IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, 802.1x, SNMP |
| Interoperability | ONVIF Profile S and G, CGI, P2P, RTMP |
| Auto Register | Support |
| Maximum User Access | 20 Users |
| Edge Storage | Network Attached Storage (NAS) FTP, SFTP, Micro SD Card Slot, maximum 256 GB |
| Web Viewer | IE (Version 9 and higher), Chrome (Version 42 and higher), Firefox (Version 48.0.2 or higher) |
| Management Software | SmartPSS, DSS Pro, IVSS |
| Mobile Operating System | IOS, Android |
| Interface | |
| Video | One (1) Channel CVBS, BNC (for adjustment only) |
| Audio | Input: One (1) Channel Output: One (1) Channel |
| Alarm | Input: Three (3) Channels (5 mA, 5 VDC) Output: Two (2) Channels 1000 mA, 30 VDC 500 mA, 50 VAC |
| RS485 | One (1) Port (Bit rate: 1200 bps to 115200 bps) |
| Electrical | |
| Power Supply | 12 VDC, 24 VAC, or PoE (IEEE 802.3af, Class 0) |
| Power Consumption | 12 VDC Standard: 5.4 W with IR and ICR ON: 16.7 W 24 VAC Standard: 5.0 W with IR and ICR ON: 15.7 W PoE Standard: 4.9 W with IR and ICR ON: 15.6 W |
| Power Output | 12 VDC, 165 mA Maximum Current |
| Construction | |
| Casing | Metal and Plastic |
| Dimensions - Camera | 157.90 mm x 129.10 mm (6.22 in. x 5.08 in.) |
| Dimensions - Package | 212.0 mm x 212.0 mm x 200.0 mm (8.35 in. x 8.35 in. x 7.87 in.) |
| Certifications | UL, EN, CAN/CSA, FCC CFR, IP67, IK10 |
| Manufacturer's Warranty |
0.663 kg (1.46 lb) |
| Analytics+ Functions | |
| People Counting | • Delivers accurate flow statistics from the following methods: Line Crossing: counts a person as they cross a threshold in a defined direction. Region: counts the number of people in a defined area. • Produces daily, monthly, and annual reports for both methods. |
| Perimeter Protection | Detects human or vehicle violations using the following methods: Tripwire: a target crosses a defined line. Intrusion: a target enters or exits a defined perimeter. |
| Smart Motion Detection² | • Distinguishes between motor vehicle, non-motor vehicle, and human targets. • Optimizes images and takes a snapshot of each target. • Extracts attributes specific to a target: Vehicles: make, color, type Human: gender, face attributes, clothing colors • Offers Privacy Protection that blurs the face or the entire body of a person in a defined area. |
Downloads:
Functions:
People Counting
The camera uses complex real-time people counting algorithms to deliver accurate flow statistics from two distinct people counting functions, Line Crossing and Regional. The line crossing function counts the number of people crossing a defined line, and the regional function counts the number of people in a distinct, user-defined area. People counting is ideal for measuring the number of customers entering or exiting a location and to monitor groups of people in a distinct location.
Perimeter Protection
Dahua Analytics+ includes Tripwire and Intrusion functions that offer custom tripwires based on object type for automation in limited access areas. Perimeter Protection requires less pixels to detect an object to deliver improved accuracy and decreased false alarms due to lights, weather, trees, or animals.
Image Attribute Extraction
Analytics+ allows the camera to classify images in a video stream and then extract and store attributes and features for a specific image. The camera can distinguish between vehicle and human objects, track the object in real-time, and extract attributes, such as vehicle type, color, and make; or gender, clothing color, and facial attributes for people. The function also offers Privacy Protection to blur the face or the body of a person within a defined area.
ArcticPro
The Dahua ArcticPro Series of extreme-environment cameras combine temperature-tolerant components, a waterproof enclosure, and an integrated heater to ensure flawless operation in temperatures as low as –40° C (–40° F). For applications that demand high-resolution video with advanced features in extremely cold environments, the Dahua ArcticPro Series offers a camera to satisfy the most demanding requirements.
Cybersecurity
Dahua network cameras are equipped with a series of key cybersecurity technologies including: security authentication and authorization, access control, trusted protection, encrypted transmission, and encrypted storage. These technologies improve the camera’s ability to prevent malicious access and to protect data.
Environmental
The camera complies with the IK10 impact rating making it capable of withstanding the equivalent of 5 kg (11.02 lbs) of force dropped from a height of 40 cm (15.75 in.). Subjected and certified to rigorous dust and water immersion tests, the IP67 rating makes it suitable for demanding outdoor applications.
