*Discontinued* Dahua / IP / 4MP / Network PTZ Camera / Analytics+ / 45x Zoom / 3.95-177.75mm Lens / WDR / IP67 / IK10/ 250m IR / DH-6CE445XANR
Out of Stock
SKU:
DH-6CE445XANR
NSID:
28144
- $1,781.98
-
- $1,781.98
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
DH-6CE445XANR

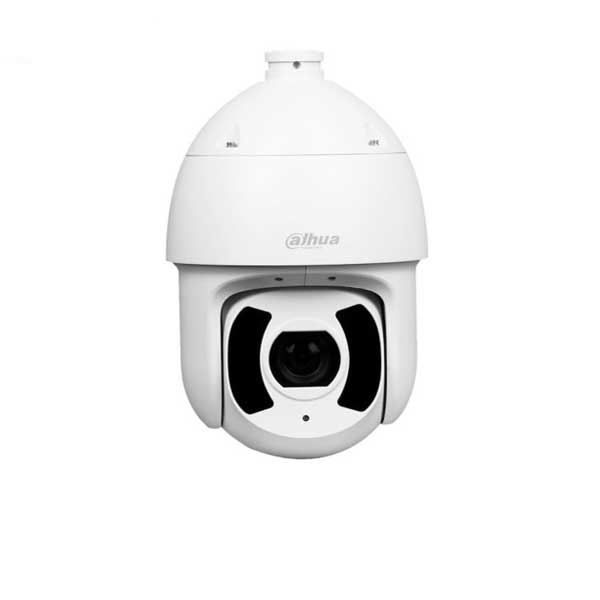

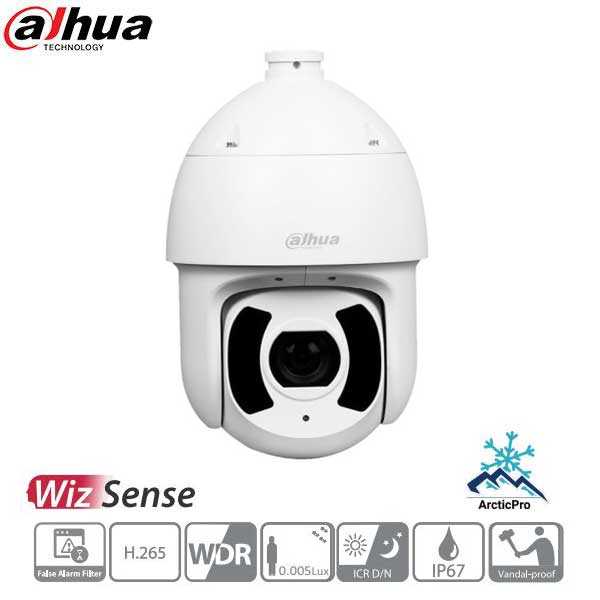

The 4 MP Starlight PTZ Dome camera features offers Analytics+ functions at the edge – performing complex real-time perimeter protection surveillance. The Dahua Analytics+ algorithms significantly improve accuracy and reliability as compared to standard intelligent features. The camera features a 1/2.8-in. CMOS STARVIS™ imager with a 45x optical zoom lens, and provides an all-in-one solution for capturing long-distance video surveillance for outdoor applications. The camera uses the H.265 video compression standard to improve encoding efficiency while preserving high-quality video. The PTZ camera is equipped with quick and accurate pan/tilt/zoom control and True WDR for applications with direct sunlight or glare.
Features
- 1/2.8-in. 4 MP Progressive-scan CMOS STARVIS™ Sensor
- Powerful 45x Optical Zoom
- Smart H.265+ and Smart H.264+ Dual Codec
- 4 MP at 30 fps Maximum Resolution
- True Wide Dynamic Range
- Starlight Technology for Ultra-low Light Sensitivity
- Analytics+ Functions — Perimeter Protection
- Intelligent Video System (IVS) with Auto-tracking
- Maximum IR distance up to 250.0 m (820.21 ft)
- ArcticPro Series Camera - Operational down to –40° C (–40° F)
- IP67 Ingress Protection and IK10 Vandal Resistance Rating
- Become a registered dealer of Dahua
- Call 1-800-878-6604 for Dealer Prices!
- $1,781.98
-
- $1,781.98
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xSpecifications
| Camera | |
| Image Sensor | 1/2.8-in. STARVIS™ CMOS |
| Effective Pixels | 2560(H) x 1440(V), 4 MP |
| RAM/ROM | 1024 MB / 128 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | 1/1 s to 1/30,000 s |
| Minimum Illumination | Color: 0.005 lux at F1.6 B/W: 0.0005 lux at F1.6 0 lux at F1.6 with IR on |
| IR Distance | Distance up to 250.0 m (820.21 ft) |
| IR On/Off Control | Zoom Priority, Auto, Manual |
| IR LEDs | Six (6) |
| Lens | |
| Focal Length | 3.95 mm to 177.75 mm |
| Max. Aperture | F1.6 to F4.95 |
| Angle of View | Horizontal: 1.8° to 70.3° Vertical: 1° to 37° Diagonal: 2° to 69.3° |
| Optical Zoom | 45x |
| Focus Control | Auto, Manual |
| Close Focus Distance | 100 mm to 3000 mm (3.94 in. x 118.11 in.) |
| DORI Distance | |
| Detect | 3176 m (10,420 ft) |
| Observe | 1271 m (4170 ft) |
| Recognize | 635 m (2083 ft) |
| Identify | 318 m (1043 ft) |
| PTZ | |
| Pan/Tilt Range | Pan: 0° to 360° endless Tilt: –20° to 90°, Auto Flip 180° |
| Manual Control Speed | Pan: 0.1° to 260° /s Tilt: 0.1° to 120° /s |
| Preset Speed | Pan: 300° /s Tilt: 200° /s |
| Presets | 300 |
| PTZ Mode | 5 Pattern, 8 Tour, Auto Pan, Auto Scan |
| Speed Setup | Human-oriented Focal Length, Speed Adaptation |
| Power up Action | Auto restore to previous PTZ and lens status after power failure |
| Idle Motion | Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period |
| Protocol | DH-SD, Pelco-P/D (Auto recognition) |
| Video | |
| Compression | Smart H.265+, H.265, Smart H.264+, H.264, MJPEG (sub stream only) |
| Streaming Capability | Three (3) Streams |
| Resolution | 4 MP (2560 x 1440), 3 MP (2048 x 1536), 1080p (1920 x 1080), 1280 x 960, 720p (1280 x 720), D1 (704 x 480), CIF (352 x 240) |
| Frame Rate | Main Stream: 4 MP, 3 MP, 1080p, 1.3 MP, or 720p at 30 fps Sub Stream 1: D1, CIF at 30 fps Sub Stream 2: 1080p or 720p at 30 fps |
| Bit Rate Control | CBR, VBR |
| Bit Rate | H.265/H.264: 3 Kbps to 20480 Kbps |
| Day/Night | Auto (ICR), Color, B/W |
| Backlight Compensation | BLC, HLC, True WDR (120 dB) |
| White Balance | Auto, Indoor, Outdoor, ATW, Manual, Sodium Lamp, Natural, Street Lamp |
| Gain Control | Auto, Manual, Gain Priority, Shutter Priority, Aperture Priority |
| Noise Reduction | Ultra DNR (2D/3D) |
| Advanced Features | Motion Detection, Region of Interest, Electronic Image Stabilization (EIS), Defog |
| Digital Zoom | 16x |
| Flip | 180° |
| Privacy Masking | Up to 24 areas |
| Audio | |
| Compression | G.711a, G.711Mu, G.722, G.726, G.729, MPEG2-L2 |
| Network | |
| Ethernet | RJ-45 (10 Base-T/100 Base-TX) |
| Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x |
| Interoperability | ONVIF Profile S and G, CGI |
| Streaming Method | Unicast / Multicast |
| Maximum User Access | 20 users |
| Edge Storage | NAS (Network Attached Storage) Local PC for instant recording Micro SD Card Slot, maximum 256 GB |
| Web Viewer | IE 10, Firefox |
| Management Software | Smart PSS, DSS, DMSS |
| Mobile Operating System | IOS, Android |
| Cybersecurity | Video Encryption, Firmware Encryption, Configuration Encryption, Digest, WSSE, Account Lockout, Security Logs, IP/MAC Filtering, Generating and Importing X.509 Certification, Syslog, HTTPS, 802.1x, Trusted Boot, Trusted Execution, Trusted Upgrade |
| Interface | |
| Audio | Input: One (1) Channel Output: One (1) Channel |
| RS485 | One (1) |
| Alarm | Input: Seven (7) Channels Output: Two (2) Channels |
| Electrical | |
| Power Supply | PoE+ (IEEE802.3at) or one of the following power inputs. Refer to the product label for specific power information: 24 VAC (±25%), 3 A 24 VDC (25%), 3 A |
| Power Consumption | 13 W, 26 W (IR On, Heater On) |
| Analytics+ Functions | |
| Perimeter Protection | • Detects human or vehicle violations using the following methods: Tripwire: a target crosses a defined line. Intrusion: a target enters or exits a defined perimeter |
| Video Structuralization | • Distinguishes between motor vehicle, non-motor vehicle, and human targets. • Optimizes images and takes a snapshot of each target. |
| Construction | |
| Casing | Metal |
| Dimensions | 209.0 mm x 337.4 mm (8.23 in. x 13.28 in.) |
| Certifications | EN, FCC, ANSI, IP67, IK10 |
| Manufacturer's Warranty | 5 Years |
