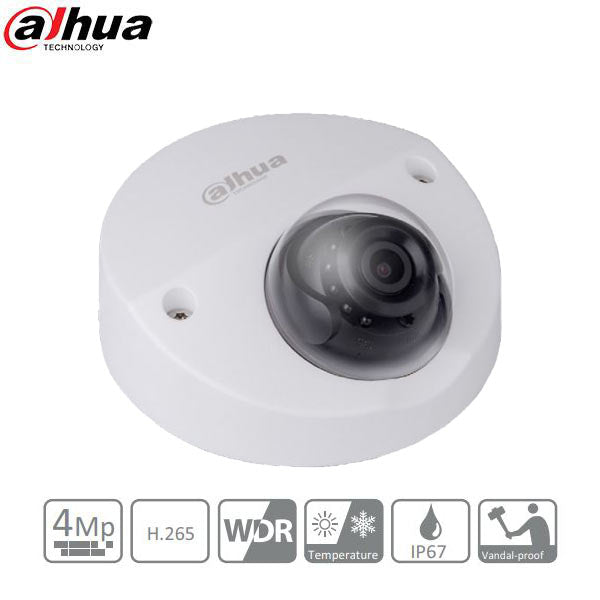

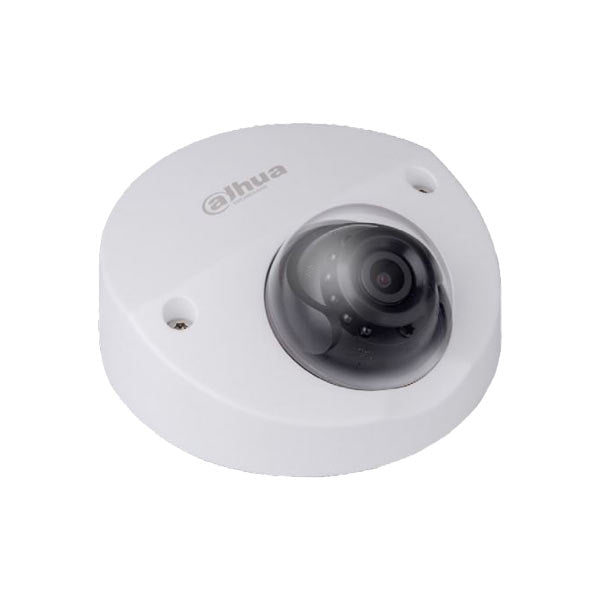

*Discontinued* Dahua / IP / 4MP / Wedge Camera / Fixed / 2.8mm Lens / WDR / IP67 / IK10 / 20m IR / M12 D-Coded / DH-IPC-HDBW4431FN-M12
- $430.18
-
- $430.18
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
DH-IPC-HDBW4431FN-M12
Dahua's Mobile series of cameras offers high-resolution video and cutting-edge technology in a compact and accessible package. The cameras feature H.265 video compression, reducing bandwidth and storage requirements without sacrificing video quality. The camera series incorporates True Wide Dynamic Range, and Smart IR, features typically found on high-end surveillance systems. This series provides a rugged enclosure rated to IP67 Ingress Protection to protect your security investment.
- 1/3 in. 4 MP Progressive-scan CMOS Sensor
- Triple-stream Encoding
- Smart H.265+ and Smart H.264+ Dual Codec
- 4 MP (2688 x 1520) at 30 fps
- 2.8 mm Fixed Lens
- Smart Detection Support
- True Wide Dynamic Range (120 dB) and True Day/Night
- Built-in Microphone
- Maximum IR LED Distance 20 m (65 ft)
- IP67 Ingress Protection and IK10 Vandal Resistance
- Become a registered dealer of Dahua
- Call 1-800-878-6604 for Dealer Prices!
- $430.18
-
- $430.18
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
x
Technical Specification
| Camera | |
| Image Sensor | 1/3-in. 4 MP Progressive Scan CMOS |
| Effective Pixels | 2688(H) x 1520(V) |
| RAM/ROM | 512 MB / 32 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto, Manual, 1/3 s to 1/100,000 s |
| Minimum Illumination | Color: 0.08 lux at F2.0, 0 lux at F2.0 with IR on |
| S/N Ratio | More than 50 dB |
| IR Distance | Distance up to 20.0 m (65.60 ft) |
| IR On/Off Control | Auto, Manual |
| IR LEDs | 10 |
| Lens | |
| Lens Type | Fixed |
| Mount Type | Board-in |
| Focal Length | 2.8 mm |
| Maximum Aperture | F2.0 |
| Angle of View | Horizontal: 104° Vertical: 57° |
| Focus Control | Fixed |
| Pan/Tilt/Rotation | |
| Range | Pan: 0˚ to 60˚ Tilt: 0˚ to 80˚ Rotation: 0˚ to 360˚ |
| Video | |
| Compression | Smart H.265+, H.265, Smart H.264+, H.264, MJPEG |
| Streaming Capability | Three (3) Streams |
| Resolution | 4 MP (2688 x 1520) 3 MP (2304 x 1296) 1080p (1920 x 1080) 1.3 MP (1280 x 960) 720p (1280 x 720) D1 (704 x 480) VGA (640 x 480) CIF (352 x 240) |
| Frame Rate | Main Stream: 4 MP at 30 fps Sub Stream: D1 at 30 fps Third Stream: 720p at 30 fps |
| Bit Rate Control | CBR, VBR |
| Gain Control | Auto, Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | Off, On (4 Zone, Rectangle) |
| Region of Interest | Off, On (4 Zone) |
| Smart IR | Support |
| Digital Zoom | 16x |
| Flip | 0°, 90°, 180°, 270° |
| Mirror | Off, On |
| Privacy Masking | Off, On (4 Area, Rectangle) |
| Audio | |
| Compression | G.711a, G.711Mu, G.726 |
| Audio Interface | Built-in Microphone |
| Network | |
| Ethernet | M12 D-coded Connector (10/100 Base-T) |
| Protocol | HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP |
| Interoperability | ONVIF, PSIA, CGI |
| Streaming Method | Unicast, Multicast |
| Maximum User Access | 10 Users / 20 Users |
| Edge Storage | NAS Local PC for Instant Recording MicroSD Card Slot, maximum 128 GB |
| Web Viewer | IE, Firefox, Safari |
| Management Software | Smart PSS, DSS |
| Mobile Operating System | IOS, Android |
| Cybersecurity | Video Encryption, Firmware Encryption, Configuration Encryption, Digest, WSSE, Account Lockout, Security Logs, IP/MAC Filtering, Generating and Importing X.509 Certification, Syslog, HTTPS, 802.1x, Trusted Boot, Trusted Execution, Trusted Upgrade |
| Electrical | |
| Power Supply | PoE (802.3af, Class 0) |
| Power Consumption | < 4.5 W |
| Construction | |
| Casing | Metal |
| Dimensions | 106.0 mm x 50.30 mm (4.17 in. x 1.98 in.) |
| Certifications | EN, EL, FCC, IP67, IK10 |
| Manufacturer's Warranty |
5 Years |
Downloads:
Functions
Wide Dynamic Range
For applications with both bright and low-light conditions that change quickly, True WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.
High Efficiency Video Coding (H.265)
The H.265 (ITU-T VCEG) video compression standard offers double the data compression ratio at the same level of video quality, or substantially improved video quality at the same bit rate, as compared to older video compression technologies. H.265 offers such impressive compression by expanding the pattern comparison and difference-coding, improving motion vector prediction and motion region merging, and incorporating an additional filtering step called sample-adaptive offset filtering.
Smart H.265+
Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ technology reduces bit rate and storage requirements by up to 70% when compared to standard H.265 video compression.
Smart IR
With IR illumination, detailed images can be captured in low light or total darkness. The camera’s Smart IR technology adjusts the intensity of the camera’s infrared LEDs to compensate for the distance of an object. Smart IR technology prevents IR LEDs from whitening out images as they come closer to the camera.
Cybersecurity
Dahua network cameras are equipped with a series of key cybersecurity technologies including: security authentication and authorization, access control, trusted protection, encrypted transmission, and encrypted storage. These technologies improve the camera’s ability to prevent malicious access and to protect data.
Environmental
With a temperature range of -30 °C to +60 °C (-22 °F to +140 °F), the camera is designed for extreme temperature environments. The camera complies with the IK10 Vandal Resistance impact rating making it capable of withstanding the equivalent of 5 kg (11.02 lbs) of force dropped from a height of 40 cm (15.75 in.). Subjected and certified to rigorous dust and water immersion tests, the IP67 rating makes it suitable for demanding outdoor applications. Protection Supporting ±30% input voltage tolerance, this camera suits even the most unstable conditions for outdoor applications. Its 6KV lightning rating provides protection against the camera and its structure from the effects of lightning.
