*Discontinued* Dahua / IP / Intercom Outdoor Station / 1.3MP / Video Doorbell / Fixed / 4mm Lens / Outdoor / IP54 / IK07 / Active Alarm / Built-in Microphone & Speaker / 5 Year Warranty / DH-VTO1210C-X-S
Out of Stock
SKU:
DH-VTO1210C-X-S
NSID:
28100
- $599.38
-
- $599.38
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
DH-VTO1210C-X-S

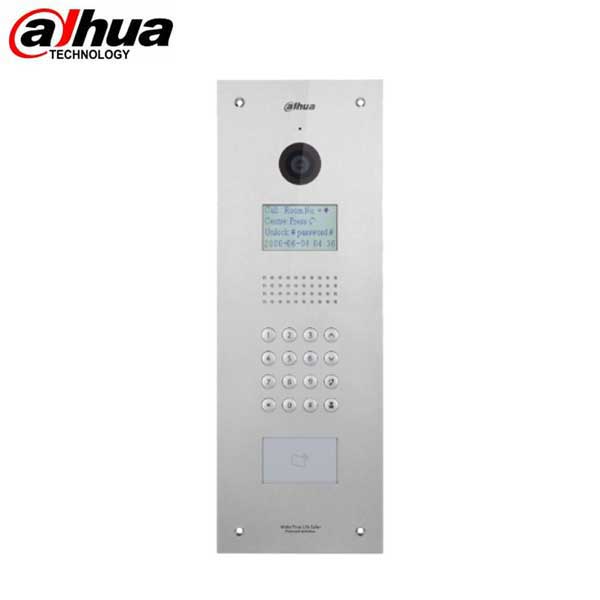

The VTO1210C-X-S Outdoor Station enables tenants to view and talk with visitors and remotely unlock doors from an in-unit color indoor monitor. Each outdoor station includes a built-in 13.56 MHz MIFARE® card access reader to allow tenants to securely gain access through exterior doors. The outdoor station is designed for multi-tenant applications up to 200 units.
- 1.3 MP Wide Angle Camera with Night Vision
- Built-in Microphone with Two-way Talk
- Connect Outdoor Stations to an NVR to Record Call Sessions from the
Indoor Monitor - Performs Door Unlock by Card
- Supports Secure Password Entry
- Stainless Steel Panel can be Surface- or Flush-mounted
- IP54 Ingress Protection and IK07 Vandal Resistance
- Compatible with: VTOB103, VTOB110, VTH1550CH-S, VTNS1060A, ADS-110DL-19-1
- Five-year Warranty (for products sold through authorized Dahua Dealers)
- Become a registered dealer of Dahua
- Call 1-800-878-6604 for Dealer Prices!
- $599.38
-
- $599.38
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
x
| System | |
| Main Processor | Embedded Micro Processor |
| Operating System | Embedded Linux |
| Video | |
| Image Sensor |
1/2.8" 2MP CMOS high definition low illumination colorful |
| Lens | 4 mm |
| Angle of View | Horizontal: 75° Vertical: 95° |
| Day/Night | Color Image |
|
Audio |
|
| Input | Omnidirectional Microphone |
| Output | Built-in Speaker |
| Bi-directional Talk | Support for Dual-way Bi-directional Talk |
|
Display |
|
| LCD Dimensions | 3-in. STN Screen |
| Resolution | 128 x 64 |
|
Operation |
|
| Input |
Mechanical Buttons |
| Reader | MIFARE® Card |
| Detection Distance | 0.60 m (1.97 ft) |
|
Interface |
|
| Door Control | One (1) |
| Alarm |
Two (2) Channels: One (1) Channel, Unlock Button One (1) Channel, Feedback |
| RS485 | One (1) Port |
| Network | |
| Ethernet |
10/100 Mbps |
| Network Protocol | TCP/IP |
| Video Compression | H.264 |
| Audio Compression | G.711 |
| Cybersecurity | Video Encryption, Firmware Encryption, Configuration Encryption, Digest, WSSE, Account Lockout, Security Logs, IP/MAC Filtering, Generating and Importing X.509 Certification, Syslog, HTTPS, 802.1x, Trusted Boot, Trusted Execution, Trusted Upgrade |
| Certifications | |
| Electromagnetic Compatibility (EMC) | FCC CFR 47 Part 15 subpart B ANSI C63.4 - 2009 EN 55022:2010, EN 55024:2010, EN 50130-4:2011, EN 61000-6-3:2007, EN 61000-3-2:2006+A1:2009 EN 61000-3-3:2008, IEC 61000-4-2:2008, IEC 61000-4-3:2010, IEC 61000-4-4:2012, IEC 61000-4-5:2005, IEC 61000-4-6:2008, IEC 61000-4-8:2009, IEC 61000-4-11:2004 |
| Electrical | |
| Power | 12 VDC; Requires a separate 12 VDC power supply |
| Power Consumption | Standby: ≤ 1 W Operation: ≤ 10 W |
| Environmental | |
| Operating Temperature | -40° C to +60° C (-40° F to +140° F) |
| Operating Humidity | 10% to 95%, Relative |
| Ingress Protection | IP54 |
| Vandal Resistance | IK07 |
| Construction | |
| Material | Stainless Steel |
| Dimensions | 406.0 mm x 143.0 mm x 42.0 mm (16.0 in. x 5.63 in. x 1.65 in.) |
| Installation | Surface- or Flush-mount |
