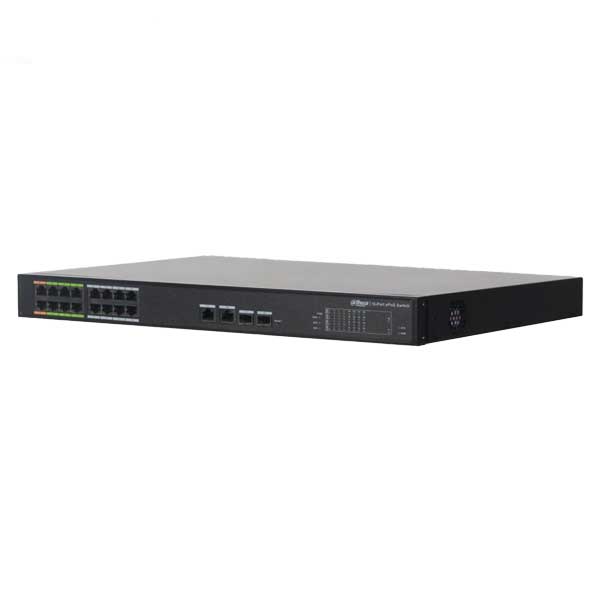

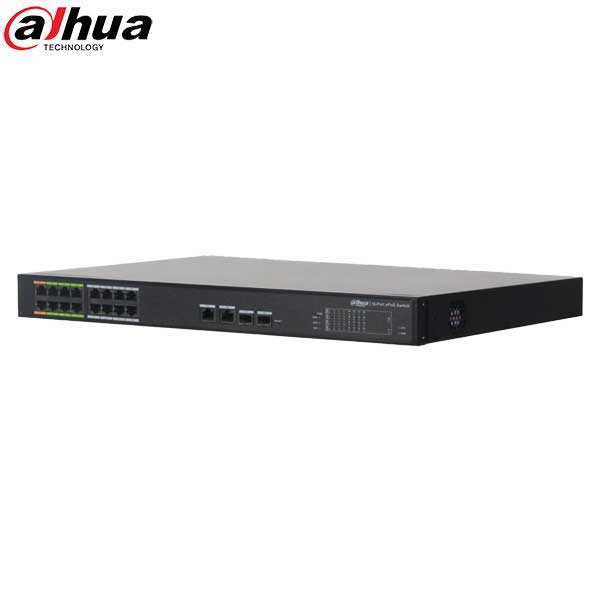

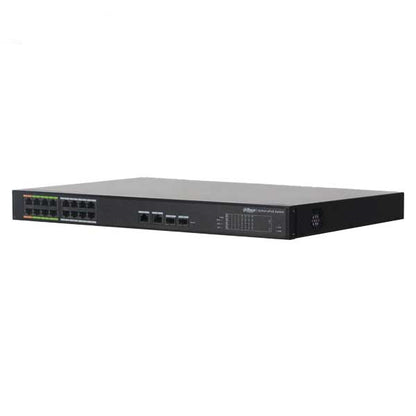

*Discontinued* Dahua / ePoE Ethernet Switch / 16-Port / 100-240 VAC / 800m / 240W / Managed / LR2218-16ET-240
*Discontinued* Dahua / ePoE Ethernet Switch / 16-Port / 100-240 VAC / 800m / 240W / Managed / LR2218-16ET-240
DH-LR2218-16ET-240
The DH-LR2218-16ET-240 is a 16-port ePoE Ethernet switch that supports PoE, PoE+, Hi-PoE and the PoC transmission standards. The switch is a component of Dahua's innovative Enhanced Power over Ethernet (ePoE) system that transmits power and data over long distances without the need for repeaters or multiple switches.
Features
- Layer 2 Managed Network ePoE Switch
- Enhanced Power and Data Transmission Distances with ePoE
- Supports Long Distance ePoE Transmission, up to 800 m (2524 ft)
- Supports IEEE, E100, and E10 Transmission Modes (Ports 1 to 8)
- Supports Twisted-pair and Coaxial Cable Transmission (Ports 1 to 8)
- Web Management Protocols: 802.1Q, VLAN, STP/RTSP, LACP, 802.1X, QoS
- Supports PoE Management, Green PoE, and Legacy Support
- Supports the IEEE802.3af and IEEE802.3at Standards and Hi-PoE
- Conforms to the IEEE802.3, IEEE802.3u, IEEE802.3ab/z and theIEEE802.3X Standards
- Become a registered dealer of Dahua
- Call 1-800-878-6604 for Dealer Prices!
Details
Specifications
| Ethernet Ports | Two (2) 1000 Base-X Ports (combo ports) Two (2) 10/100/1000 Base-T Ports 16 10/100 Base-T Ports (PoE Power Supply)) |
| PoE Power Consumption | Hi-PoE: Ports 1 and 2 Consumption: up to 60 W per port IEEE802.3af, IEEE802.3at: Ports 3 to 16 Consumption: up to 30 W per port Enhanced PoE (ePoE): Ports 1 to 8 Total PoE Budget: ≤ 240 W |
| PoE Protocol | PoE (IEEE802.3af), PoE+ (IEEE802.3at), Hi-PoE |
| Switching Capacity | 8.8 Gbps |
| Packet Forwarding Rate | 5.36 Mpps |
| Packet Buffer Memory | 2.75 MB |
| Power Requirements | 100 VAC to 240 VAC |
| Dimensions | 17.32 in. x 11.81 in. x 1.73 in. |
| Certifications | EN, UL, FCC, IEC |
| Warranty | Limited Lifetime |
