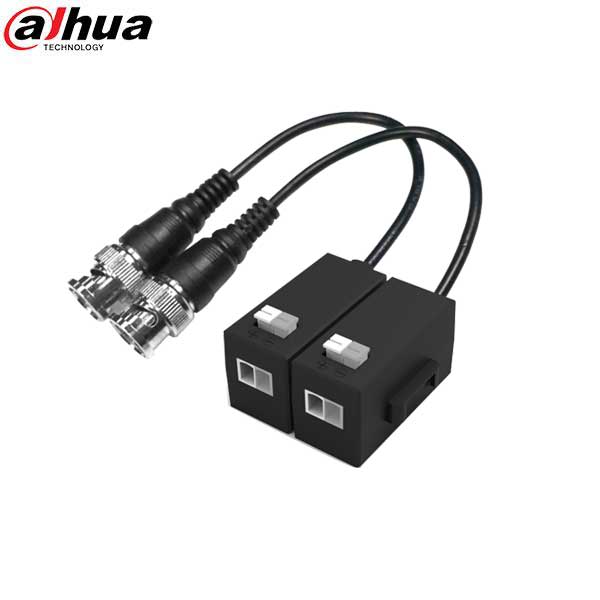

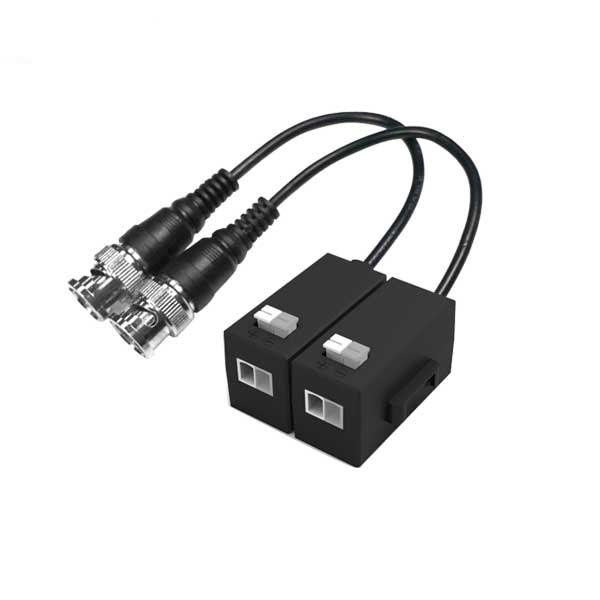

*Discontinued* Dahua / HDCVI Balun / Passive / 1 Channel / DH-PFM800-E
Out of Stock
SKU:
DH-PFM800-E
NSID:
17163
- $14.38
-
- $14.38
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
DH-PFM800-E
- One (1) Channel Balun
- Real-time Transmission over UTP CAT 5E/6 Cable
- External Power Supply not Required
- Five-year Warranty (for products sold through an authorized Dahua Dealer)
- Become a registered dealer of Dahua
- Call 1-800-878-6604 for Dealer Prices!
- $14.38
-
- $14.38
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
x
Technical Specification
| Video | |
| Transmission Signal | One (1) Channel |
| Maximum Transmission Distance | HDCVI 720p: 400m (1312.34ft) 1080p: 250m (820.21ft) |
| Category Type | UTP CAT 5E/6 |
| Video Transmission Properties and Ports | |
| Coaxial Video Connector | BNC-M |
| Twisted-pair Video Connector | Push-terminal |
| Compatible Format | HDCVI, AHD, TVI, CVBS |
| Resolution | 720p, 1080p |
| Anti-interference | > 60 dB |
| Protection | |
| ESD | 1a contact discharge electricity level 3 1b air discharge electricity level 3 Per: IEC61000-4-2 |
| Coaxial Cable Connector | 2 KV (common-code) per IEC1000-4-5 |
| UTP Cable Connector | 2 KV (different-code), 4 KV (common-code), per IEC1000-4-5 |
| Impedance | |
| BNC Male | 75 Ω |
| UTP Cable | 100 Ω |
| Physical Properties | |
| Dimensions | 180.0mm x 19.0mm x 16.0mm (7.09in. x 0.75in. x 0.63in.) |
| Shell | ABS |
| Color | Black |
| Net Weight | 0.042 kg (0.09 lb) |
| Stability | |
| MTBF | > 10000 h |
| Environmental | |
| Operating Temperature | –10 °C to +55 °C (14 °F to 131 °F) |
| Storage Temperature | –20 °C to +70 °C (–4 °F to 158 °F) |
| Humidity | 0 to 95%, non-condensing |
Dimensions
Application
