*Discontinued* Dahua / RFID Card Reader / Keypad / 13.56 MHz RFID / 9-15 VDC / DH-ASR1101A

*Discontinued* Dahua / RFID Card Reader / Keypad / 13.56 MHz RFID / 9-15 VDC / DH-ASR1101A

Discontinued
SKU DH-ASR1101A NSID 27877
$124.18

DH-ASR1101A

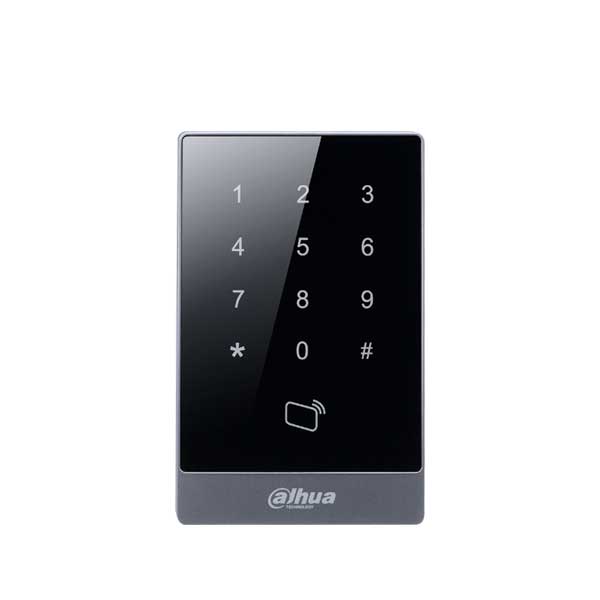

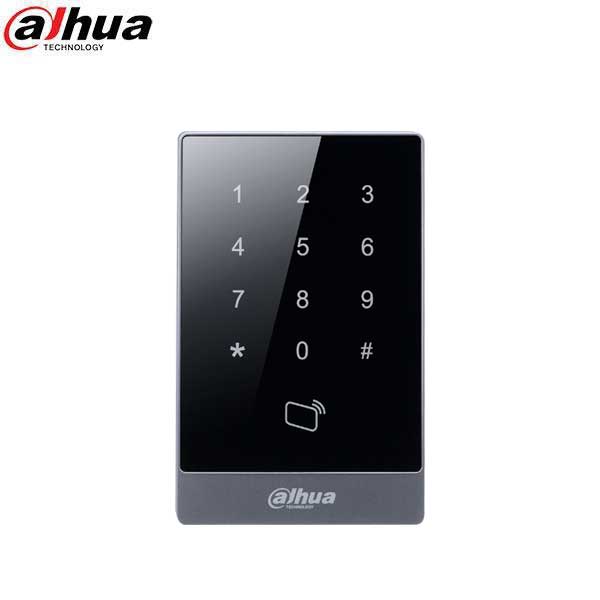

This is the Dahua Card Reader with keypad and 13.56 MHz RFID. it is ideal for general purpose access control installations that want to take advantage of the latest convenience and flexibility features of mobility.

Features

  • Wiegand 34 and RS485 Protocols
  • MIFARE 13.56 MHz Card
  • Watch Dog Function for Tamper Detection
  • Sensitive Touch Keypad with Blue Backlight
  • Audible and Visual Indicators
  • Surface-mount Installation


View full details

Details

Specifications

System
Main Processor 8-bit
LCD Display Blue Backlight
Audible Indicator Buzzer
Reader
Format 13.56 MHz MIFARE
Distance 2.36 in. to 3.15 in. maximum
Response Time < 0.1 s
Keypad Sensitive Touch Keypad, 12 Keys (1 to 9, *, #)
Interface
To Controller Wiegand 34, RS485
Electrical
Power Supply 9 VDC to 15 VDC, 100 mA
Construction
Color Black
Dimensions 5.34 in. x 3.42 in. x 0.50 in.
Certifications EN UL FCC CAN/CSA
