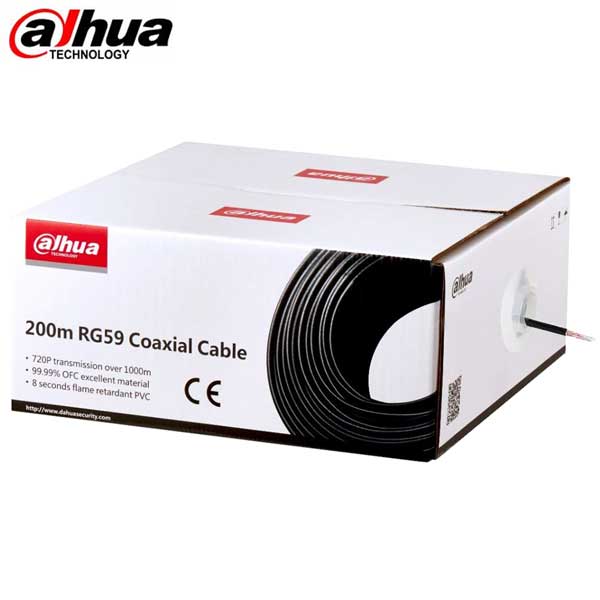

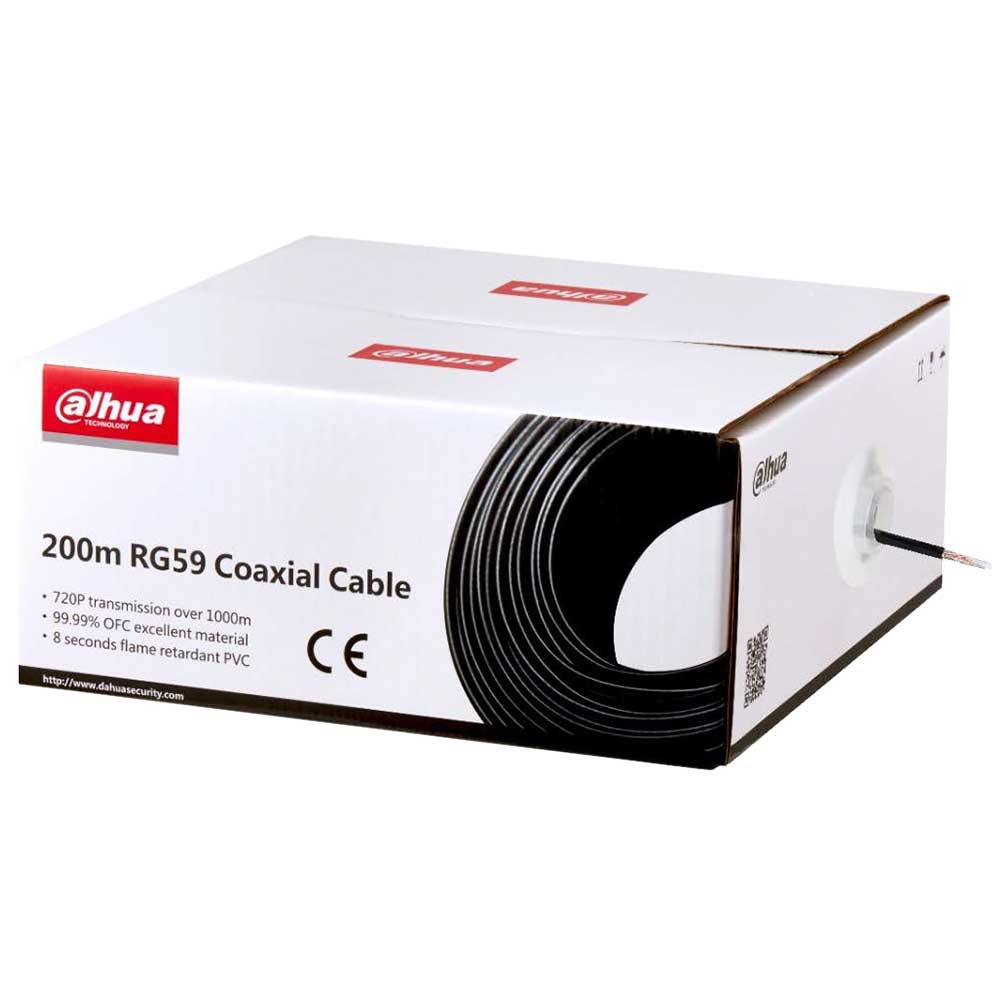

*Discontinued* Dahua / RG59 Coaxial Cable / 200m / DH-PFM930-59N
Out of Stock
SKU:
DH-PFM930-59N
NSID:
27923
- $88.18
-
- $88.18
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
DH-PFM930-59N
- 200 m (656.17 ft) RG59 Coaxial Cable
- Over 1000 m (3280.84 ft) Transmission Distance (at 720p)
- 99.99% Oxygen-free Copper
- Cable Sheath Flame Retardant for 8 Second
- Become a registered dealer of Dahua
- Call 1-800-878-6604 for Dealer Prices!
- $88.18
-
- $88.18
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xTechnical Specification
| Conductor |
|
| Material | Oxygen-free Copper (OFC) |
| Wire Gauge | 20 AWG (0.80 mm [0.031 in.]) |
| Insulation | |
| Material | FPE |
| Diameter | 3.70 mm ± 0.05 mm (0.015 in. ± 0.0002 in.) |
| Tape | |
| Material | Aluminum Foil |
| Thickness | 0.04 mm (0.0016 in.) |
| Braid | |
| Material | Copper-clad Aluminum |
| Structure | 0.12 mm (0.0047 in.) x 64 (16 x 4) |
| Jacket | |
| Material | PVC |
| Minimum Average Thickness | 0.90 mm (0.035 in.) |
| Diameter | 6.10 mm ± 0.20 mm (0.24 in. x ± 0.008 in.) |
| Color | Black |
| General | |
| Length | 200.0 m (656.17 ft) |
| Mark Spacing | 1.0 m (3.28 ft) |
| Impedance | 75 Ω ± 2 Ω |
| Certification | |
| WIre Standard | EN 50575:2014/A1:2016 |
| Physical Properties | |
| Weight | 6.70 kg (14.77 lb) |
| Packaging Weight | 7.20 kg (15.87 lb) |
| Packaging Dimensions | 662.0 mm x 337.0 mm x 467.0 mm (26.06 in. x 13.27 in. x 18.39 in.) |
| Environmental | |
| Operating Temperature | –20° C to +70° C (–4° F to 158° F) |
| Storage Temperature | –40° C to +80° C (–40° F to 176° F) |
