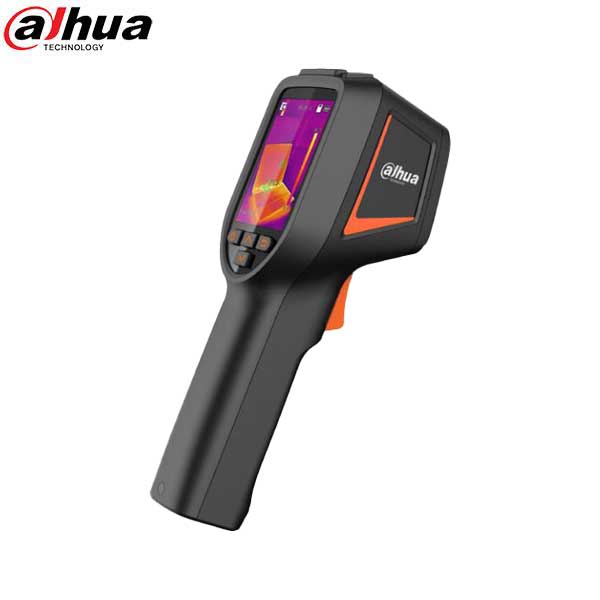

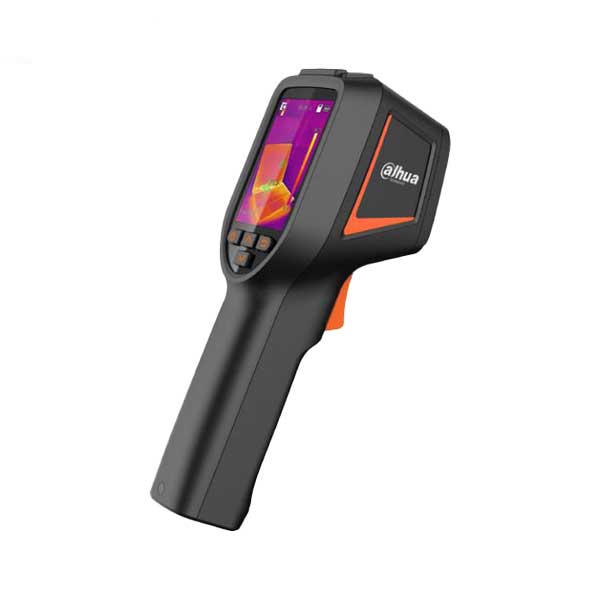

*Discontinued* Dahua / Thermal Monitoring Device / Handheld / 3.5mm Fixed / IP54 / TPC-HT2201
*Discontinued* Dahua / Thermal Monitoring Device / Handheld / 3.5mm Fixed / IP54 / TPC-HT2201
DH-TPC-HT2201
Features
- 256 x 192 Uncooled VOx Thermal Sensor Technology
- 3.5 mm Fixed Athermalized Lens, Focus-free
- ±0.5° C (±0.9° F) Temperature Accuracy
- ≤ 50 mK Thermal Sensitivity
- Contactless Temperature Measurement
- Connect Handheld Device to a Computer and Monitor via USB
- Rechargeable Lithium-Ion Battery
- Requires 15 to 20 Minutes to Warm-up
- Become a registered dealer of Dahua
- Call 1-800-878-6604 for Dealer Prices!
Details
Specifications
| Thermal Camera | |
| Image Sensor | Uncooled VOx FPA |
| Effective Pixels | 256 (H) x 192 (V) |
| Pixel Size | 12 µm |
| Thermal Sensitivity (NETD) | ≤ 50 mK at F1.0 |
| Spectral Range | 8 µm to 14 µm |
| Thermal Lens | |
| Lens Type | Fixed |
| Focus Control | Athermalized, Focus-free |
| Focal Length | 3.5 mm |
| Angle of View | Horizontal: 50.6° Vertical: 37.8° |
| Aperture | F1.0 |
| Display | |
| Size | 2.40-in. LCD |
| Resolution | 320 x 240 |
| Temperature Measurement | |
| Range | 30° C to 45° C (86° F to 113° F) |
| Accuracy | ±0.5° C (0.9° F), when operating temperature is between 15° C to 35° C (59° F to 95° F) |
| Mode | Head Center Maximum Temperature |
| Alarm | Audible alarm when measured temperature exceeds threshold value |
| Distance | 0.50 m to 1.50 m (19.69 in. to 59.06 in.) |
| Interface | |
| Edge Storage | Micro SDHC Card Slot, maximum 32 GB (SD card must be formatted as FAT32) |
| USB | Micro USB, used to charge the unit and to transfer recorded video¹ |
| Battery | |
| Type | Built-in Rechargeable Lithium-Ion Battery |
| Life | > 8 Hours, continuous operation at 25° C ( 77° F) |
| Charge Time | ≤ 2.5 Hours at 25° C ( 77° F) |
| Certifications |
EN, FCC, CFR, IP54 |
| Dimensions | 192.40 mm x 62.55 mm x 73.40 mm (7.58 in. x 2.46 in. x 2.89 in.) |
| Installation | Handheld or Tripod-mounted |
