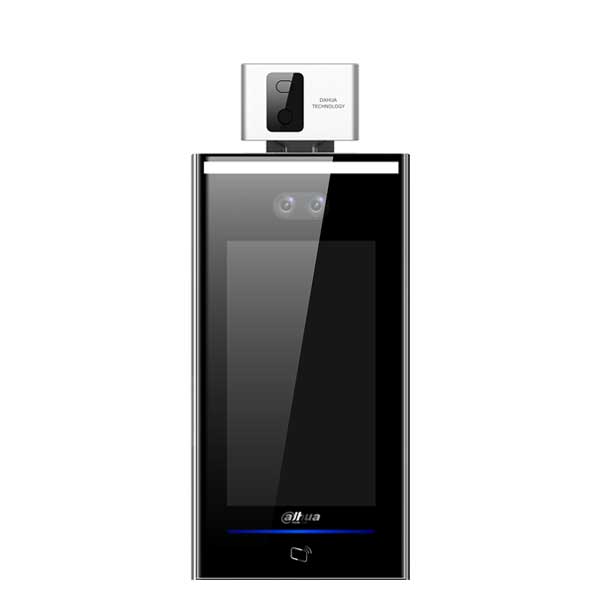

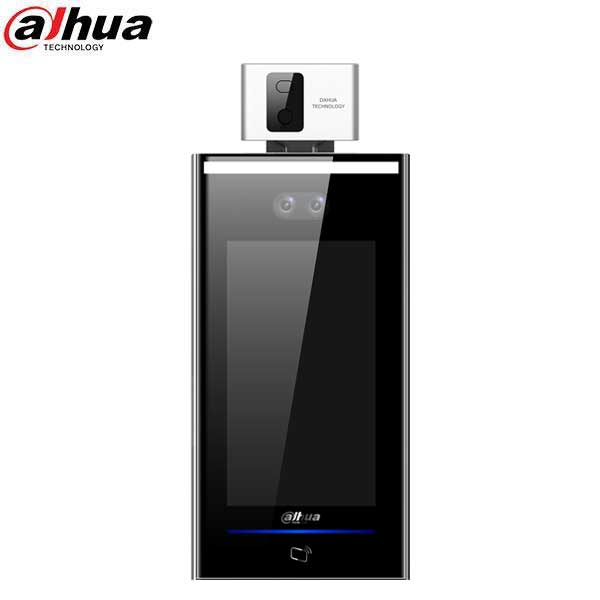

*Discontinued* Dahua / Thermal Monitoring Station / Up To 6ft IR / WDR / 2MP CMOS / 12VDC / ASI7213X-T1
*Discontinued* Dahua / Thermal Monitoring Station / Up To 6ft IR / WDR / 2MP CMOS / 12VDC / ASI7213X-T1
DH-ASI7213X-T1
The Dahua Thermal Temperature Station offers a compact, economical and easily deployed solution for monitoring human skin temperature. Install and implement the station to detect elevated skin temperature in environments such as hospitals, clinics, office buildings, and retail locations.
Features:
- 7-in. LCD Display with a 600 x 1024 Resolution
- Dual 2 MP CMOS Sensors
- Infrared Temperature Sensor
- Contactless Temperature Measurement from 0.30 m to 1.83 m (1.0 ft to 6.0 ft) from Station
- Temperature Threshold
- Face Mask Detection
- Temperature Measurement Accurate to ±0.5° C (±0.9° F)
- Become a registered dealer of Dahua
- Call 1-800-878-6604 for Dealer Prices!
Details
Specifications:
| System | |
| Main Processor | Embedded |
| Internet Protocol | IPv4, RTSP, RTP, TCP, UDP, P2P |
| Interoperability | ONVIF, CGI, SDK Support |
| Status Indicator | Red: Error Green: Normal Operation Blue: Device Working |
| Video | |
| Sensor | Two (2) 1/2.8-in. 2 MP CMOS Sensors |
| Wide Dynamic Range | 120 dB |
| Illumination | Auto White Light Auto IR |
| Display | 7-in. Screen |
| Screen Type | Capacitive |
| Resolution (H x V) | 600 pixels by 1024 pixels |
| Temperature Monitoring | |
| Area | 120 pixels x 90 pixels |
| Visual Angle | 50° |
| Monitoring Range | 30° C to 50° C (86° F to 122° F) |
| Ambient Operating Range | 16° C to 32° C (60.80° F to 89.60° F) |
| Time | 0.2 s |
| Accuracy | 0.1° C (0.18° F) |
| Error | ±0.5° C (0.9° F) |
| Distance | 11.81 in. to 70.86 in. |
| Interface | |
| Ethernet | One (1) 1000 Mbps Port, RJ-45 One (1) 10/100 Mbps Port, RJ-45 |
| RS485, RS232 & Wiegand | One (1) Port |
| USB | Two (2) USB 2.0 Ports |
| Alarms | |
| Input | Two (2) Switches |
| Output | Two (2) Relays |
| Electrical | |
| Power Supply Mode | 12 VDC, 2 A (power adapter included) |
| Power Consumption | ≤ 24 W |
| Construction | |
| Material | Aluminium Alloy Tempered Glass, PC |
| Dimensions | Controller: (14.96 in x 9.25 in. x 4.88 in.) Protective Case: (19.45 in. x 15.83 in. x 10.83 in.) |
| Certifications | |
| Electromagnetic Compatibility (EMC) |
FCC CFR 47 Part 15 subpart B EN 55032:2015, EN 55024:2010/A1:2015, EN 55035:2017, EN 50130-4:2011/A1:2014, EN 61000-3-3:2013 |
| Installation | Wall-mount or optional floor stand or desktop stand |
