*Discontinued* Dahua / PoE Ethernet Switch / 4-Port / 14Gbps / 53 VDC / 60W / Unmanaged / PFS3006-4GT-60

*Discontinued* Dahua / PoE Ethernet Switch / 4-Port / 14Gbps / 53 VDC / 60W / Unmanaged / PFS3006-4GT-60

Discontinued
SKU DH-PFS3006-4GT-60 NSID 28310
$88.18

DH-PFS3006-4GT-60

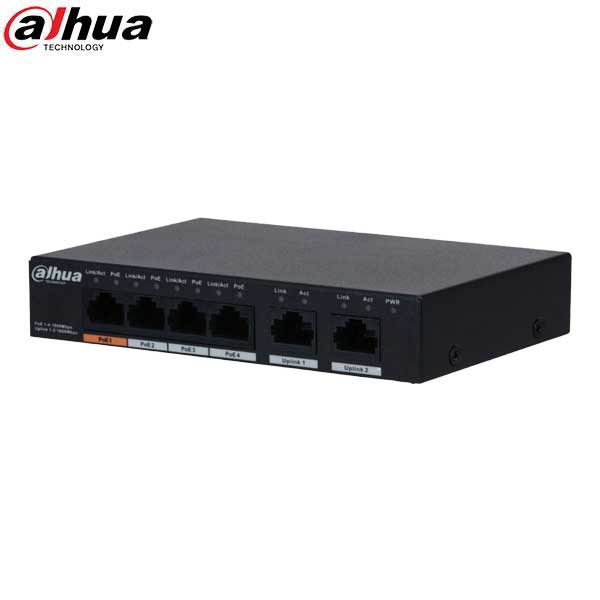

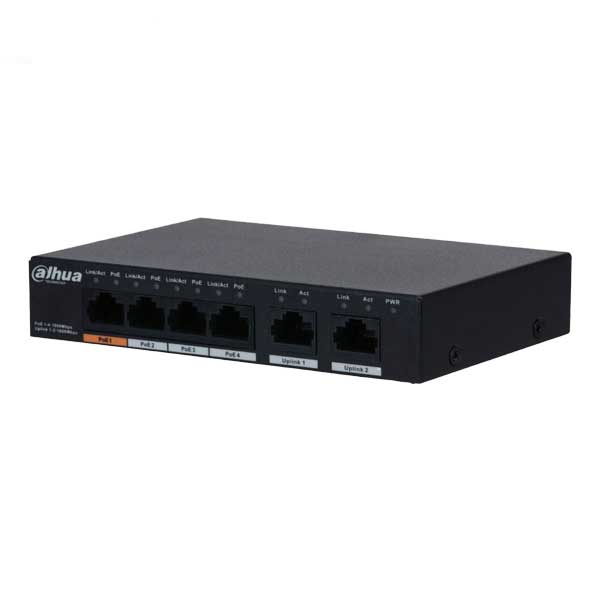

The 4-port unmanaged desktop switch is a Layer 2 commercial switch with full gigabit access. The switch provides four (4) 10/100/1000 Mbps Ethernet ports and two (2) 10/100/1000 Mbps uplink ports. The device offers a high-performance switching engine, a large buffer, low transmission delay, and high reliability.

Features

  • Layer 2 Commercial Switch
  • Supports IEEE802.3, IEEE802.3u, IEEE802.3ab, and IEEE802.3x Standards
  • MAC Auto Study and Aging
  • 2K MAC Address List Capacity
  • MDI/MDIX Self-adaptation
  • Supports PoE (IEEE802.3af), PoE+ (IEEE802.3at), and Hi-PoE Standards
  • Desktop or Wall-mount Installation
  • Become a registered dealer of Dahua
  • Call 1-800-878-6604 for Dealer Prices!


View full details

Details

Specifications

Ethernet Ports Ports 1 through 4: 10/100/1000 (PoE), RJ45
Ports 5 and 6: 10/100/1000 (Uplink), RJ45
PoE Power Consumption Port 1: ≤ 60 W (Hi-PoE)
Ports 2, 3, 4: ≤ 30 W
Total Power Consumption: ≤ 60 W
PoE Protocol PoE (IEEE802.3af), PoE+ (IEEE802.3at), Hi-PoE
Standards Compliance IEEE802.3, IEEE802.3u, IEEE802.3x
PoE PIN Assignment PoE/Hi-PoE: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
Switching Capacity 14 Gbps
Packet Forwarding Rate 8.928 Mpps
Packet Buffer Memory 1 Mbs
MAC Table Size 2K
Flow Control Enabled (by default)
Power Input 53 VDC, with external power adapter
Power Consumption, static 0.96 W
Surge Protection Common Mode: 2 KV
Differential Mode: 1 KV
ESD Air Discharge: 8kV
Contact Discharge: 6kV
Dimensions 5.12 in. x 3.35 in. x 1.02 in.
Certifications FCC, EN
Manufacturer's Warranty Limited Lifetime
