*Discontinued* Dahua / UTC Controller For 2MP HDCVI Cameras / DH-PFM820

*Discontinued* Dahua / UTC Controller For 2MP HDCVI Cameras / DH-PFM820

Discontinued
SKU DH-PFM820 NSID 27987
$23.38

DH-PFM820

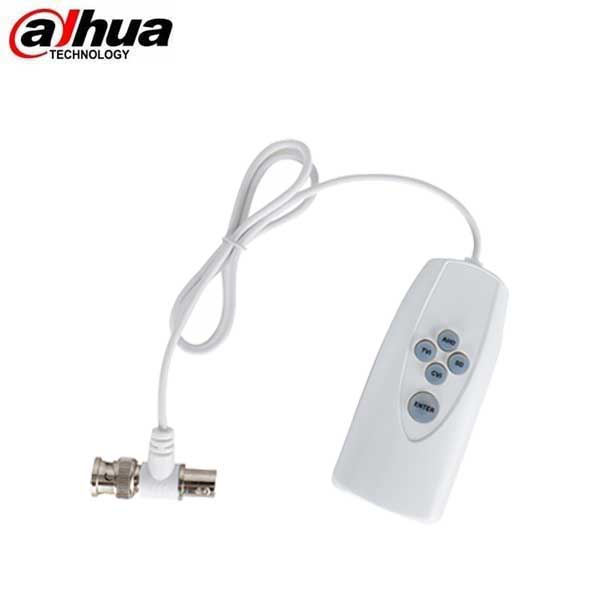

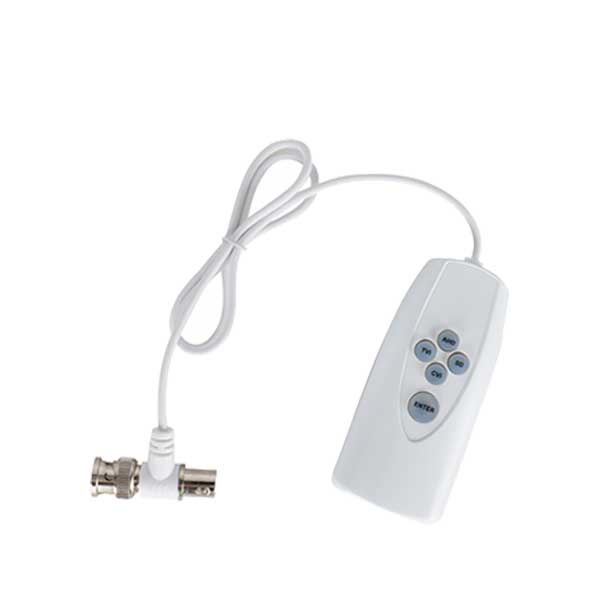

The PFM820 UTC Controller is a compact and easy-to-use accessory that allows video from an HDCVI camera to pass through to a Dahua DVR via the on-screen display menu. Simply connect the camera and the DVR to the UTC connector. The PFM820 UTC Controller accepts video from HDCVI, AHD, HDTVI, and CVBS sources.

Features:

  • Compact Controller Connects Analog Cameras to a Dahua
    DVR via the OSD
  • Supports HDCVI, AHD, HDTVI, and CVBS Formats
  • Indicators Show Current Video Format
  • Become a registered dealer of Dahua
  • Call 1-800-878-6604 for Dealer Prices!


View full details

Details

Technical Specification

Video
Formats HDCVI, AHD, HDTVI, CVBS
Applicable Cameras 2 MP HDCVI Cameras (or lower resolution)
Electrical
Power Supply Two (2) AAA Batteries
Power Consumption 0.3 W
Environmental
Operating Conditions 0° C to +40° C (32° F to +104° F)
Relative Humidity 0 to 95%
Construction
Casing PC and ABS Plastic
Dimensions 90.0 mm x 41.0 mm x 21.0 mm
(3.54 in. x 1.61 in. x 0.83 in.)
Cable Length 560 mm (22.05 in.)
Color White
Net Weight 48.0 g (0.11 lb)
Certifications FCC CFR 47 Part 15 Subpart B
ANSI C63.4 – 2014. EN / IEC
