*Discontinued* Dahua / Vandal-Proof RFID Card Reader / Metal Keypad / 13.56 MHz RFID / 9-15 VDC / DH-ASR1101M

*Discontinued* Dahua / Vandal-Proof RFID Card Reader / Metal Keypad / 13.56 MHz RFID / 9-15 VDC / DH-ASR1101M

Discontinued
SKU DH-ASR1101M NSID 27878
$163.78

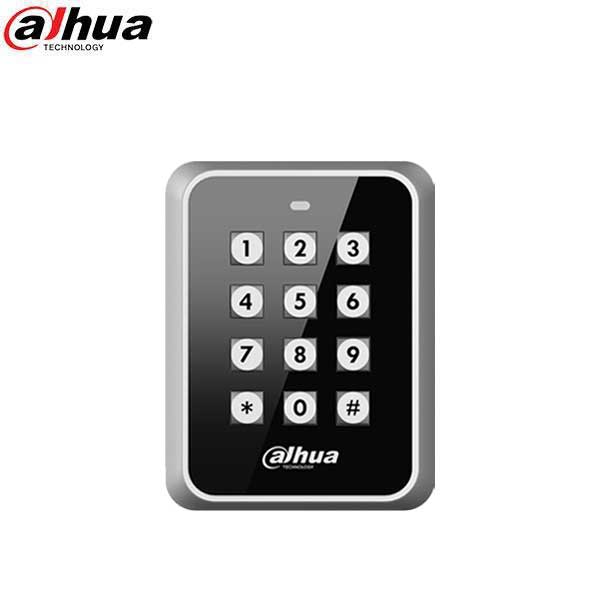

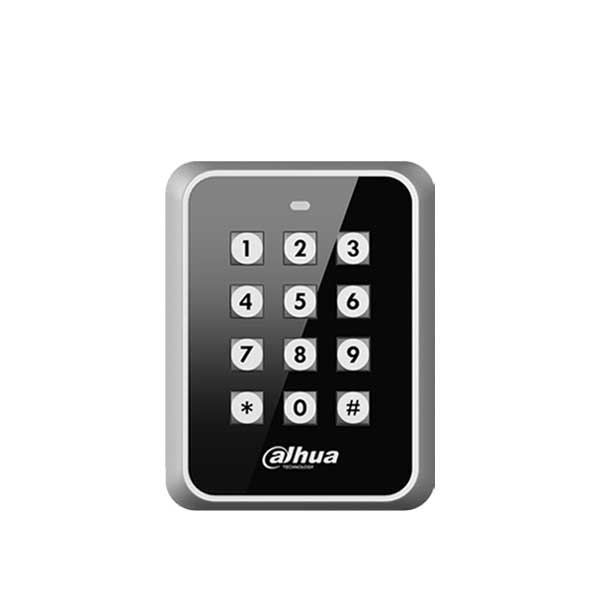

DH-ASR1101M

This is the Dahua Card Reader with metal keypad and 13.56 MHz RFID. it is ideal for general purpose access control installations that want to take advantage of the latest convenience and flexibility features of mobility.

Features

  • Wiegand 34 or RS485 Protocol
  • MIFARE 13.56 MHz Card
  • Watch Dog Function for Tamper Detection
  • Metal Keypad Buttons with Blue Backlight
  • Audible and Visual Indicators
  • Surface-mount Installation


View full details

Details

Specifications

System
Main Processor 8-bit
LCD Display Red and Green LED Indicators, Blue Backlight
Audible Indicator Buzzer
Reader
Format 13.56 MHz MIFARE
Distance 2.36 in. to 3.15 in. maximum
Response Time < 0.1 s
Keypad Metal Button Keypad 12 Keys (1 to 9, *, #), Key 5 has Braille Markings
Interface
To Controller Wiegand 34, RS485
Electrical
Power Supply 9 VDC to 15 VDC, 100 mA
Construction
Color Black
Dimensions 4.33 in. x 3.35 in. x 1.02 in.
Vandal Resistance IK08
Certifications EN UL FCC CAN/CSA
