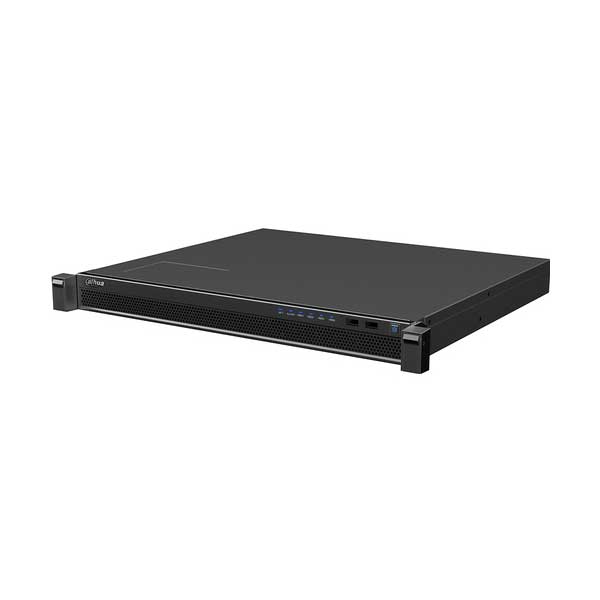

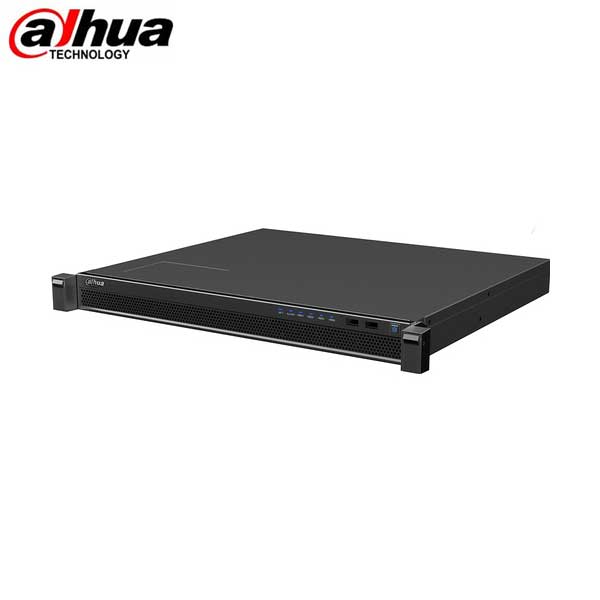

DH-DSS4004-S2
The DSS4004-S2 Express Video Management System is a powerful, all-in-one video surveillance management system preloaded with Linux-optimized DSS Express software for system scalability and reliability. The server supports up to 512 network cameras, 100 online clients, and the ability to integrate multiple access or video intercom devices.
The server provides user rights management, device management, alarm management, center storage, TV wall output and, two-way audio. In addition to these VMS features, the server offers advanced features, including support for real-time face recognition and robust event management controls, features not found on many other VMS servers.
Features
- Embedded Linux Operating System with Pre-installed DSS Express Software
- Supports 512 IP Cameras
- Live Video Playback
- Supports Access Control and Video Intercom Integration
- Configure Video Wall Layout and Scheme
- Configure NVR Recording
- Offers Fisheye Camera Dewarping on Live View and Playback Images
- Intelligent Video System with Face Recognition
- Five-year Warranty
- Become a registered dealer of Dahua
- Call 1-800-878-6604 for Dealer Prices!
Details
Technical Specification
| System | |
| Main Processor | Intel® Core™ i3-6100, 64-bit, 4-core Processor |
| Operating System | Embedded LINUX |
| Management Software |
DSS Express, pre-installed |
| Memory |
8 GB |
| Power Supply |
Hot-swappable Power Supply |
| Display | |
| Mode |
Live View, PTZ Control, Snapshot, Instant Playback, Customized Layout |
| Video Wall |
Push Real-time, Alarm and Playback Video to Wall |
| Dewarping | Supported for Fisheye Video on Live View and Playback |
| Playback | |
| Playback | 36-channel Synchronized Playback |
| Playback Mode |
Normal, Motion Detection, Alarm, IVS, POS |
| Storage | |
| HDD Installation |
Built-in 1 TB HDD (2.5-in.) for System Supports 3 HDD (2.5-in.) for video and picture storage |
| Storage |
8 TB per HDD |
| Interface | |
| USB |
Front Panel: Two (2) USB 3.0 Ports Rear Panel: Two (2) USB 3.0 Ports On-board Panel: One (1) USB 2.0 Port |
| Display |
One (1) VGA Port, as Network Configuration Two HDMI Ports: One (1) as Network Configuration, One (1) as a Spare Port |
|
Video Management |
|
| Maximum Connected IP Cameras | 512 Video Channels |
| Maximum Connections |
Face Recognition Cameras: 32 Channels LPC: 32 Channels Access Control: 100 IP Devices, 512 Doors Video Intercom: 1024 Devices ONVIF: 100 Devices |
| Clients per System | 100 Simultaneous Users |
| Number of Users |
Unlimited |
| Number of Roles |
100 |
| Bandwidth, per Server | Video Input: 350 Mbps Video Output: 350 Mbps Video Storage: 150 Mbps |
| Network | |
|
Network Ports |
Four (4) RJ-45 Ports (10/100/1000 Mbps) |
| Interoperability | ONVIF, DSS SDK for Integration |
| GIS Map | Supported; Google and RasterMap |
| Supported; Yahoo, Gmail, Hotmail | |
| Electrical | |
|
Power Supply |
100 VAC to 240 VAC, 50/60 Hz |
| Power Consumption | 70 W to 120 W, with HDD |
| Environmental | |
| Operating Conditions | –0° C to +45° C (+32° F to +113° F) 5% to 90% RH, non-condensing |
| Storage Conditions | –20° C to +70° C (–4 °F to +158° F) 5% to 90% RH, non-condensing |
| Construction | |
| Dimensions | 3U, 440.0 mm x 398.60 mm x 43.65 mm (17.32 in. x 15.69 in. x 1.72 in.) |
| Net Weight | 6.0 kg (13.23 lbs) |
| Material | 1.0 mm SGCC Steel Plate |
| Installation | Standard 19-in. Rack Installation |
| Certifications | |
| Safety | EN 60950-1:2006+A11:2009+A1:2010+A12: 2011+A2:2013 |
| Electromagnetic Compatibility (EMC) | FCC 47 CFR Part 15 Subpart B, EN 55032:2015, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014, EN 61000-3-2:2014, EN 61000-3-3:2013 |
Downloads:
Functions
Flexibility and Scalability
The DSS4004-S2 VMS Server supports 512 IP video channels per server, with support for 32 connected face recognition cameras. The server supports 3 hard disk drives for video and snapshot storage and supports edge storage and extended storage via iSCSI.
Compatibility
The VMS server is compatible with all Dahua IP-enabled devices: network cameras, NVRs, DVRs, and access control devices plus many more. The server is also compatible with the ONVIF protocol, so it can connect to ONVIF-enabled third-party devices. The server offers and SDK for further support of third-party platforms and mobile operating systems.
Fisheye Camera Support
DSS features full support for Dahua Fisheye cameras. The software supports options for the Fisheye camera installation and eight (8) dewarp modes. Dewarping solves the problem of distortion in the circular panoramic view in both live or playback modes.
Real-time Face Recognition
The DSS4004-S2 performs real-time facial recognition on up to 64 channels simultaneously. The server captures and analyzes facial features to determine gender, age, expression, glasses, moustache, and mask, and then can record the faces and store the associated structured data. The server also filters incoming video to display faces that match target features.
Access Control and Video Intercom
The DSS4004-S2 server offers full support and integration for access control and video intercom products to support a complete security and surveillance system. The server monitors door status and events, manages access rights, and support advanced rules management. In addition to access controls, the server supports two-way communication between intercom and control center.
Video Wall
DSS offers settings to configure all aspects of a video wall application. The application supports video wall layout, live preview, scheme configuration, and tour setup. In addition, the application supports video wall splicing and roaming.
Management Operations
The server manages the devices and the user accounts for an entire organization. Operators can assign different camera ranges, active use periods, and business roles for each user. The server also supports different schemes for various events, including IVS, to record and view all event history information.
