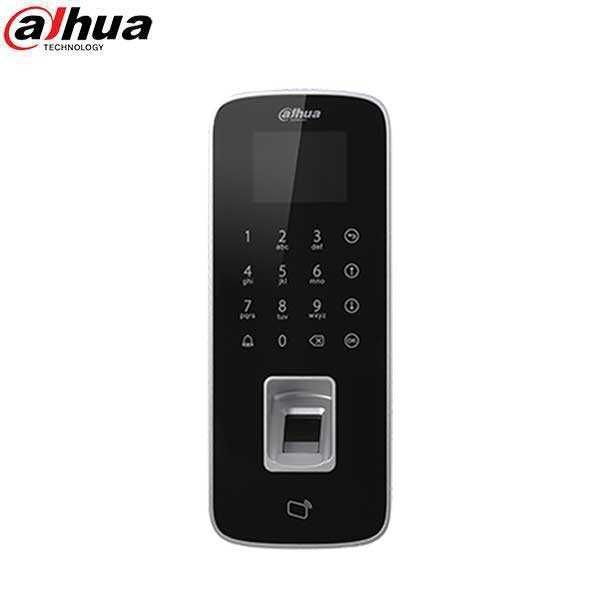

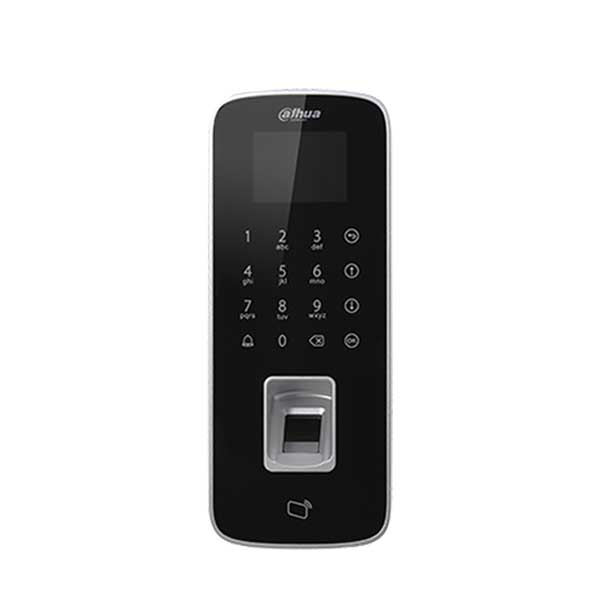

*Discontinued* Dahua / Waterproof Fingerprint Standalone Controller / PIN & PROX / 9-15VDC / 3K Prints / 30K Cards / 150K Events / IP65 / DH-ASI1212D
Out of Stock
SKU:
DH-ASI1212D
NSID:
27881
- $377.98
-
- $377.98
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
DH-ASI1212D
The Fingerprint Access Standalone integrates card reading, config, and execution functions. Its has a neat appearance for medium to high-end clients such as commercial building, corporation, and intelligent community. This product functions as a small office, one door controller. and is outdoor rated at IP65 for any application.
Features
- Wiegand 34 or RS485 Interface to Reader
- TCP/IP to PC, Support for WAN Communication
- Touch Keyboard and LCD display
- Supports 30,000 Valid Cards and 150,000 Events
- Supports Card, Password, Fingerprint and a Combination of Credentials
- Add Devices in SmartPSS via P2P Connection
- Door Time Out, Intrusion, Duress and Tamper Alarms
- Anti-passback and Multi-card Open Options
- Supports 128 Efficient Time and Holiday Schedules
- $377.98
-
- $377.98
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xSpecifications:
| System | |
| Main Processor | 32-bit |
| Flash Memory | 32 MB |
| Input/Output Ports | |
| Inputs | One (1) Door Sensor One (1) Exit Button One (1) Alarm |
| Outputs | Three (3) Alarm Relays (Door Lock, Bell, Alarm) |
| Card Reader | |
| Format | 13.56 MHz MIFARE |
| Range | 1.18 in. to 3.15 in. |
| Response Time |
< 0.1 s |
| Fingerprint Reader | |
| Response Time | ≤ 0.5 s |
| Recognition Time | ≤ 1.5 s |
| Capacity | |
| Card Holders | 30,000 |
| Events | 150,000 |
| Fingerprints | 3000 |
| Functions | |
| Network | P2P, DHCP |
| Access Control | Anti Pass-back, Multi-interlock, Multi-card Unlock |
| User Management | General, VIP, Guest, Patrol, Black List, Duress |
| Alarm Functions | Door time-out, Intrusion, Duress, Tamper |
| Schedule Settings | Schedule: 128 Groups Period: 128 Groups Holiday: 128 Groups |
| RTC & Voice Prompt | Supported |
| Audible Indicator | Buzzer |
| Interface | |
| To PC | RJ45 (10/100 Mbps) |
| To Reader | Wiegand 34, RS485 |
| Electrical | |
| Power Supply | 9 to 15 VDC, 200 mA Requires a separate 12 VDC power supply |
| Construction | |
| Dimensions | 8.07 in. x 3.26 in. x 1.30 in. |
| Ingress Protection | IP65 |
| Certifications | EN, UL, CAN/CSA, |
