Specifications

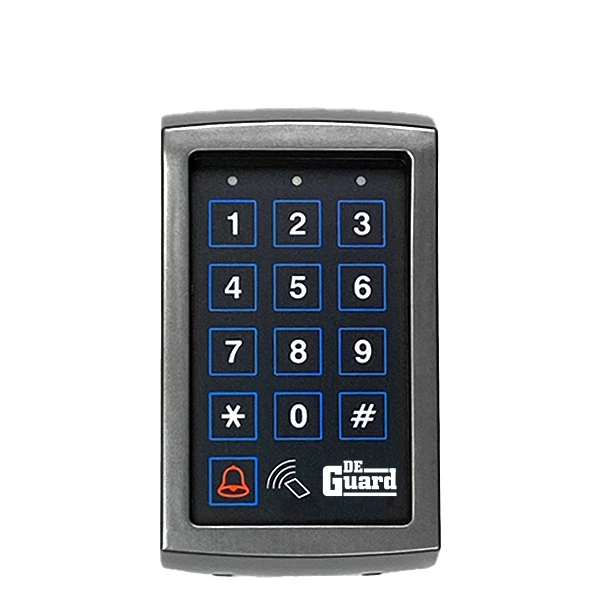

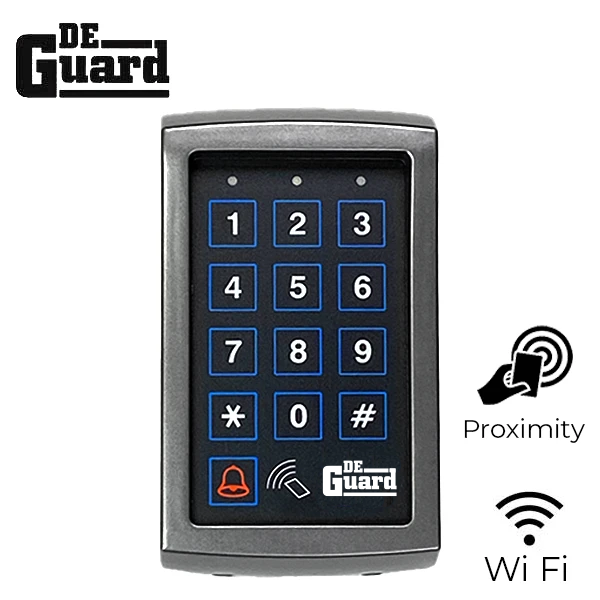

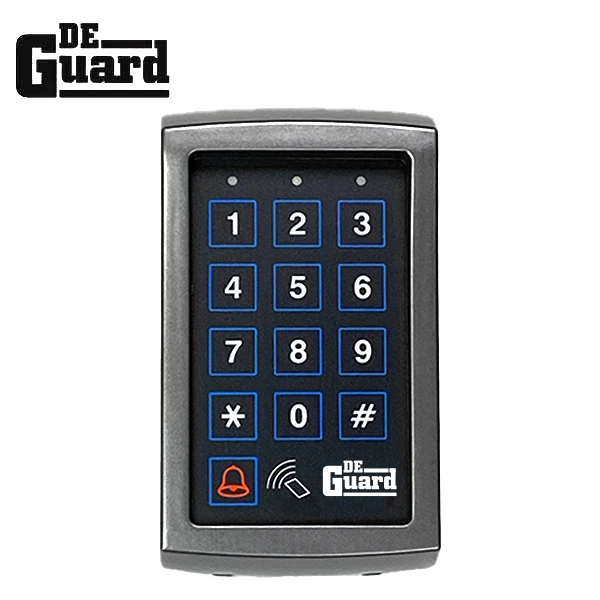

- DK-2866: Tact Switch Keyboard
- Operation Voltage: 12V DC Nominal; 11-15V DC
- Operation Current: 60mA (quiescent) to 150mA
-
Output Contacts: DK-2862 / DK-2866
Three Output System
- Output Relay 1: Solid State Relay, Fail-safe or Fail-secure selectable, 3A/17 VDC Max.
- Output Relay 2: N.C. & N.O. dry contacts, 1A/24VDC Max.
- Door Bell Relay: N.O. dry contact, 1A/24VDC Max.
- Tamper Switch: N.C. dry contact, 50mA/24VDC Max.
- Proximity EM Card: Standard EM Card or Keyfob, 125 khz
- Working Environment: All weather, IP-55
- Operation Temperature: -20C to +70C
- Environmental Humidity: 5-95% relative humidity non-condensing
- Housing: ABS Plastic Box
- Dimensions:126 (H) X 75 (W) X 35-40 (D) mm
- Weight: 200g net
