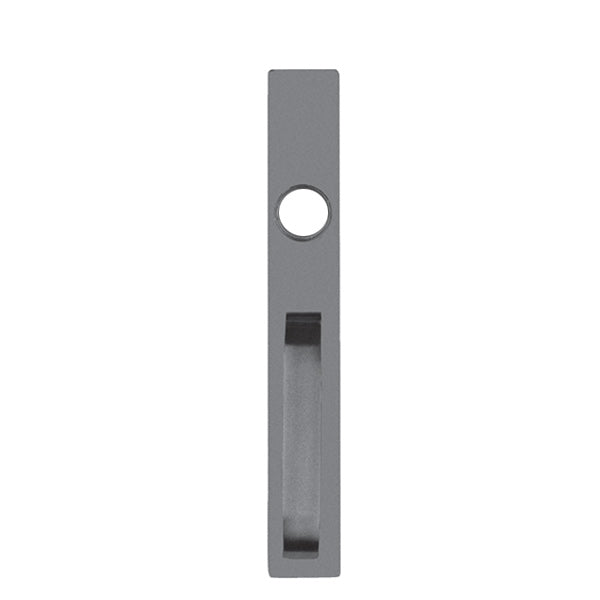

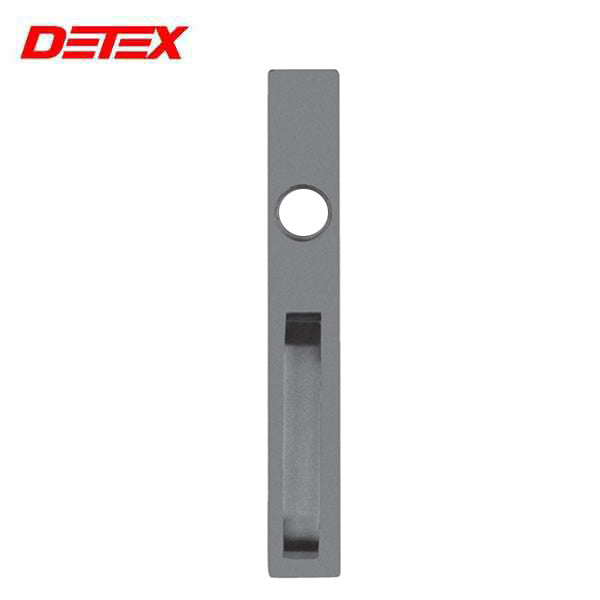

Detex - 03AN - Straight Pull Trim For V40 Series Rim and V50 Series Surface Vertical Rods - Storeroom - Narrow Stile - Aluminum Painted Finish

This Detex 03AN 689 is an outside lever trim that can be used to operate the Detex V40 Series alarmed exit devices from the outside of the door. A key will lock and unlock the lever when access is necessary from the outside. Cylinder sold seperately.

Assorted outside trims provide security for all types of installations. Built to be as durable as panic devices, these heavy-duty trims will stand up to heavy use and abuse. The versatile design of the trims, combined with the device mounting plate, makes changing functions as simple as replacing the outside trim. This can easily be done without removing the exit device from the door. These trims can be used on V40 Series Rim and V50 Series Surface Vertical Rods. Detex uses the BHMA functions/descriptions for all trims.

Features

• Includes a cylinder bracket kit with spring loaded tailpiece that self adjusts to the door thickness
• Storeroom Function
• Non Handed design. Easily field reversible.
• Cylinder collars for 5 and 6 pin cylinders are provided with all trims
• 1-1/8” mortise cylinder required (Not included)
