Detex - 08BN - Lever / Escutcheon Classroom Trim For V40 Exit Devices - Optional Finish - Grade 1
Availability:
In Stock
- Product SKU: DEX-08BN-689
- NSID:
-
DEX-08BN-689

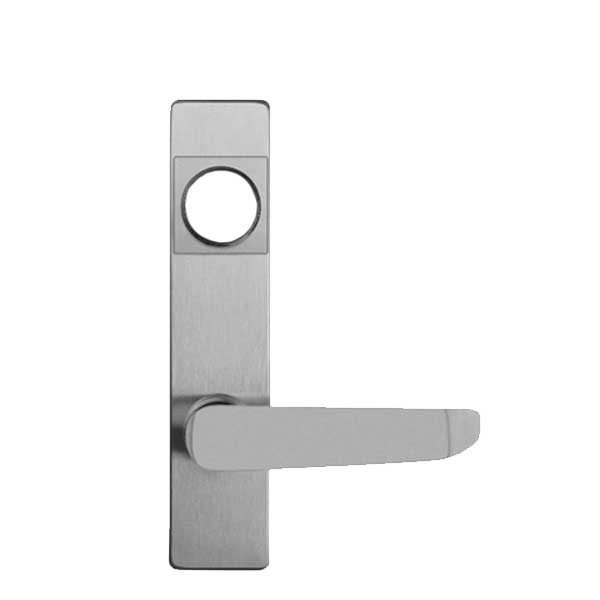

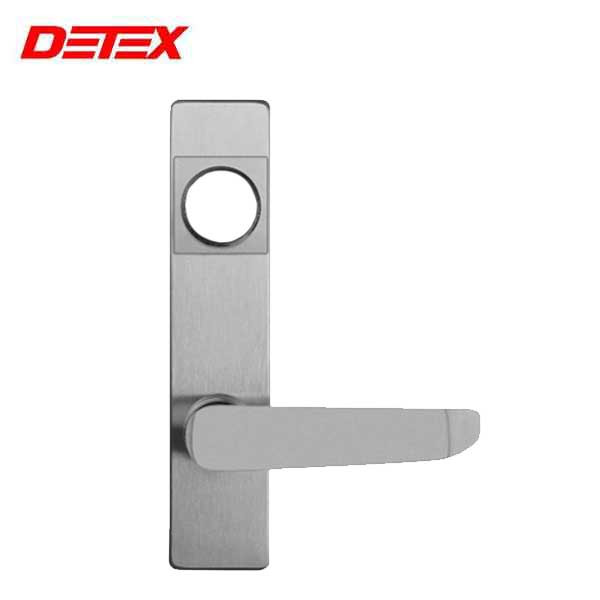

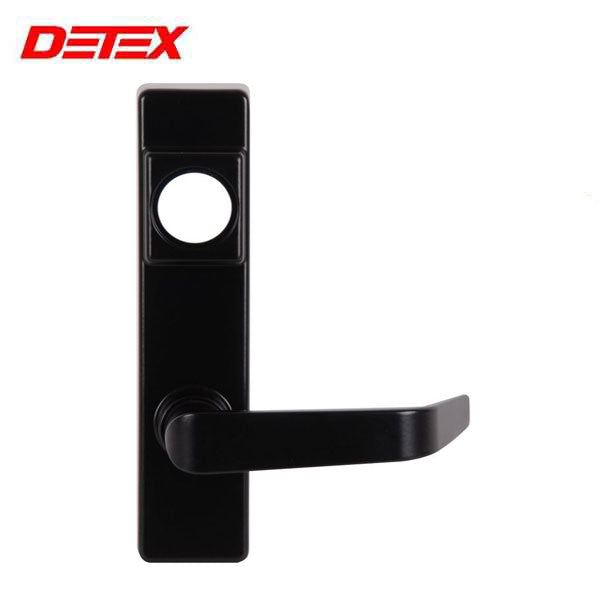

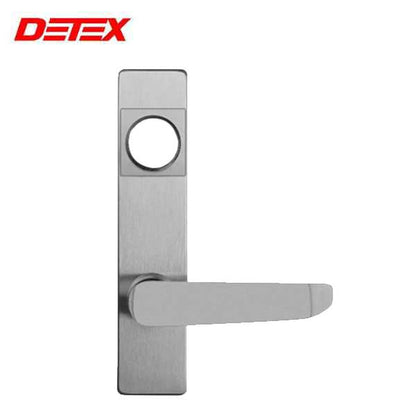

This Detex 08BN-689 is an outside lever trim that can be used to operate the Detex V40 Series alarmed exit devices from the outside of the door. A key will lock and unlock the lever when access is necessary from the outside.
Features
- Through-bolted modular design that allows for changing of the function and the trim without any modification to the exit device
- Non Handed design. Easily field reversible.
- Cylinder collars for 5 and 6 pin cylinders are provided with all trims
- Covers 161 Prep - adapter included
- 1-1/8” mortise cylinder required (Not included)
Specifications:
| Function: | 08 Classroom - Key outside, Thumbturn inside |
| Style: | Lever Trim |
| Lever: | BN Lever |
| Handing: | Field Reversible |
| Cylinder: | 1-1/8” mortise cylinder (Not included) |
| Cross Bore: | 2-1/8" cross-bore |
| Edge Bore: | 1" edge-bore |
| Backset: | 2-3/4" backset |
| Compatibility: | Value Series Devices |
| Stile: | 2" narrow stile |
| Finish: | 689 - Powder Coated aluminum, 693 - Black |
| Certifications: | ANSI Grade 1 |
Downloads:
DEX-08BN-689
This Detex 08BN-689 is an outside lever trim that can be used to operate the Detex V40 Series alarmed exit devices from the outside of the door. A key will lock and unlock the lever when access is necessary from the outside.
Features
- Through-bolted modular design that allows for changing of the function and the trim without any modification to the exit device
- Non Handed design. Easily field reversible.
- Cylinder collars for 5 and 6 pin cylinders are provided with all trims
- Covers 161 Prep - adapter included
- 1-1/8” mortise cylinder required (Not included)
Specifications:
| Function: | 08 Classroom - Key outside, Thumbturn inside |
| Style: | Lever Trim |
| Lever: | BN Lever |
| Handing: | Field Reversible |
| Cylinder: | 1-1/8” mortise cylinder (Not included) |
| Cross Bore: | 2-1/8" cross-bore |
| Edge Bore: | 1" edge-bore |
| Backset: | 2-3/4" backset |
| Compatibility: | Value Series Devices |
| Stile: | 2" narrow stile |
| Finish: | 689 - Powder Coated aluminum, 693 - Black |
| Certifications: | ANSI Grade 1 |
Downloads:
