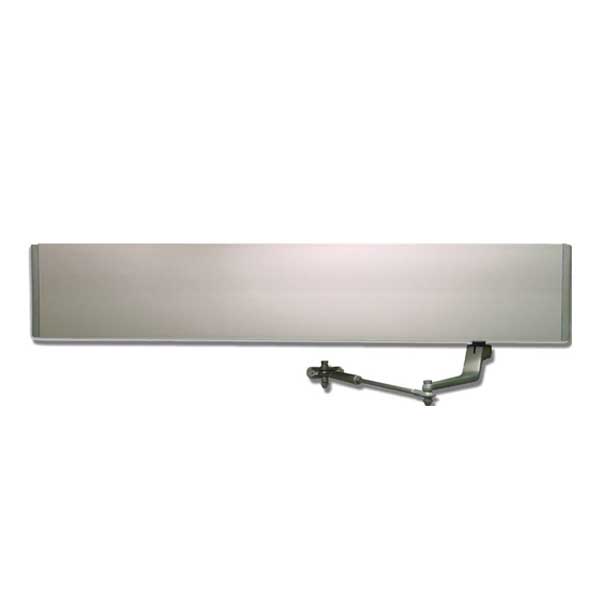

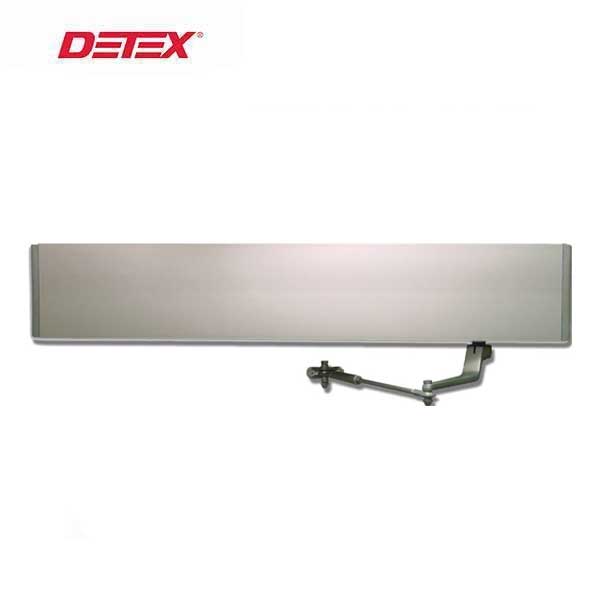

Detex - DTX-AO19-1XRH-PUSH - Automatic Door Operator - Low Energy - Single Door - Heavy Duty - Right Hand - Clear
Detex - DTX-AO19-1XRH-PUSH - Automatic Door Operator - Low Energy - Single Door - Heavy Duty - Right Hand - Clear
Detex - DTX-AO19-1XRH-PUSH - Automatic Door Operator - Low Energy - Single Door - Heavy Duty - Right Hand - Clear
Detex - DTX-AO19-1XRH-PUSH - Automatic Door Operator - Low Energy - Single Door - Heavy Duty - Right Hand - Clear
Detex - DTX-AO19-1XRH-PUSH - Automatic Door Operator - Low Energy - Single Door - Heavy Duty - Right Hand - Clear

Detex - DTX-AO19-1XRH-PUSH - Automatic Door Operator - Low Energy - Single Door - Heavy Duty - Right Hand - Clear

$1,940.00 $2,328.00
Availability: In Stock
Wishlist
  • Product SKU: DTX-AO19-1XRH-PUSH
  • NSID: 24891
  • DTX-AO19-1XRH-PUSH

    The DTX-AO19-1XRH-PUSH, AO19 Series, Automatic Operator for single doors is an easy to install, heavy duty product for high use and high abuse low energy application. The AO19 Series meets requirements for ANSI/BHMA A156.19 (American National Standard for Power Assist and Low Energy Power Operated Doors) and provides standard features that meet the requirements of the American Disabilities Act.



    • Economical operator provides safe and easy access in medium to high-traffic and security areas
    • Provides ADA compliant access to handicap applications
    • Quiet operation
    • 115VAC power plug-in mounted in header
    • Hanger plate allows quick installation
    • Self-contained unit in an extruded case allows easy access for maintenance and adjustments
    • Works with existing access control, locking and computer signal devices
    • Reduced service calls due to heavy duty construction
    • 3-way low-voltage ON/OFF/HOLD switch for ease of service and setup
    • Single voltage source required to operate
    • Adjustable closing speed


    $1,940.00
    Get it shipped
    Today!
    Order within
    00 Hrs
    00 Mins
    00 Secs



Power Requirements  115VAC 60 HZ 3 amps
Push Revel Depth Up to 11" with standard arm
Motor
  • 115VDC rectified
  • 1/8 hp
  • 60:1 gearbox
Door Weight For use on doors 300 lbs or less
Module
  • Activation input terminals
  • Form C lock switch terminals
  • Safety lock-out built in
  • 17 additional features standard on board
Enclosure
  • 7" h x 4 1/2" d
  • Approximately 50 lbs
  • Aluminum extrusion









 Downloads:



DTX-AO19-1XRH-PUSH

The DTX-AO19-1XRH-PUSH, AO19 Series, Automatic Operator for single doors is an easy to install, heavy duty product for high use and high abuse low energy application. The AO19 Series meets requirements for ANSI/BHMA A156.19 (American National Standard for Power Assist and Low Energy Power Operated Doors) and provides standard features that meet the requirements of the American Disabilities Act.



  • Economical operator provides safe and easy access in medium to high-traffic and security areas
  • Provides ADA compliant access to handicap applications
  • Quiet operation
  • 115VAC power plug-in mounted in header
  • Hanger plate allows quick installation
  • Self-contained unit in an extruded case allows easy access for maintenance and adjustments
  • Works with existing access control, locking and computer signal devices
  • Reduced service calls due to heavy duty construction
  • 3-way low-voltage ON/OFF/HOLD switch for ease of service and setup
  • Single voltage source required to operate
  • Adjustable closing speed



Power Requirements  115VAC 60 HZ 3 amps
Push Revel Depth Up to 11" with standard arm
Motor
  • 115VDC rectified
  • 1/8 hp
  • 60:1 gearbox
Door Weight For use on doors 300 lbs or less
Module
  • Activation input terminals
  • Form C lock switch terminals
  • Safety lock-out built in
  • 17 additional features standard on board
Enclosure
  • 7" h x 4 1/2" d
  • Approximately 50 lbs
  • Aluminum extrusion









 Downloads:
