Detex - DTX-BE-961-1 - Battery Eliminator - 120VAC-9VDC - 10' Flex Conduit
Detex - DTX-BE-961-1 - Battery Eliminator - 120VAC-9VDC - 10' Flex Conduit
Detex - DTX-BE-961-1 - Battery Eliminator - 120VAC-9VDC - 10' Flex Conduit
Detex - DTX-BE-961-1 - Battery Eliminator - 120VAC-9VDC - 10' Flex Conduit
Detex - DTX-BE-961-1 - Battery Eliminator - 120VAC-9VDC - 10' Flex Conduit

Detex - DTX-BE-961-1 - Battery Eliminator - 120VAC-9VDC - 10' Flex Conduit

$211.63 $253.96
Availability: In Stock
Wishlist
  • Product SKU: DTX-BE-961-1
  • NSID: 24158
  • DTX-BE-961-1

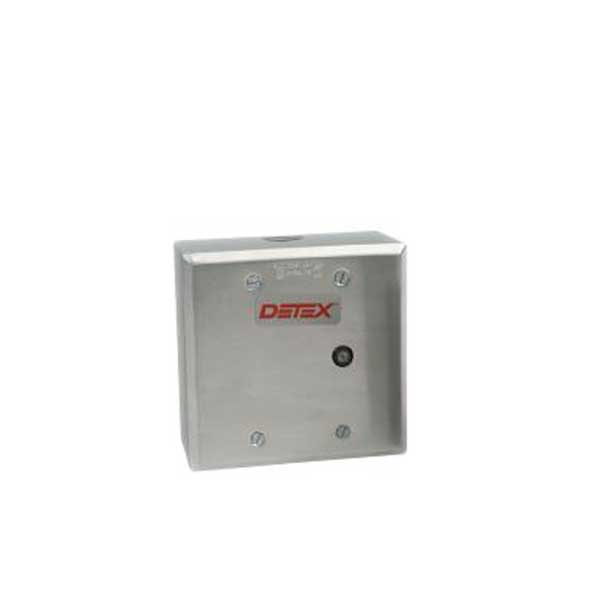

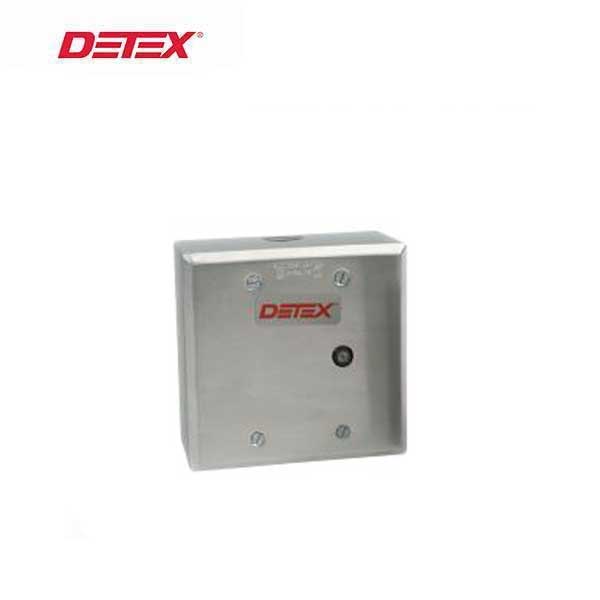

    The DTX-BE-961-1 Battery Eliminator is designed to power security devices such as the Detex ECL-230D, ECL-230X Series, ECL-600 battery powered series exit control locks and V40 alarmed rim exit device without reliance on batteries. Converts AC power to DC for supplying battery-operated devices.


    10' Flex Conduit included.



    • Powers security devices without reliance on batteries
    • Eliminating the need to annually change 9 volt batteries, saves money, prevents unnecessary battery disposal and creates a greener process
    • May be installed on the wall adjacent to the protected door quickly and easily
    • 10' flexible armored cable connects the battery eliminator to the security device without interfering with door use
    • LED provides visual status of power
    • For extra security, the connecting cable may be concealed in the door using a continuous electric hinge



    $211.63
    Get it shipped
    Today!
    Order within
    00 Hrs
    00 Mins
    00 Secs





Battery Supply

120VAC transformer to 12VAC

12VAC to 9VDC circuit board

Note: Powers up to three 9V battery devices

Output
9VDC output, jumper selectable to the security device
Application Powers security devices such as the ECL-230D,
ECL-230X Series
Dimensions 4-5/8" wide x 4-5/8" long x 2" deep







Downloads

DTX-BE-961-1

The DTX-BE-961-1 Battery Eliminator is designed to power security devices such as the Detex ECL-230D, ECL-230X Series, ECL-600 battery powered series exit control locks and V40 alarmed rim exit device without reliance on batteries. Converts AC power to DC for supplying battery-operated devices.


10' Flex Conduit included.



  • Powers security devices without reliance on batteries
  • Eliminating the need to annually change 9 volt batteries, saves money, prevents unnecessary battery disposal and creates a greener process
  • May be installed on the wall adjacent to the protected door quickly and easily
  • 10' flexible armored cable connects the battery eliminator to the security device without interfering with door use
  • LED provides visual status of power
  • For extra security, the connecting cable may be concealed in the door using a continuous electric hinge






Battery Supply

120VAC transformer to 12VAC

12VAC to 9VDC circuit board

Note: Powers up to three 9V battery devices

Output
9VDC output, jumper selectable to the security device
Application Powers security devices such as the ECL-230D,
ECL-230X Series
Dimensions 4-5/8" wide x 4-5/8" long x 2" deep
