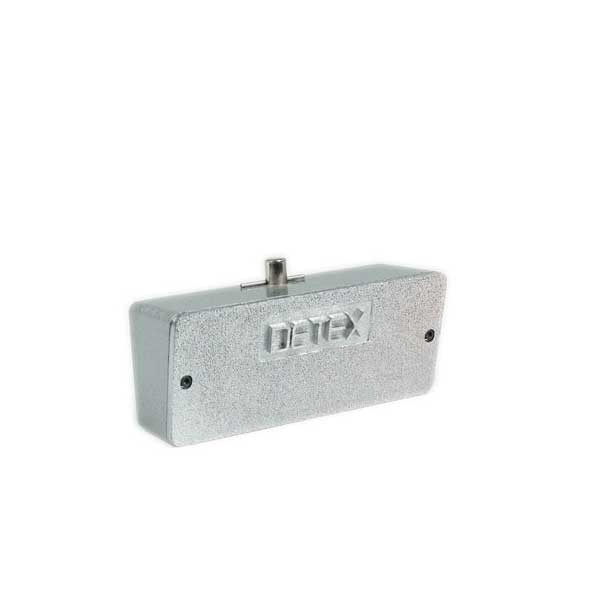

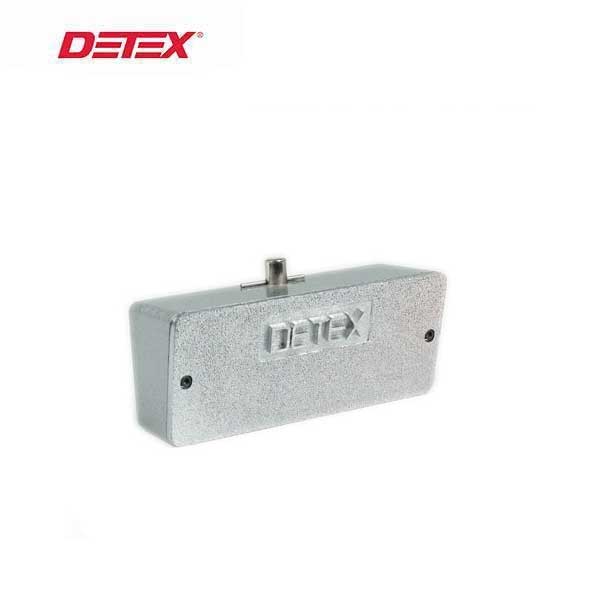

Detex - DTX-DDH-2250 - Double Door Holder - ECL-230 Series - V40 Series
$114.79
$137.75
Availability:
In Stock
- Product SKU: DTX-DDH-2250
- NSID: 24159
-
DTX-DDH-2250
The DTX-DDH-2250 Double Door Holder is designed for use with Detex Exit Control Locks to provide locking of the inactive leaf on an out-swinging double door. The release of the active leaf disengages the DDH-2250 allowing the inactive leaf to open freely.
Â
- Case hardened steel locking bolt
- Interchangeable pin
- Stainless steel spring providing instant release of lock bolt
- Cast housing of 3/16" durable zinc alloy
- Reversible for right or left hand doors
- 1/4" thick face plate
- Mounting kit contains screws, allen wrench, strike plate, door protection plate and templates
$114.79
Â
Â
| Application | Designed for use with Detex Exit Control Locks to provide locking of the inactive leaf on an outswinging double door. |
| Dimensions | 7 1/8" long x 2 1/4" deep x 2 7/8" high |
Â

Â
Downloads
DTX-DDH-2250
The DTX-DDH-2250 Double Door Holder is designed for use with Detex Exit Control Locks to provide locking of the inactive leaf on an out-swinging double door. The release of the active leaf disengages the DDH-2250 allowing the inactive leaf to open freely.
Â
- Case hardened steel locking bolt
- Interchangeable pin
- Stainless steel spring providing instant release of lock bolt
- Cast housing of 3/16" durable zinc alloy
- Reversible for right or left hand doors
- 1/4" thick face plate
- Mounting kit contains screws, allen wrench, strike plate, door protection plate and templates
Â
Â
| Application | Designed for use with Detex Exit Control Locks to provide locking of the inactive leaf on an outswinging double door. |
| Dimensions | 7 1/8" long x 2 1/4" deep x 2 7/8" high |
