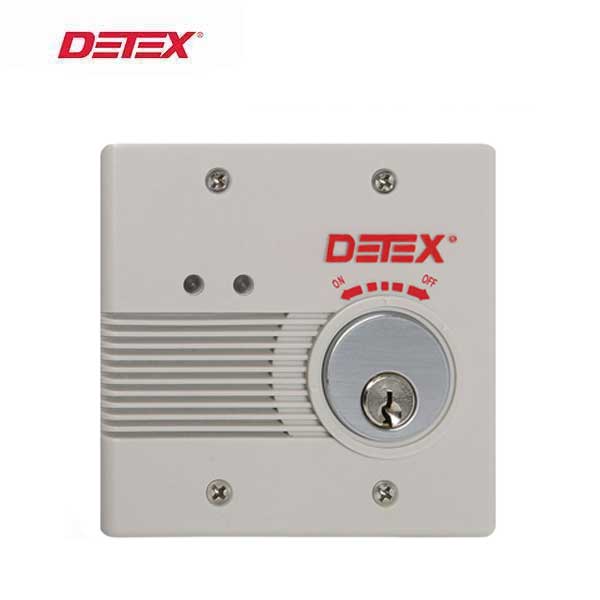

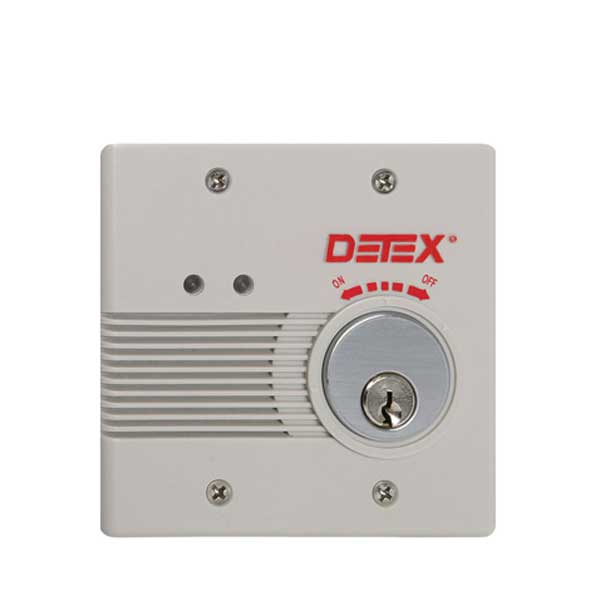

Detex - EAX-2500F - Exit Alarm - Flush Mount - Extended Bypass - AC/DC
- Product SKU: DTX-EAX-2500F
- NSID: 24161
-
DTX-EAX-2500F
The EAX-2500 exit alarm is designed for applications requiring a hardwired AC/DC alarm on secure doors. The alarm, with approximately 100dB, will sound when someone attempts an unauthorized exit. The EAX-2500, with its smaller size and designed to fit in a standard 4″x4″ outlet box makes it the choice for quick and easy installations on emergency exit and restricted doors.
EA-561 Warning sign and back box included.
Magnetic door contacts and transformer required but not included.
- Field selectable features allow the customer to choose status indicators and auto rearm option
- 100dB piezo horn provides security for restricted doors
- Patented cam assembly automatically adjusts for different size cylinders without spacers
- Inside key control uses mortise cylinder with standard Yale cam
- Key required to reset the alarm
- Tamper resistance housing and cover protects electronics
- Relay output for signaling external accessories
|
Key Stop |
Key removed only in 'ON' position |
| Cylinder |
7 pin cylinder requires 1/4 inch collar |
| Switch | MS-2049F magnetic switch |
| Transformer | 24VAC |
| Application | Double door |
| Dimensions | Fits in a standard 4x4 outlet box |
Downloads
