Detex - DTX-EAX-2500SK - Exit Alarm - Surface Mount - Magnetic Switch - Plug-in Transformer - Extended Bypass - 24VDC
- Product SKU: DTX-EAX-2500SK
- NSID: 36328
-
DTX-EAX-2500SK
The Detex EAX-2500 Series Exit Alarm is designed for applications requiring a hardwired AC/DC alarm on secure doors. The alarm, with approximately 100dB, will sound when an unauthorized exit occurs. The smaller size of the EAX-2500, which is designed to fit in a standard 4"x 4" outlet box, makes it the choice for quick and easy installations on emergency exit and restricted doors.
Included - Surface Mount AC/DC Powered Alarm, EA-561 Warning Sign, Black Box Included, Flush Magnetic Switch Contacts and 24VAC Transformer.

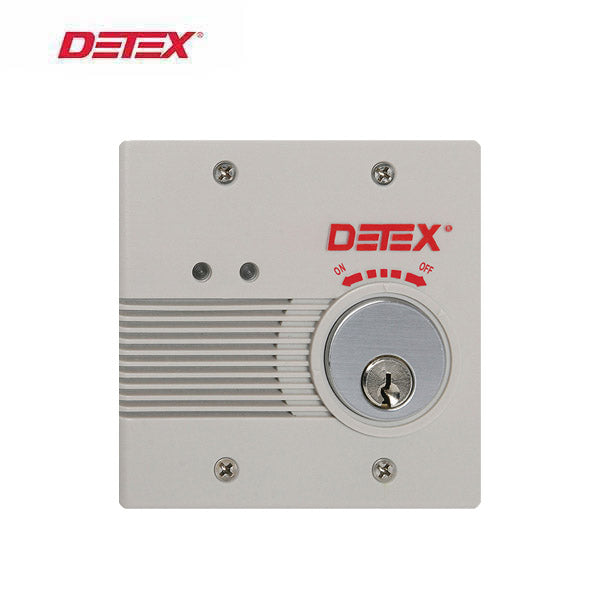

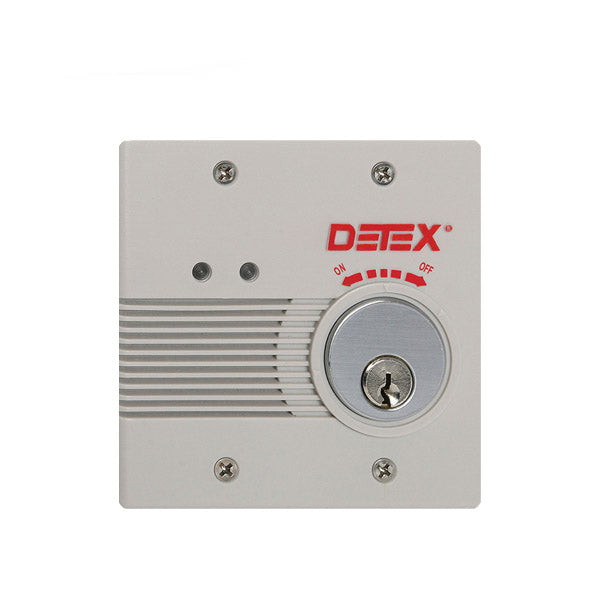

Shown with cylinder (Mortise cylinder sold separately)
EA-561 Warning sign and back box included.
- Field selectable features allow customer to choose status indicators and auto rearm options
- 100dB piezo horn provides security for restricted doors
- Patented cam assembly automatically adjusts for different size cylinders without spacers
- AC/DC hardwired power with optional 9VDC backup battery
- Silent arming feature is field selectable
- Inside key control uses mortise cylinder with standard Yale cam
- Key required to reset the alarm
- Tamper resistance housing and cover protects electronics
- Relay output for signaling external accessories
| Cylinder |
7 pin cylinder requires 1/4 inch collar |
| Switch | MS-2049S magnetic switch |
| Transformer | 24VAC |
| Application | Double door |
| Dimensions | Fits in a standard 4x4 outlet box |
Downloads
