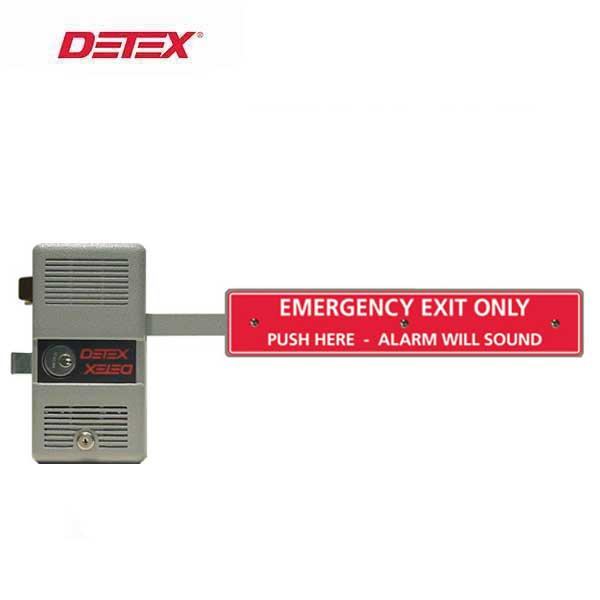

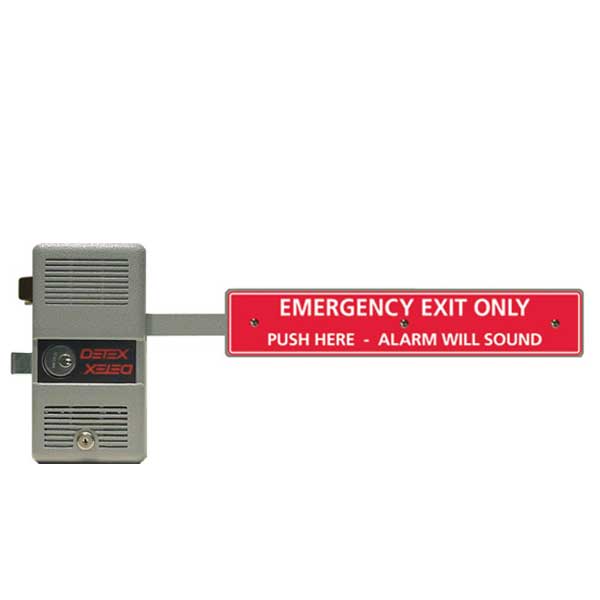

Detex - DTX-ECL-600 - Exit Device - Long Bar - Rugged Dead Bolt - Battery Powered - 9VDC
$378.02
$425.70
Availability:
In Stock
- Product SKU: DTX-ECL-600
- NSID: 24168
-
DTX-ECL-600
The ECL-600 is a fire-rated, code compliant, rugged, dependable relatching exit device with a steel plate and photo-luminescent sign providing managed security and a 100 decibel alarm for secondary fire exits.
9-volt Battery included
- 1" throw dead bolt and 3/4" dead locking latch bolt
- Relatching for additional security
- Saw resistant dead bolt
- Corrosion-resistant alloy lock
- 100 decibel alarm, powered by 9-volt battery
- Accepts 5-pink through 7-pin standard and interchangeable core rim cylinders
- Durable steel plate with photo luminescent sign
- Non-handed
- Locking and unlockin the dead bolt always alarms and disarms the alarm
- Resetting the alarm can only be accomplished with a control key
$378.02
|
Minimum Standard Door Width |
34" |
| Door Thickness | 1-3/4 - 2-1/4" |
| Door Types | Wood, Hollow Metal, or Aluminum |
| Screws |
Machine & Sheet metal |
| Battery |
9VDC |
| Application | Providing managed security and a 100 decibel alarm for secondary exits |
| Dimensions | 10 3/8" x 5 3/4" x 3 3/4" |
