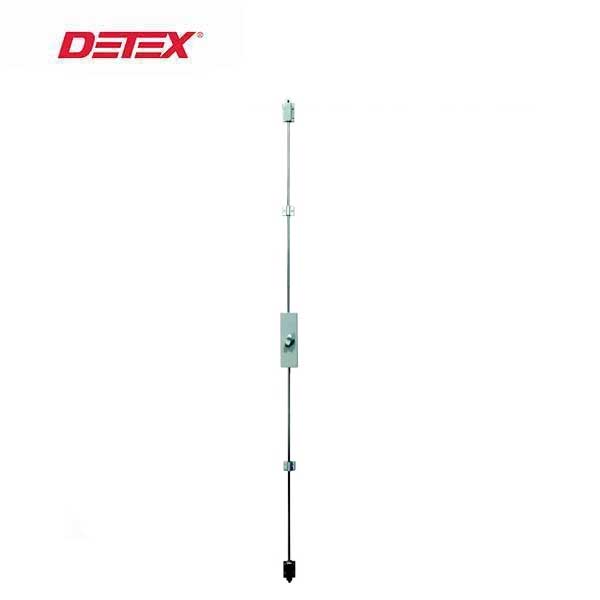

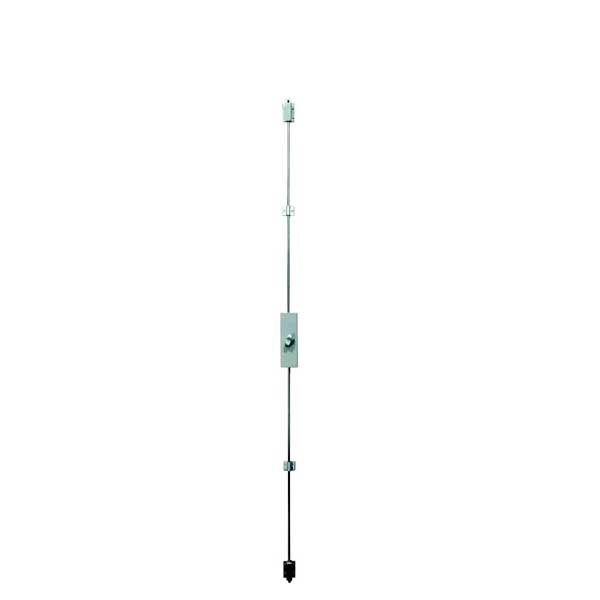

Detex - DTX-VRA-143B-84 - Vertical Rod Assembly - Active Leaf - Use With ECL-230
- Product SKU: DTX-VRA-143B-84
- NSID: 24178
-
DTX-VRA-143B-84
A Vertical Rod Assembly. DTX-VRA-143B-84, is used with a Detex Exit Control Lock (ECL-230D) to provide exit control security on an outswinging double door. In addition, it may be used on a single door installation to provide top and bottom latching instead of the single point latching provided by the Exit Control Lock itself.
Includes two overlapping plates for inactive leaf.
- 2 point locking provides extra security
- 3 versions to suit most conditions
- Automatically released when the ECL-230 device is activated
- Heavy duty 3/8" diameter bolts
- Secures a single or a pair of doors with one ECL-230D Series Lock
- Non-handed
| Size Accommodation | 80" - 120" |
| Bolts | Case hardened, heat treated and zinc plated |
| Rods | Steel, zinc plated |
| Housing |
Steel, zinc plated |
| Application |
Secures a single or a pair of doors with one ECL-230D Series Lock, allowing outside access to the active door |
