Detex - EAX-3500SK - Exit Alarm - Surface Mount - Timed Bypass - Magnetic Switch - Plug-in Transformer - 24VDC

In Stock
SKU: DTX-EAX3500SK
NSID: 36331

Get it shipped ! Order within:

Get it shipped ! Order within:

Get an Extra Hour with

$600.09
$642.25
$600.09

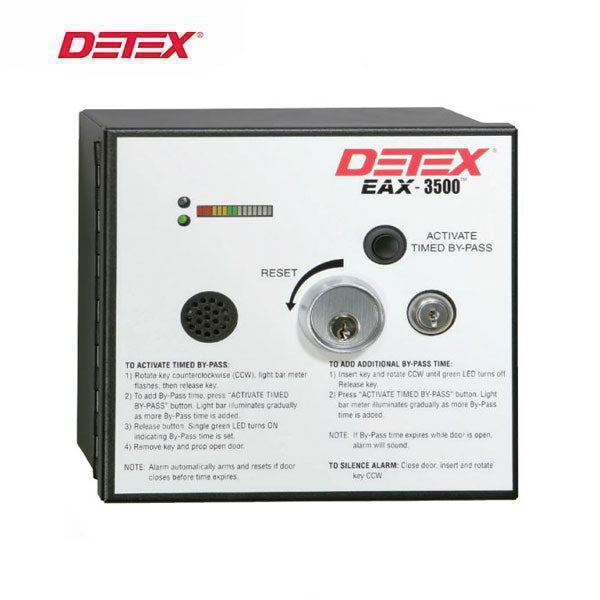

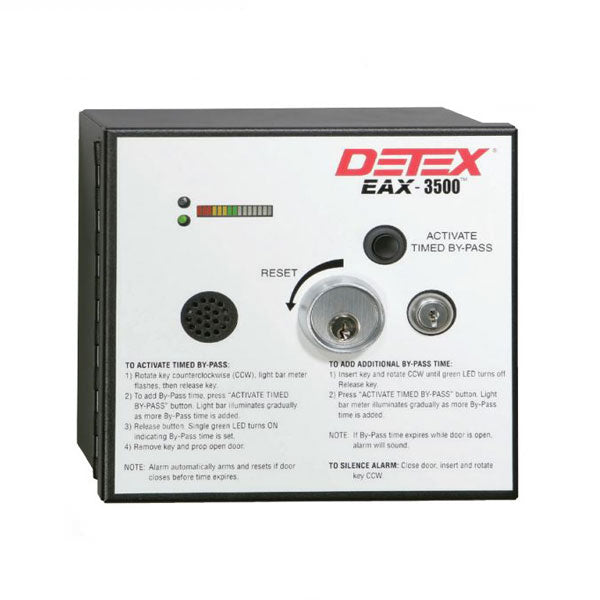

The Detex EAX-3500SK is designed for applications requiring a hard-wired, timed-bypass alarm with rechargeable backup battery. The 100dB alarm will sound when someone attempts an unauthorized exit. The EAX-3500 can be temporarily bypassed for deliveries and trash removal, but reminds manager to close and secure the door.

EA-561 Warning sign and back box included.

Shown with cylinder (Mortise cylinder sold separately).

Features

  • Allows manager to temporarily bypass the alarm, but does not allow the alarm to be turned off
  • Reminds manager to close and secure the door, minimizing door prop time
  • LEDs illustrate armed status and bypass time, allowing quick easy reference
  • Hard-wired low voltage power with rechargeable battery insures uninterrupted secure power feed
  • Maximum allowable bypass time can be factory set or field- adjusted to 5, 10, 20 or 40 minutes
  • Bypass time is easily set using two simple slide jumpers, located inside secured enclosure
  • 100dB alarm, powered by 12 to 24 VAC and rechargeable backup battery (included)
  • Low battery alert
  • Rechargeable backup battery provides 72-hours of operation
  • Timed bypass allows alarm to remain bypassed for allotted minutes, automatically rearming upon door closing
  • Accepts 5, 6 or 7-pin standard and interchangeable core mortise cylinders with a standard Yale cam
  • Patented cam assembly automatically adjusts for different size/length cylinders without the use of additional spacers or cylinder collars
  • Resetting the alarm can only be accomplished with a control key
Call 1-800-878-6604 for Bulk / Dealer Pricing!

Specifications

Mounting

Surface only

Amp Draw .083 Amps @ 24 VDC (Alarmed)
.110 Amps @ 24 VDC (Door Prop)
Mechanical Options Magnetic switch, Plug-in transformer
Cylinder
Accepts 5, 6 or 7-pin standard
Alarm 100 db
LED Lights Armed status and bypass time
Voltage
24VAC
Battery
Rechargeable
Certifications
UL Listed, ANSI/BHMA 156.29
