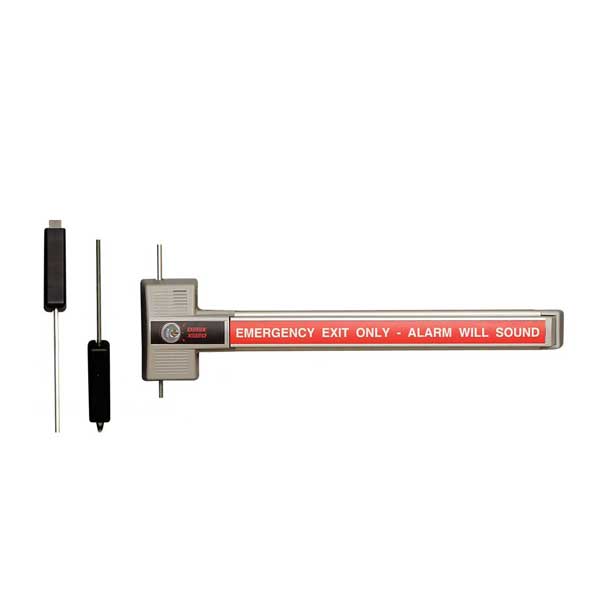

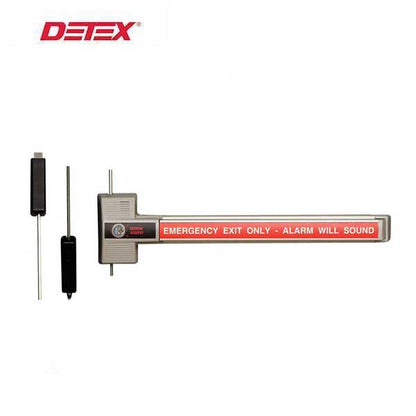

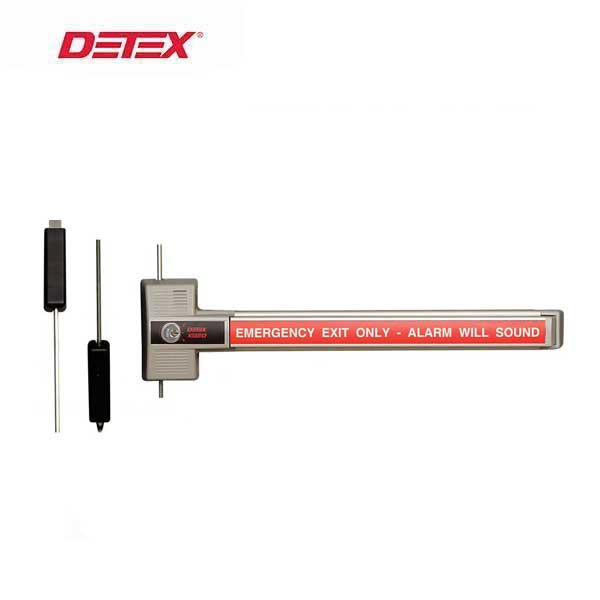

The DTX-ECL-230X-TDB-DX1 is a code compliant, battery alarmed, rugged 3-point dead bolt, panic device with photo-luminescent sign providing maximum security and a 100 decibel alarm for secondary exits.
Features
- 3-point, 1" throw dead bolt lock with just over 3/4” engagement with the frame, and 3/4” throw top and bottom locks with 5/8” engagement with the strike
- Saw resistant dead bolt
- Corrosion resistant alloy lock body 100 decibel alarm, powered by 9-volt battery (included)
- Surface/flush reversible strike Accepts 5-pin through 7-pin standard and interchangeable core rim cylinders without using cylinder collar
- Durable photo-luminescent sign absorbs light to then "glow in the dark" when lights are dimmed Locking and unlocking (dead bolt) always arms and disarms the alarm
- Non-handed
- Low profile meets International Building Code requirement allowing for 4” maximum projection off face of door
View full details
Details
Specifications:
| Door Types | Wood, Hollow Metal |
| Door Thickness: | 1-3/4" - 2-1/4" |
| Door Stile | Standard Device fits 36”-48” door |
| Fasteners | Machine and Sheet Metal Screws |
| Strike | Surface/flush reversible strike • Accepts 5-pin through 7-pin standard and interchangeable core rim cylinders without using cylinder collar |
| Alarm Status |
Resetting the alarm can only be accomplished with a control key |
| Alarm Sound |
100 decibel alarm, powered by 9-volt battery (included) |
