Detex

Detex - F1014D - Rim Exit Device - 48" Door Width - Less Cylinder - 630 Satin Stainless Steel - Fire Rated - SFIC - LHR - Alarmed

Detex - F1014D - Rim Exit Device - 48" Door Width - Less Cylinder - 630 Satin Stainless Steel - Fire Rated - SFIC - LHR - Alarmed

In stock
SKU DTX-F1014D-630-LHR-LD-IC7-EA-48 NSID 32818
$1,896.37
Get it shipped Today! Order within:

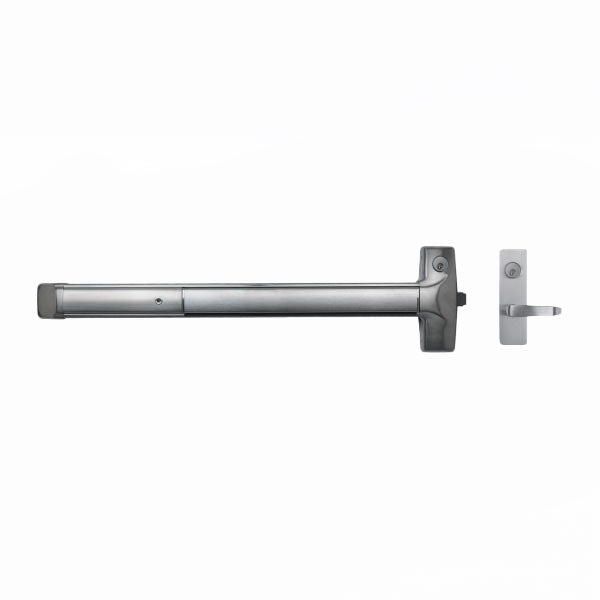

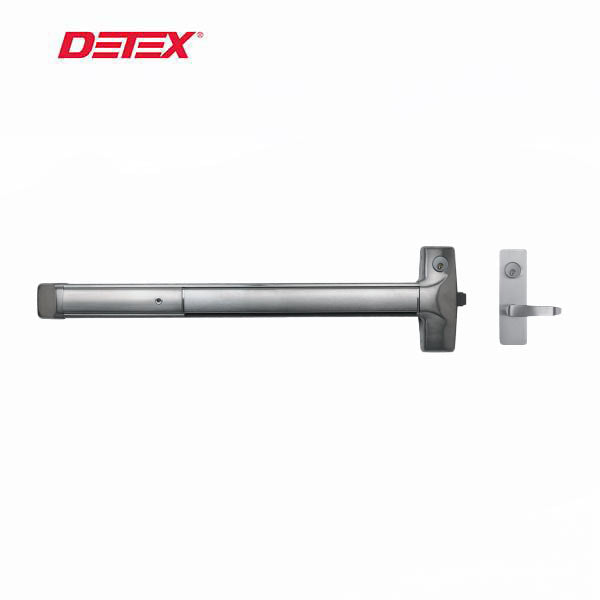

The Detex 1010 Series rim exit device is a super-heavy-duty panic and fire exit hardware for use on all types of single and double doors with mullions. The patented mounting plate and strike locator system ensure the easiest and most accurate installation of panic hardware available.

Features

  • Stainless steel deadlocking, Pullman-type latch bolt
  • Tested beyond 1,000,000 cycles - Twice the cycling required for Grade 1 UL testing
  • All exposed surfaces are finished over stainless steel with PVD, an environmentally-friendly finishing process
  • Outside trims are easily changed or re-keyed without removing the device from the door.
  • Gives the ability to lock outside lever trim from the inside, protecting people and property inside from outside threats
  • Non-handed
  • NOTE: This Item Does NOT Qualify for FREE Shipping- Please contact your sales representative to get shipping costs. Call 1-800-878-6604 between Monday and Friday, 9AM-6PM EST
Call 1-800-878-6604 for Bulk / Dealer Pricing!
View full details

Details


Door Types: Wood, Hollow Metal
Function: Active lever, no key cylinder; Wide lever handle
Handing: Left-Hand Reverse
Dogging: Less Dogging
Cylinder Mortise Cylinder, SFIC housing
Electrified Function Hardwired Electric Alarm
Door Thickness: 1-3/4" - 2-1/4"
Door Width: 48"
Door Stile: Standard Device fits 48” door
Fasteners: Machine and Self-Drilling Screws standard
Strike: Surface/flush reversible strike • Accepts 5-pin through 7-pin standard and interchangeable core rim cylinders without using cylinder collar
Fire-Rated: Yes
Certifications: Grade 1, UBC 97, UL10B/UL10C, ANSI/BHMA certified A156.3
Finish: 630 - Satin Stainless Steel
Warranty: 10 Year Mechanical, 3 Year Electrical
