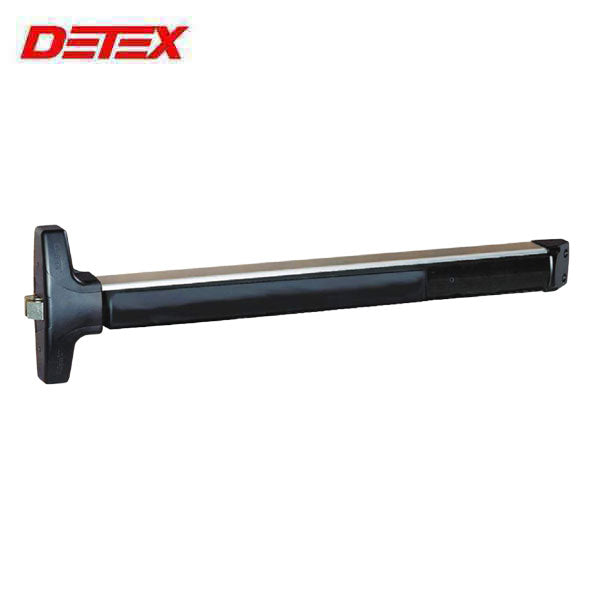

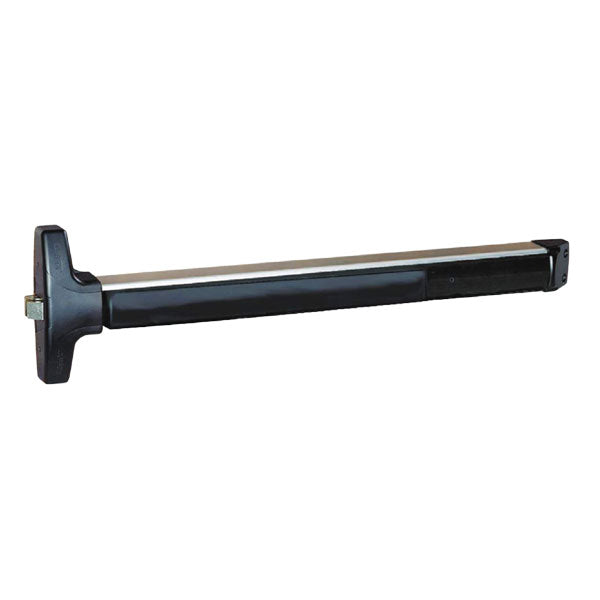

Detex - V40 - Rim Exit Device - Hex Dogging Only - 99 Strike - Fire Rated - 36" - Aluminum - Black Trim

Detex - V40 - Rim Exit Device - Hex Dogging Only - 99 Strike - Fire Rated - 36" - Aluminum - Black Trim

Available to order
SKU DTX-V40-HD-628-99-36 NSID 26841
$295.29$371.27On Sale You save $75.98 (20%)
Please Note: This product ships within 21 Days


The V40 Series rim exit device is secure and durable panic and fire exit hardware at an economical price. It is designed for use on all types of single and double doors with mullions. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available.

Features

  • Patented mounting plate and strike locator
  • Covers a 161 door prep
  • Stainless steel, 3/4" deadlocking Pullman-type latch bolt
  • Non-handed
  • Field sizeable
  • Outside trims are easily changed or rekeyed without removing device from door
  • 1/8 turn hex key dogging
  • Heavy-duty angled end cap
  • Heavy-duty ribbed aluminum rail extrusion
  • High impact ABS and anodized surfaces
  • Withstands over 1400 pounds of static pull force for greater security
  • Modular design accepts a variety of outside trims and functions

Call 1-800-878-6604 for Bulk / Dealer Pricing!
View full details

Details

Specifications

Door Width 36"
Door Thickness: 1-3/4" - 2-1/4"
Door Stile Fits standard doors with 99 strike
Fasteners Machine and Self-Drilling Screws
Dogging Hex Dogging - Standard
Bolt Stainless steel, 3/4" deadlocking Pullman-type latch bolt
Strike
 99- Surface Strike
Fire Rated 3 Hours
Certifications
 UL Listed Panic Hardware: UL Listed Fire Exit Hardware for 3 hours, maximum 4'x10' single doors and pairs of 4'x8' with F90KR keyed removable Mullion
Meets ADA requirements UBC 97, Standard 7-2 and UL10C for positive pressure
ANSI/BHMA certified A156.3
Meets NFPA 80 & 101 for Life Safety
Miami-Dade County, Florida NOA 10-0303.02
State of Florida Approval FL9052 EXP. 04/07/15
California State Fire Marshall -4140-0127:105 and 3725-0127:108
Manufacturer's Warranty 10 Year Mechanical
