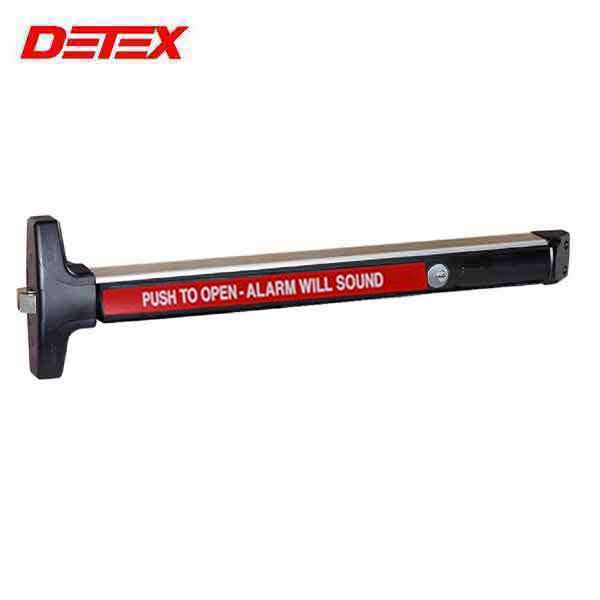

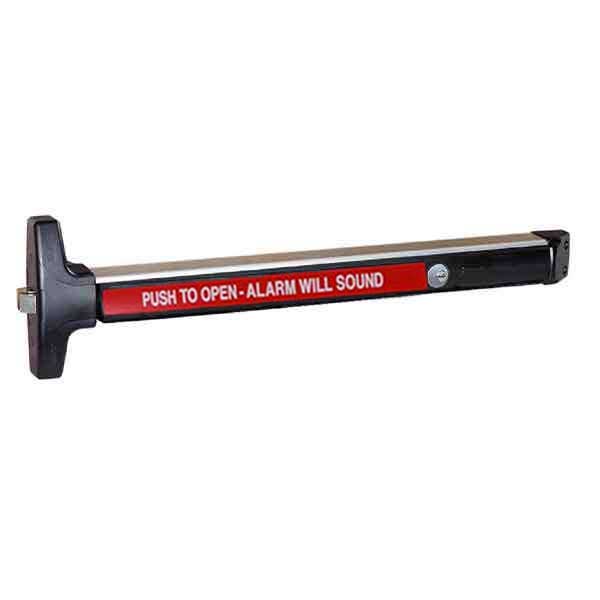

Detex - V40 - Rim Exit Device - Weatherized Exit Alarm (EBxW) - Aluminum - 36"
Detex - V40 - Rim Exit Device - Weatherized Exit Alarm (EBxW) - Aluminum - 36"
Detex - V40 - Rim Exit Device - Weatherized Exit Alarm (EBxW) - Aluminum - 36"
Detex - V40 - Rim Exit Device - Weatherized Exit Alarm (EBxW) - Aluminum - 36"
Detex - V40 - Rim Exit Device - Weatherized Exit Alarm (EBxW) - Aluminum - 36"

Detex - V40 - Rim Exit Device - Weatherized Exit Alarm (EBxW) - Aluminum - 36"

$499.99 $599.99
Availability: In Stock
Wishlist
  • Product SKU: DTX-V40-EBXW-CD-628-99-36
  • NSID: 7618

  • DTX-V40-EBXW-CD-628-99-36
    Item Number: 6831

    The V40 - EBxW device option is designed for doors and gates requiring a stand alone, battery powered, alarmed, weatherized panic device. The alarm, with approximately 100dB, will sound when someone attempts to exit, alerting management that an unauthorized exit has occurred.

    Features

    Push bar Length 36"
    Door Thickness: 1-3/4" - 2-1/4"
    Door Stile Fits standard doors with 99 strike
    Fasteners Machine and Self-Drilling Screws
    Dogging Cylinder Dogging - Standard
    Bolt Stainless steel, 3/4" deadlocking Pullman-type latch bolt
    Rearm
    		 Field selectable key rearm or 2 min. auto rearm
    Alarm Type
    		 Visual and audible arming indicators
    Alarm Status
    		 Armed and disarmed field selectable status indicator
    Alarm Sound
    		 100+ Decibel Alarm
    Certifications
    		 UL Listed Panic Hardware: UL Listed Fire Exit Hardware for 3 hours, maximum 4'x10' single doors and pairs of 4'x8' with F90KR keyed removable Mullion
    Meets ADA requirements UBC 97, Standard 7-2 and UL10C for positive pressure
    ANSI/BHMA certified A156.3
    Meets NFPA 80 & 101 for Life Safety
    Miami-Dade County, Florida NOA 10-0303.02
    State of Florida Approval FL9052 EXP. 04/07/15
    California State Fire Marshall -4140-0127:105 and 3725-0127:108


    Download Installation Instructions Here


$499.99
Get it shipped
Today!
Order within
00 Hrs
00 Mins
00 Secs

DTX-V40-EBXW-CD-628-99-36
Item Number: 6831

The V40 - EBxW device option is designed for doors and gates requiring a stand alone, battery powered, alarmed, weatherized panic device. The alarm, with approximately 100dB, will sound when someone attempts to exit, alerting management that an unauthorized exit has occurred.

Features

Push bar Length 36"
Door Thickness: 1-3/4" - 2-1/4"
Door Stile Fits standard doors with 99 strike
Fasteners Machine and Self-Drilling Screws
Dogging Cylinder Dogging - Standard
Bolt Stainless steel, 3/4" deadlocking Pullman-type latch bolt
Rearm
 Field selectable key rearm or 2 min. auto rearm
Alarm Type
 Visual and audible arming indicators
Alarm Status
 Armed and disarmed field selectable status indicator
Alarm Sound
 100+ Decibel Alarm
Certifications
 UL Listed Panic Hardware: UL Listed Fire Exit Hardware for 3 hours, maximum 4'x10' single doors and pairs of 4'x8' with F90KR keyed removable Mullion
Meets ADA requirements UBC 97, Standard 7-2 and UL10C for positive pressure
ANSI/BHMA certified A156.3
Meets NFPA 80 & 101 for Life Safety
Miami-Dade County, Florida NOA 10-0303.02
State of Florida Approval FL9052 EXP. 04/07/15
California State Fire Marshall -4140-0127:105 and 3725-0127:108


Download Installation Instructions Here
