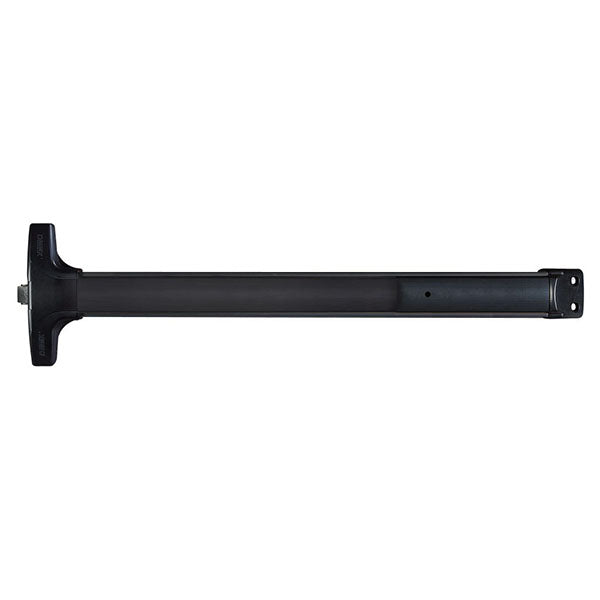

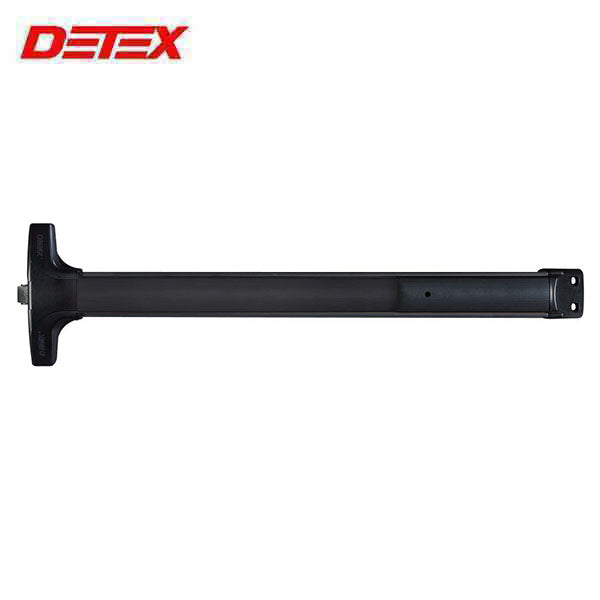

Detex - V40 - Wide Stile Rim Exit Device - Less Dogging - 99 Strike - Fire Rated - 48" - Aluminum - Black Trim
In Stock
SKU:
DTX-V40-EXXW-LD-BLK-711-99-48
NSID:
67874
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $488.06
-
$585.67 - $488.06
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The V40 Series rim exit device is secure and durable panic and fire exit hardware at an economical price. It is designed for use on all types of single and double doors with mullions. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available.
Features
- Patented mounting plate and strike locator
- Covers a 161 door prep
- Stainless steel, 3/4" deadlocking Pullman-type latch bolt
- Non-handed
- Field sizeable
- Outside trims are easily changed or rekeyed without removing device from door
- Heavy-duty angled end cap
- Heavy-duty ribbed aluminum rail extrusion
- High impact ABS and anodized surfaces
- Withstands over 1400 pounds of static pull force for greater security
- Modular design accepts a variety of outside trims and functions
Specifications
| Door Width | 48" |
| Door Thickness: | 1-3/4" - 2-1/4" |
| Door Stile | Fits standard doors with 99 strike |
| Fasteners | Machine and Self-Drilling Screws |
| Dogging | Less Dogging (None) |
| Bolt | Stainless steel, 3/4" deadlocking Pullman-type latch bolt |
| Strike |
99 - Surface Strike |
| Fire Rated | 3 Hours |
| Certifications |
UL Listed Panic Hardware: UL Listed Fire Exit Hardware for 3 hours, maximum 4'x10' single doors and pairs of 4'x8' with F90KR keyed removable Mullion Meets ADA requirements UBC 97, Standard 7-2 and UL10C for positive pressure ANSI/BHMA certified A156.3 Meets NFPA 80 & 101 for Life Safety Miami-Dade County, Florida NOA 10-0303.02 State of Florida Approval FL9052 EXP. 04/07/15 California State Fire Marshall -4140-0127:105 and 3725-0127:108 |
| Manufacturer's Warranty | 10 Year Mechanical |
Installation:
Downloads
