Devision / HDCVI / 2MP / Eyeball Camera / Fixed / 2.8mm Lens / 20m IR / DVA-C228-P
In Stock
SKU:
DVA-C228-P
NSID:
19006
- $15.99
-
$23.99 - $15.99
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

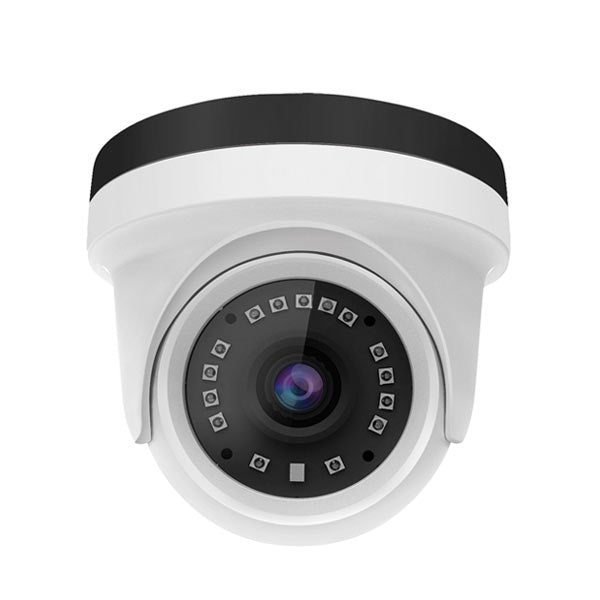

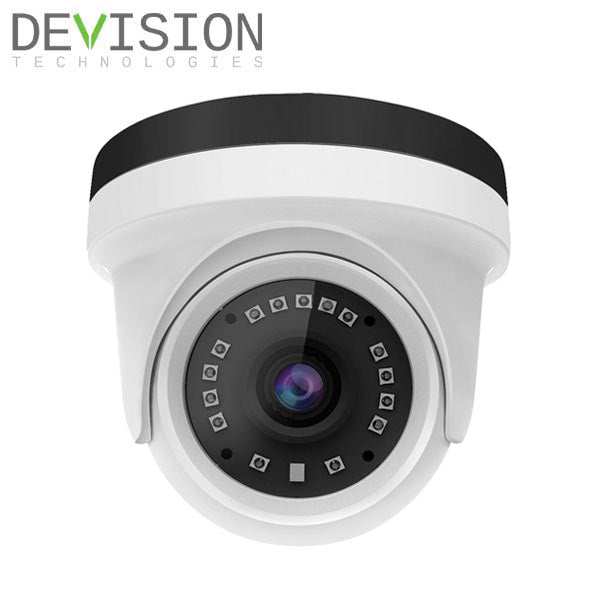

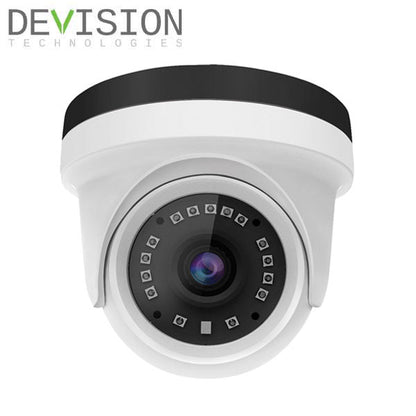

The Devision C228-P 2MP Fixed Eyeball HDCVI Camera is an effective, professional security camera. The device offers up to 2 megapixels resolution recording with a fixed 2.8mm lens.
Features
- 1/3" CMOS Sensor
- Full HD resolution 1920 x 1080
- 15Pcs IR LEDs, IR Range 20m
- Supports TVI,AHD, CVI, CVBS output
- UTC Coaxial Control
- Easy installation, HD video transfer over coaxial cable
- Customer Service: USA: 800-860-7999 | Canada: 800-914-6008
- Call 1-800-878-6604 for Dealer Prices!
Specifications
| Camera | |
|---|---|
| Image Sensor | 1/3" 2.0MP CMOS Sensor |
| Image Resolution | 1920x1080 |
| Effective Pixels | 2.0MP |
| TV System | PAL/NTSC |
| Electronic Shutter | 1/10s~1/100,000s |
| S/N Ratio | ≥50dB |
| Min. Illumination | 0.05Lux@ (F2.0, AGC ON), 0LUX with IR |
| Scanning System | Progressive Scan |
| Lens | |
|---|---|
| Lens |
Board Lens 2.8mm/F2.0 |
| FOV | H: 73.9°, V: 40° D: 86° |
| Lens Type | Fixed |
| Night Vision | |
|---|---|
| Infrared SMD LED | 10µ x 15 PCS |
| Infrared Distance | 20m |
| IR Cut Filter | Yes |
| IR Status | Under 10 Lux by CDS |
| IR Power On | CDS Auto Control |
| Day & Night | Auto (ICR) / Color / B&W |
| Camera Features | |
|---|---|
| OSD Menu Language | Support |
| White Balance | Auto |
| Gain Control | Auto |
| UTC | Support |
| General | |
|---|---|
| Housing |
Plastic |
| Operation Temperature | -20°C ~ 60°C |
| Working Humidity | 10% ~ 90% |
| Power Source |
DC12V±10%, 250mA |
| Dimensions |
100 x 100 x 85mm |
| Weight |
≤190g |
Dimensions (mm)
Downloads
Data Sheet Installation Guide
