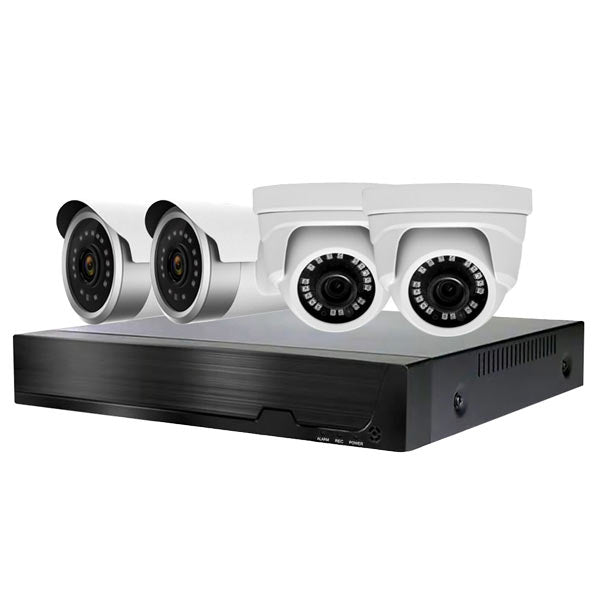

*Discontinued* Devision / HDCVI DVR Kit / 4 Channels / 5MN XVR / 1TB HDD / 2 x 4MP Eyeball Cameras + 2 x 4MP Bullet Cameras w/ 4mm Lens / DVA-XD2504-4441
Out of Stock
SKU:
DVA-XD2504-4441
NSID:
19019
- $243.00
-
- $243.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The Devision C440-P 4MP Fixed Eyeball HDCVI Camera and Devision A440-P 4MP Fixed Bullet HDCVI Camera are both effective professional security cameras. The devices offer up to 4 megapixels resolution recording with fixed 4mm lenses. With this kit, you get 2 of the Devision C440-P Cameras, 2 of the Devision A440-P Cameras, as well as a Devision XD2504 4 Channel 5MN XVR with 1TB HDD included.
Features
- Camera Features:
- 1/3" 4MP CMOS Sensor
- Supports AHD High Definition Transfer
- 12PCS IR LEDs, IR Range 25m
- Resolution: 2688×1520
- Long Distance, No Delay
- Adopt 3D-DNR, Better Low Light Quality
- Supports ICR Auto Switch
- XVR Features:
- Included 1TB HDD Storage
- TVI / AHD / DVR / NVR / CVI 5-in-1 function, multi-mode input
- Supports HD analog video encoding
- Supports HD analog + HD network video input
- Supports pure HD network video input
- Supports various mobile phone monitoring (iPhone & Android)
- Supports multiple web browsers (IE / Chrome / Firefox / Safari)
- Supports VGA,HDMI output at the same time
- Supports STVI function
- Supports coaxial audio
- Supports Multi-Language
- Customer Service: USA: 800-860-7999 | Canada: 800-914-6008
- Call 1-800-878-6604 for Dealer Prices!
- $243.00
-
- $243.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
x
Eyeball Camera Specifications
| Camera | |
|---|---|
| Image Sensor | 1/3" 4.0MP CMOS Sensor |
| Image Resolution | 2688x1520 |
| Effective Pixels | 4.0MP |
| TV System | PAL/NTSC |
| Electronic Shutter | 1/25s~1/100,000s |
| S/N Ratio | ≥50dB |
| Min. Illumination | 0.01Lux@ (F1.2，AGC ON) |
| Scanning System | Progressive Scan |
| Lens | |
|---|---|
| Lens |
Board Lens 4mm/F1.6 |
| Lens Type | Fixed |
| Night Vision | |
|---|---|
| Infrared SMD LED | 14µ x 12 PCS |
| Infrared Distance | 25m |
| IR Cut Filter | Yes |
| IR Status | Under 10 Lux by CDS |
| IR Power On | CDS Auto Control |
| Day & Night | Auto (ICR) / Color / B&W |
| Camera Features | |
|---|---|
| White Balance | Auto |
| Gain Control | Auto |
| Noise Reduction | 3D DNR |
| WDR | Yes |
| General | |
|---|---|
| Housing |
Plastic |
| Operation Temperature | -10°C ~ 50°C Rh 95% Max |
| Storage Temperature |
-20°C ~ 60°C Rh 95% Max |
| Power Source |
DC12V±10%, 230mA |
| Dimensions |
100 x 85 x 85mm |
| Weight |
≤190g |
Dimensions (mm)
Bullet Camera Specifications
| Camera | |
|---|---|
| Image Sensor | 1/3" CMOS Censor |
| Image Resolution | 2688x1520 |
| Effective Pixels | 4.0MP |
| TV System | PAL/NTSC |
| Electronic Shutter | 1/25s ~ 1/100,000s |
| S/N Ratio | ≥50dB |
| Min. Illumination | 0.01Lux@（F1.2，AGC ON) |
| Scanning System | Progressive Scan |
| Lens | |
|---|---|
| Lens |
Board Lens 4mm/F1.6 |
| Lens Type | Fixed |
| Night Vision | |
|---|---|
| Infrared SMD LED | 14µ x 12 PCS |
| Infrared Distance | 25m |
| IR Cut Filter | Yes |
| IR Status | Under 10 Lux by CDS |
| IR Power On | CDS Auto Control |
| Day & Night | Auto (ICR) / Color / B&W |
| Camera Features | |
|---|---|
| White Balance | Auto |
| Gain Control | Auto |
| Noise Reduction | 3D DNR |
| WDR | Yes |
| General | |
|---|---|
| Housing |
Plastic |
| Bracket |
Yes |
| Operation Temperature | -10°C ~ 50°C Rh 95% Max |
| Storage Temperature | -20°C ~ 60°C Rh 95% Max |
| Power Source |
DC12V±10%, 230mA |
| Dimensions |
180 x 75 x 85mm |
| Weight |
≤230g |
Dimensions (mm)
XVR Specifications
| System | |
|---|---|
| Compression | H.265 |
| O/S |
Embedded Linux O/S |
| Video and Audio | |
|---|---|
| Video Input | 4CH, BNC |
| Preview Ability | 4*5MN@20fps（4 in 1） 4*4MN@25fps（4 in 1） 4*1080N@25fps（4 in 1 |
| Coding Ability | 4*5MN@12fps（4 in 1） 4*4MN@17fps（4 in 1） 4*1080N@15fps（4 in 1 |
| Decoding Ability | 4*5MN@12fps（4 in 1） 4*4MN@17fps（4 in 1） 4*1080N@15fps（4 in 1 |
| Video Output | 1CH VGA;1CH HDMI |
| Channel Mode | Supports any channel mode combination (5MN analog + 1080P digital) |
| Audio In & Out | 1/1, RCA |
| Video Standard | PAL/NTSC |
| Storage | |
|---|---|
| SATA | 1x SATA Interface |
| Capacity | 1TB Included Up to 8TB Max. |
| File Format | H.264, H.265, AVI |
| Backup Mode | USB |
| Playback and Backup | |
|---|---|
| Video Playback | Auto/Timing/ Motion Detection |
| Sync Playback | 4CH |
| Search Mode | Point-in-time search, calendar search, event search, channel search |
| Network | |
|---|---|
| Ethernet | 10 / 100 Mbps,1 RJ45 |
| Network Function | TCP/IP, DHCP, DDNS, NTP, SMTP |
| Interoperability | ONVIF Standard |
| Smart Phone | iPhone, Android |
| Hardware | |
|---|---|
| Network Interface | 1x RJ45 |
| USB Interface | 2x USB2.0 |
| PTZ Interface | Supports RS485 PTZ |
| Controlling Device | Mouse |
| Special | |
|---|---|
| Multi-Screen Display | 1/4 |
| Alarm Method | Email Alarm |
| Two-Way Talk | Support |
| Alarm Snapshot | Support |
| Intelligent Analysis | Supports Motion Detection, Video Tampering, Video loss |
| General | |
|---|---|
| Power Supply | DC12V /2A |
| Consumption | ≤ 8 W (without HDD) |
| Working Temperature | -10°C ~ 60°C |
| Working Humidity | 10% ~ 90% Humidity |
| Dimensions | 250 x 223 x 42mm |
| Weight | 800g |
Layout
Downloads
Eyeball Camera Data Sheet
Bullet Camera Data Sheet
XVR Data Sheet
Camera Guide
XVR Manual
