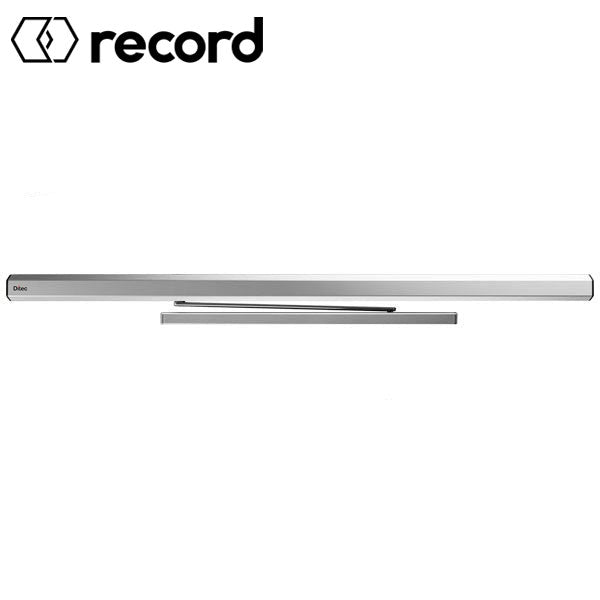

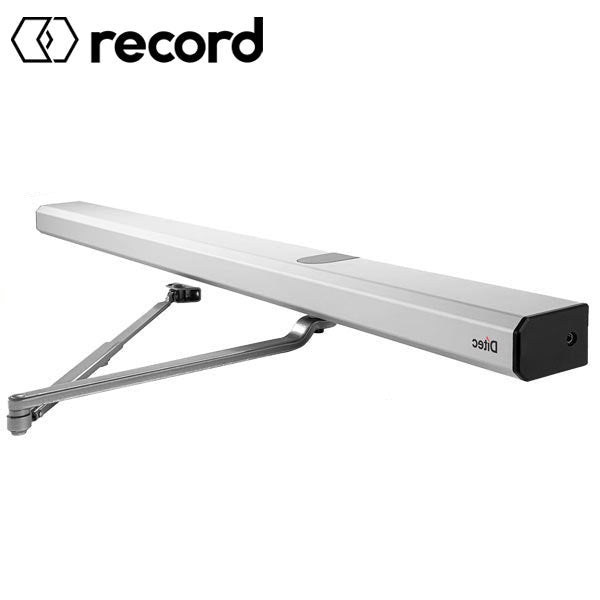

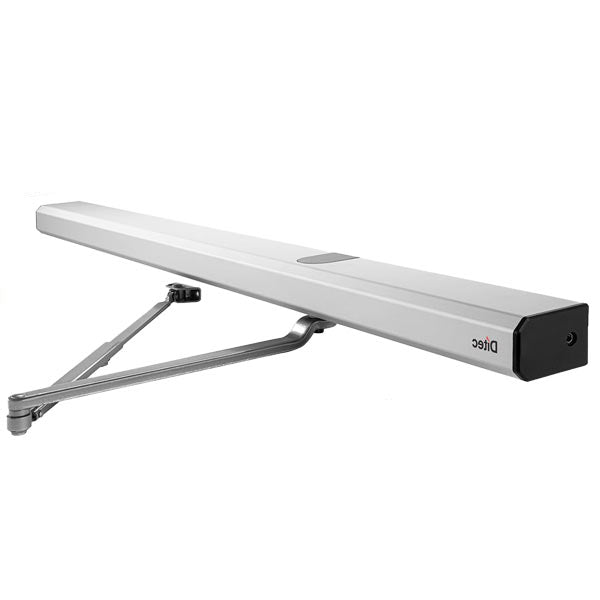

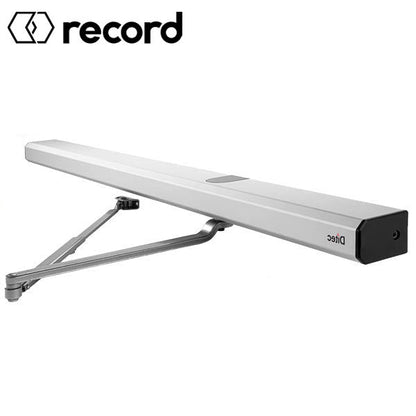

*Discontinued* Record - HA7 - Low Profile Swing Door Operator - PUSH & PULL Arms - Non Handed - For Single Interior Doors (Up to 48") - Clear Finish
Out of Stock
SKU:
ENT-HA7-100
NSID:
22413
- $1,679.87
-
$0.00 - $1,679.87
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The Ditec HA7 low-energy operator has the same power and durability of the standard profile, but with a smaller header for applications where clearance is limited. The low-profile is available as surface applied, and can be found in hospitals, retail stores, schools & universities, airports, convention centers, casinos, industrial buildings and offices.
Clear Finish
Push Arm and Push Arm included - Non Handed
Available for up to 48" doors
- Non-handed
- Electrician not required with option of simply plugging into a standard 120vac wall outlet
- Power assist
- Push and Go
- Parking (multiple-point hold open)
- Privacy Function (patent pending)
- Ratchet Function
- Electric-strike integration (no external relays required)
- UL325/UL10C certified
- For use on single interior doors
- $1,679.87
-
$0.00 - $1,679.87
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
x| Application | Single Interior Doors |
| Header Size: | 39" |
| Manual Opening/Closing Force: | Adjustable 5 to 15 lbs. |
| Handing: | Non-Handed |
| Header Size: | Height: 1.875” Depth: 3” Length: 39.5” |
| Arm: | Push And Go |
| On/Off/Hold Open Switch: | Yes |
| Power Adapter: | Yes |
| Power Supply: | 120 VAC +10/-15%, 50/60 Hz |
| Power Consumption: | Max 90 W |
| Auxiliary Voltage: | 24 V DC, max 400 mA |
| Electromechanical locking connection: |
12 V DC, max 1200 mA or 24 V DC, max 600 MA |
| Ambient Temperature: | -20° C to +45° C |
| Relative Humidity: | Max 95% |
| Door Weight (max): | 200 lbs |
| Door Width (max): | 48” |
| ANSI/BHMA A156.19 Compliant: | Yes |
| UL/CUL Listing for UL 325/UL10C: | Yes |
| Surface Mounting: | Yes |
| Door Opening Angle (PUSH): | 80°-110°, with reveal 0-5 1/8” |
| Door Opening Angle (PULL): | 80°-110°, with reveal 0-2” |
| Opening Time: | Variable between 4.5-12 seconds |
| Closing Time: | Variable between 4.5-12 seconds |
