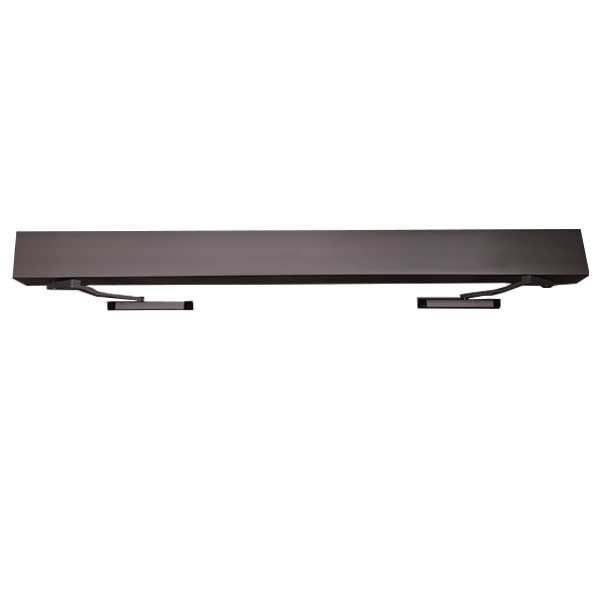

Ditec - HA8-SP - Standard Profile Swing Door Operator - Left PUSH- Right PUSH - Antique Bronze - 75" For Double Doors
Ditec - HA8-SP - Standard Profile Swing Door Operator - Left PUSH- Right PUSH - Antique Bronze - 75" For Double Doors
Ditec - HA8-SP - Standard Profile Swing Door Operator - Left PUSH- Right PUSH - Antique Bronze - 75" For Double Doors
Ditec - HA8-SP - Standard Profile Swing Door Operator - Left PUSH- Right PUSH - Antique Bronze - 75" For Double Doors
Ditec - HA8-SP - Standard Profile Swing Door Operator - Left PUSH- Right PUSH - Antique Bronze - 75" For Double Doors
Ditec - HA8-SP - Standard Profile Swing Door Operator - Left PUSH- Right PUSH - Antique Bronze - 75" For Double Doors
Ditec - HA8-SP - Standard Profile Swing Door Operator - Left PUSH- Right PUSH - Antique Bronze - 75" For Double Doors
Ditec - HA8-SP - Standard Profile Swing Door Operator - Left PUSH- Right PUSH - Antique Bronze - 75" For Double Doors
Ditec - HA8-SP - Standard Profile Swing Door Operator - Left PUSH- Right PUSH - Antique Bronze - 75" For Double Doors

Ditec - HA8-SP - Standard Profile Swing Door Operator - Left PUSH- Right PUSH - Antique Bronze - 75" For Double Doors

$2,665.00 $6,460.00
Available: In Stock
Wishlist
  • Product SKU: ENT-W9-112-75
  • ENT-W9-112-75

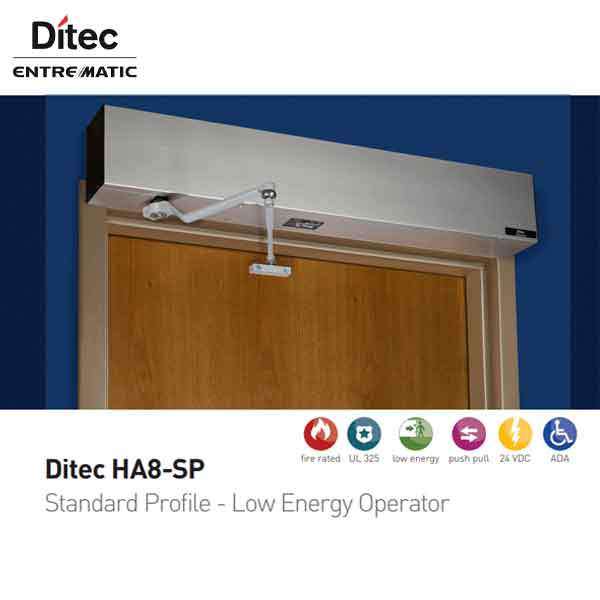

    The Ditec HA8-SP is the standard profile low-energy operator that works in nearly every application including high-traffic and exterior. The standard profile can be installed in hospitals, retail stores, schools & universities, airports, convention centers, casinos, industrial buildings and offices.

    Antique Bronze Finish
    Available in 75" for Double Doors
    Left Push Arm - Right Push Arm

    • Quality Heavy Duty Commercial Construction
    • High precision gears made for sustained long-term use
    • Electro Mechanical Design for simple dependable operation
    • Permanent lubrication for maintenance free operation
    • Cast alloy gear box
    • 1/8th HP motor
    • Digital control board
    • Advanced Technology
    • On-board programming
    • Built in strike/mag lock relay - fail safe or fail secure
    • Separate inputs for activation and safety devices
    • Plug-n-play design for fast trouble free installation
    • Compatible with safety and activation devices
    • Integrates with building access & security systems
    • Adjustable spring tension overcomes wind and stack pressure
    • One-way clutch allows for easy manual door operation
    • Powerful and Quiet, Yet Forgiving
    • XP Spring available for extra closing force
    • Concealed adjustable door stop - eliminates external door stops
    • Ultra quiet operation - noise free in both automatic and manual modes
    • Durable
    • Built to outlast the competition
    • Perfect for high traffic locations

    $2,665.00

Application Double Doors
Motor 1/8 HP
Gear Grease High Wear Protection
Manual Opening/Closing Force Adjustable 5 to 30 lbs.
Single and Dual Digital Control
Box
Single HA-8 w/Data, 24 VDC, 3 AMP
Operating Voltage (Standard) 115VAC
Magnetic Limit Switches Yes
Arm Connection 1” Solid Spline Spindle
Adjustable Stop Yes
Operator Switch On-Off-Hold Open
Adjustable Spring Tension Yes
Mechanical Clutch Standard
Push or Pull Application PUSH
Easy Manual Operation Yes
Surface Mounting Yes
Concealed Mounting Center Pivot, Hinge, or Offset Pivots
Push Reveal 0" to 14"
Pull Reveal 0" to 4"
Electric Strike Output Power 24 VDC
Fire Door Compatibility UL10C Approved
Mechanical Clutch Standard
Circuit Protection 3 amp Fuse
Easy Manual Operation Yes
Meets ANSI 156.19 Yes
Fire Door Compatibility UL10C Approved



Watch Complete Installation Video Here

Spec Sheet

Installation Manual
