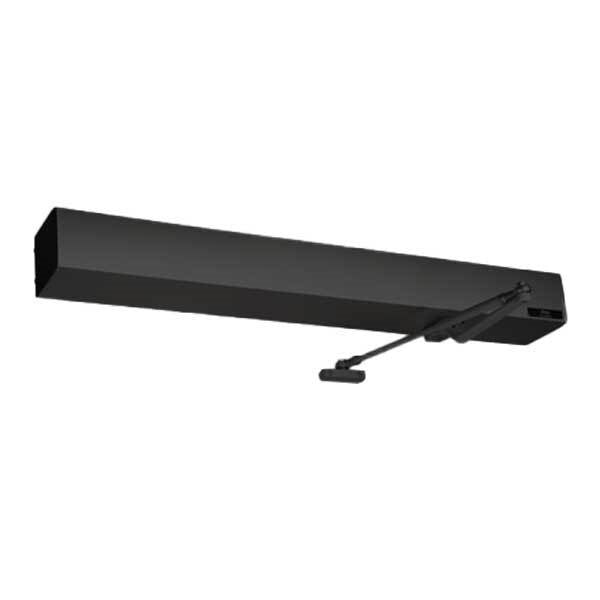

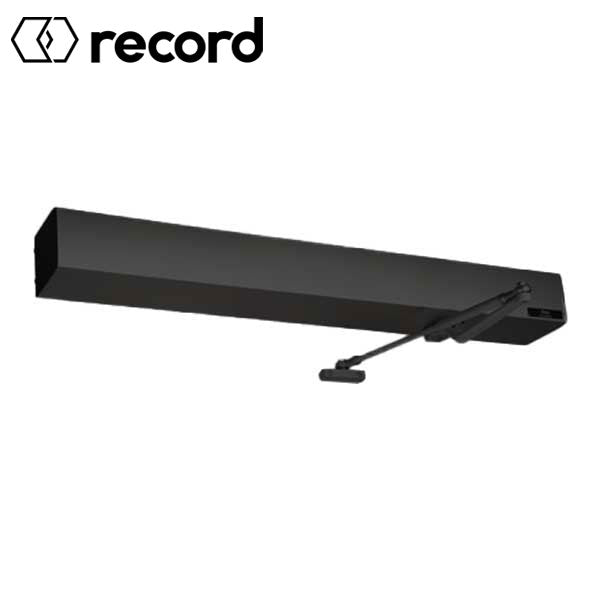

Record - HA9 - Full Feature Door Operator - PULL Arm - Non Handed - Black (39" to 51") For Single Doors
- $1,847.25
-
$3,984.00 - $1,847.25
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
ENT-HA9-112

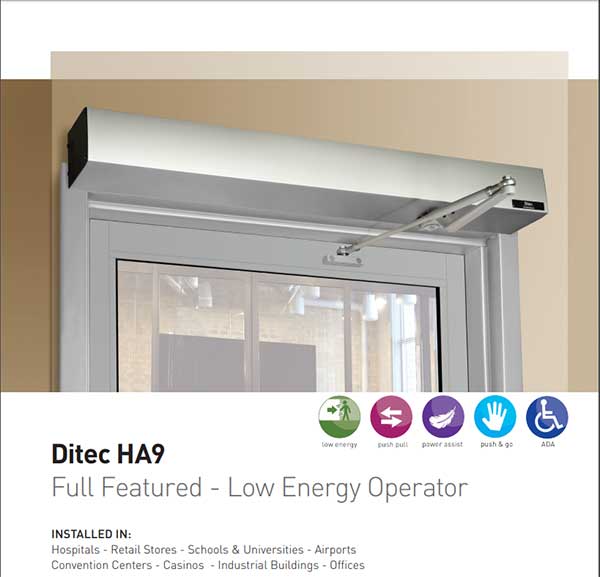

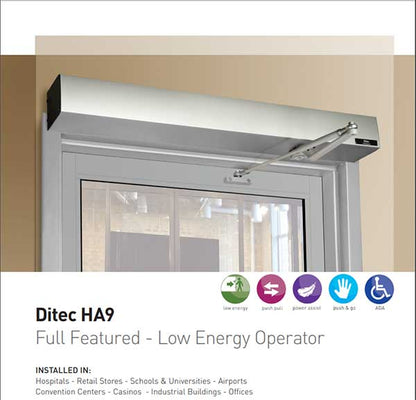

The Ditec HA9 low-energy operator comes loaded with features while offering the same quiet, dependable operation you've come to expect in the low-profile header size you love. The HA9 is perfect for high-traffic locations including schools & universities, hospitals, retail stores, airports, convention centers, casinos, industrial buildings and offices.
Tuxedo Black Finish
Pull Arm - Non Handed
Available in 39", 45" or 51" sizes (Select Below)
-

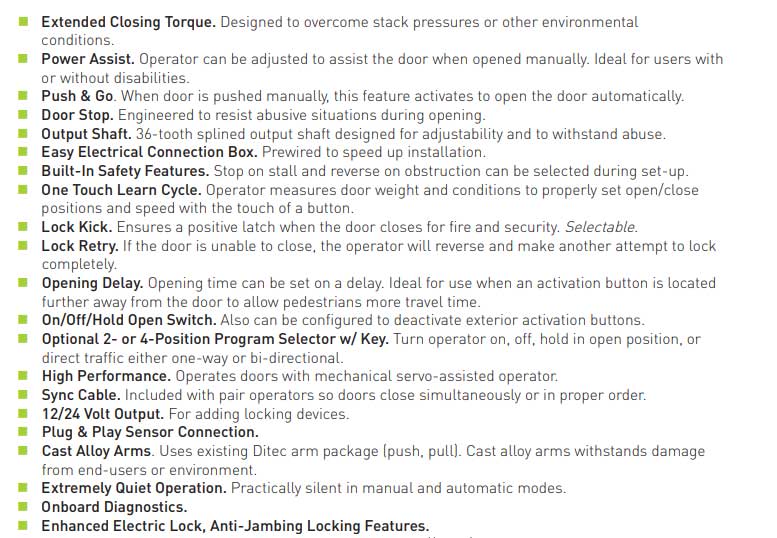

Extended Closing Torque. Designed to overcome stack pressures or other environmental
conditions. -
Power Assist. Operator can be adjusted to assist the door when opened manually. Ideal for users with
or without disabilities. - Push & Go. When door is pushed manually, this feature activates to open the door automatically.
-
Door Stop. Engineered to resist abusive situations during opening.
-
Output Shaft. 36-tooth splined output shaft designed for adjustability and to withstand abuse.
-
Easy Electrical Connection Box. Prewired to speed up installation.
- Built-In Safety Features. Stop on stall and reverse on obstruction can be selected during set-up.
- One Touch Learn Cycle. Operator measures door weight and conditions to properly set open/close positions and speed with the touch of a button.
- Lock Kick (Selectable). Ensures a positive latch when the door closes for fire and security.
- Lock Retry. If the door is unable to close, the operator will reverse and make another attempt to lock completely.
- Opening Delay. Opening time can be set on a delay. Ideal for use when an activation button is located further away from the door to allow pedestrians more travel time.
- On/Off/Hold Open Switch. Also can be configured to deactivate exterior activation buttons.
- Optional 2- or 4-Position Program Selector w/ Key. Turn operator on, off, hold in open position, or direct traffic either one-way or bi-directional.
- High Performance. Operates doors with mechanical servo-assisted operator.
- Sync Cable. Included with pair operators so doors close simultaneously or in
- proper order.
- 12/24 Volt Output. For adding locking devices.
- Plug & Play Sensor Connection.
- Cast Alloy Arms. Uses existing Ditec arm package (push, pull). Cast alloy arms withstands damage from end-users or environment.
- Extremely Quiet Operation. Practically silent in manual and automatic modes.
- Onboard Diagnostics.
- Enhanced Electric Lock, Anti-Jambing Locking Features.
Application | Single Doors |

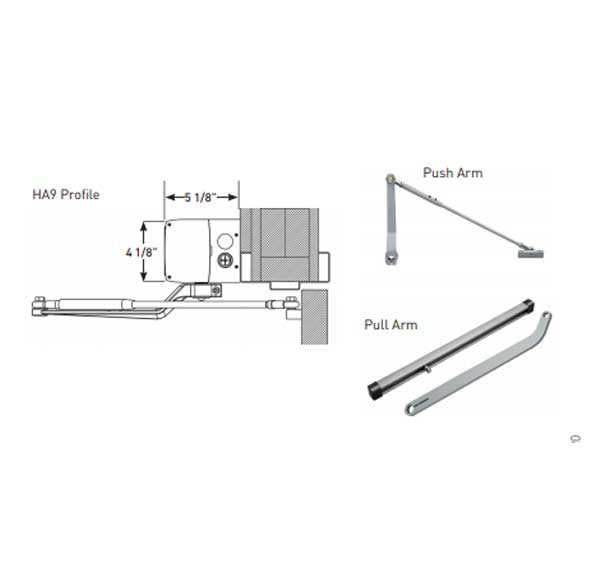

Header Profile Dimensions | 4 1/8" x 5 1/8" |
Motor Type | Electro-Mechanical |
Manual Opening/Closing Force | Adjustable 5 to 30 lbs. |
Push Reveal | Up to 14" |
Pull Reveal | Up to 2 3/8"" |
Handing | Pull Arm -Non Handed |
Operating Voltage | 120 VAC |
Manual Opening/Closing Force | Adjustable 5 to 30 lbs |
Push or Pull Application | Pull |
Door Width Limit | Up to 48” (single); 96” (pair) |
Microprocessor Control | Yes |
On/Off/Hold Open Switches | Standard (key switch optional) |
Auxiliary Power Output | 24 VDC @ 1/2 amp |
Additional inputs/outputs for extra functions (sensors, electric locks, mode switches, etc) |
Yes |
Surface Mounting | Yes |
UL/CUL Listing for UL 325/UL10C | Yes |
ANSI A156.19 Compliant: | Yes |
