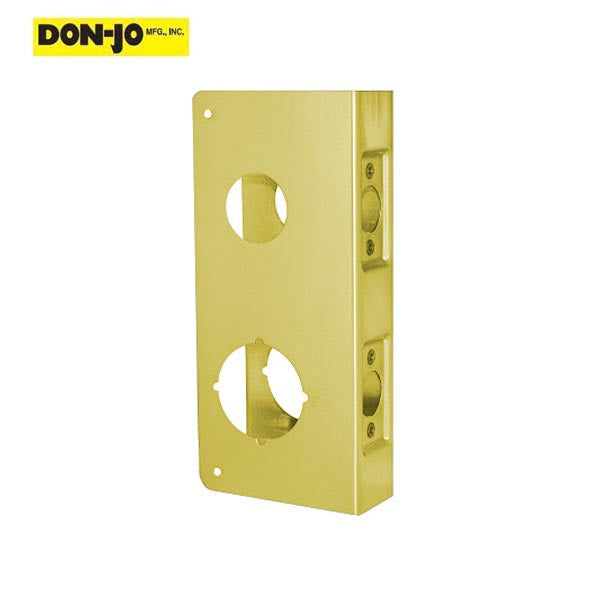

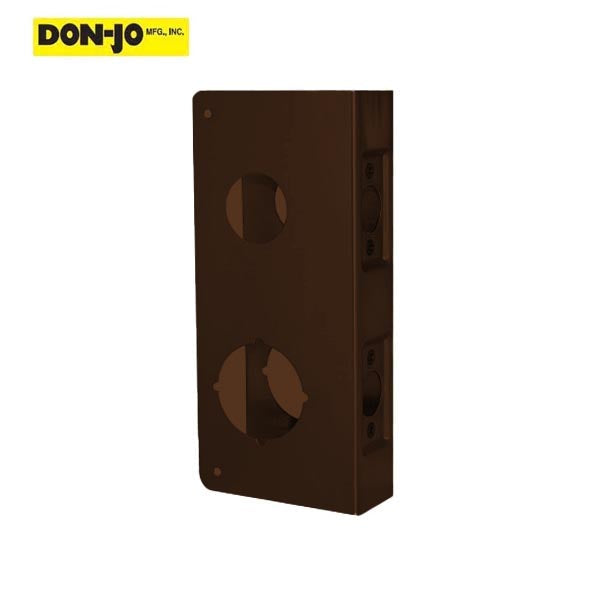

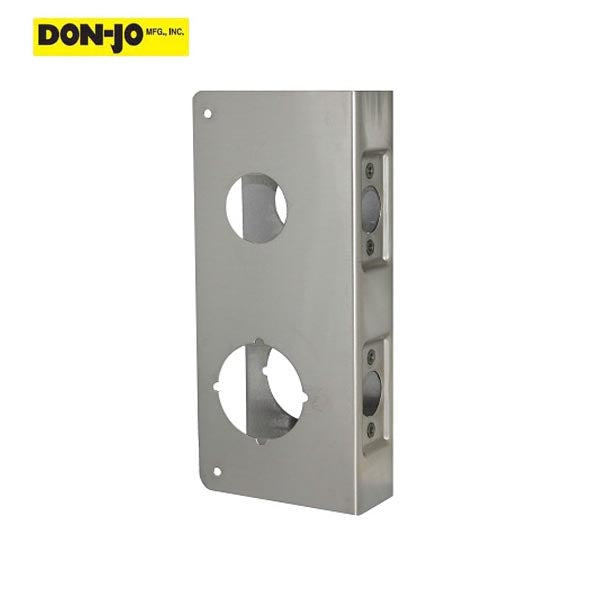

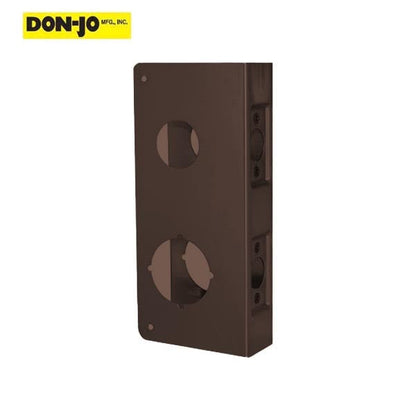

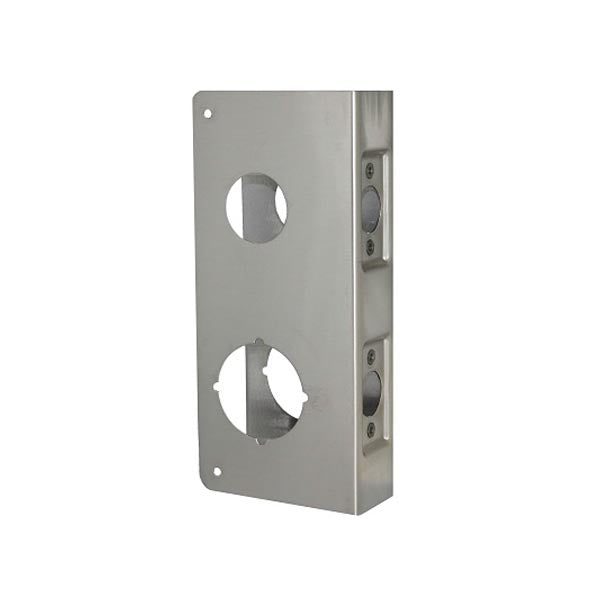

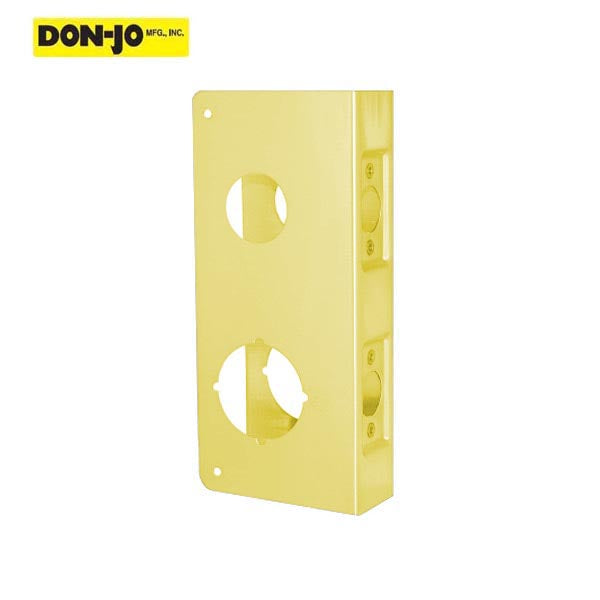

Don-Jo - 484 CW - Wrap Around - 9" Height - 2-3/4" Backset - Optional Finish

Availability: Available to Order

DNJ-484-10B-CW
Product Specifications:
- Finishes: 10B (613), AB (609), BZ (612), PB (605), S (630)
- Shelf Pack: 1
- Box Pack size: 4-1/2" X 9-3/4"
- Display Package Size: 5-1/4" x 11"
- Gauge: 22 (.032)
- Type: For DOUBLE LOCK COMBINATION LOCKSETS with 1-1/2" hole on top and 2-1/8" hole on bottom with 4" centers
- Width: 4-1/4"
- Height: 9"
- CTC: 4"
- Hole: (1) 1-1/2" (1) 2-1/8"
- Backset: 2-3/4"
- Door: 1-3/4"
- Latch Prep: Double Indent
- Additional Information: Display Packaged also available. When ordering indicate by replacing the letters "CW" with "V" after the item number.
Please Note: This product has a lead time

Get it shipped

Today!

Order within

00 Hrs

00 Mins

00 Secs

Quantity

Downloads:

DNJ-484-10B-CW
Product Specifications:

Finishes: 10B (613), AB (609), BZ (612), PB (605), S (630)
Shelf Pack: 1
Box Pack size: 4-1/2" X 9-3/4"
Display Package Size: 5-1/4" x 11"
Gauge: 22 (.032)
Type: For DOUBLE LOCK COMBINATION LOCKSETS with 1-1/2" hole on top and 2-1/8" hole on bottom with 4" centers
Width: 4-1/4"
Height: 9"
CTC: 4"
Hole: (1) 1-1/2" (1) 2-1/8"
Backset: 2-3/4"
Door: 1-3/4"
Latch Prep: Double Indent
Additional Information: Display Packaged also available. When ordering indicate by replacing the letters "CW" with "V" after the item number.
