Dorma

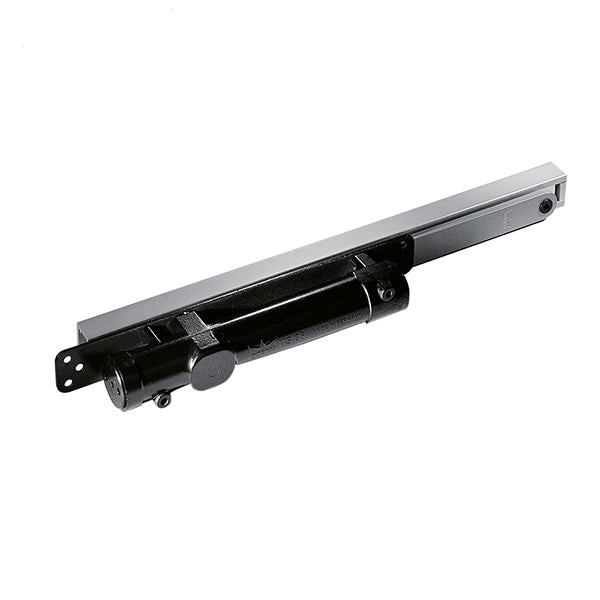

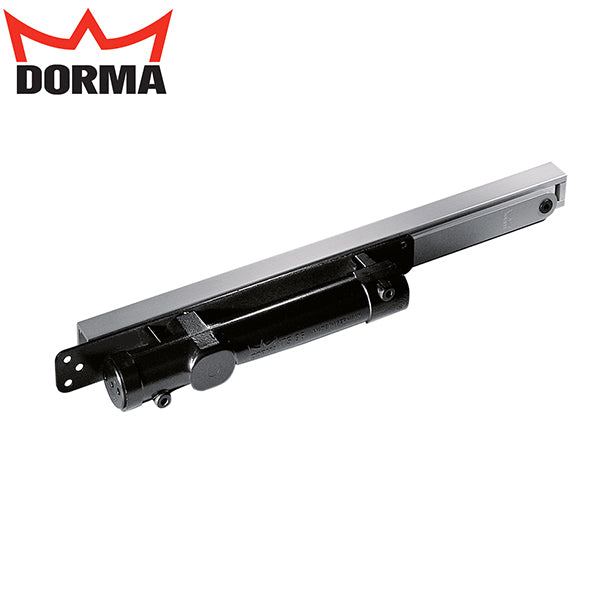

DORMA - ITS96 - Concealed In Door Closer - Optional Hold Open - Size 1-3 - Non-Handed - Aluminum Painted Finish - Grade 1

DORMA - ITS96 - Concealed In Door Closer - Optional Hold Open - Size 1-3 - Non-Handed - Aluminum Painted Finish - Grade 1

Available to order
SKU DOR-ITS9613-689 NSID 66444
$449.25$539.10On Sale You save $89.85 (17%)
Please Note: This product ships within 2 Days
Option

The ITS96 series offers the optimum solution for applications requiring concealed door controls. It is suited for virtually any door and frame combination in a variety of leaf thicknesses and configurations.

Cam and roller technology

The ITS96 door closer’s unique cam and roller technology meets the challenge of providing the operation and features necessary in a compact design.

Door applications

The ITS96 Series is suitable for interior wood, hollow metal, and aluminum doors and frames. All ITS96 models can be inverted to install the closer body in the frame.  Maximum door opening is approximately 130°.

Certification

The DORMA ITS9613 and ITS9625 are listed by UL and CUL under their continuing reinspection programs. Meets the requirements for UL 10C for positive pressure. California State Fire Marshal (CSFM) approved. Meets the requirements of ANSI/BHMA A117.1 and ADA for barrier-free accessibility.


More Information Below:


Call 1-800-878-6604 for Bulk / Dealer Pricing!
View full details

Details

Specifications:

  • Efficient cam and roller design
  • Rapid decrease in opening force makes doors easy to open, yet provides maximum closing force at the latch
  • Non-handed
  • ITS9613 installs in 1-3/4" thick doors (min); ITS9625 installs in 2" thick doors (min)
  • All ITS96 models can be inverted to install the closer body in the frame
  • Suitable for interior wood, hollow metal, and aluminum doors and frames
  • ITS9613—Interior doors up to 36" wide NOT to exceed 125 lb
  • ITS9625—Interior doors up to 48" wide NOT to exceed 175 lb. Exterior doors up to 36" wide NOT to exceed 125 lb
  • Invisible when door is closed
  • Adjustable spring force size for ITS9613 is 1–3 and for ITS9625 is 2–5. Adjustable with unit installed
  • Opening force 5 lb or less for ITS9613 on interior doors where door without closer attached is 1 lb opening force or less
  • Sweep and latch valve adjustment easily accessible after installation
  • Optional hold open adjustable between 80° and 120°
  • Maximum door opening approximately 130°
  • Cushioned stop position adjustable between 80°–130° (separate limiting stop required for doors in abusive conditions)
  • Inverted application available. Consult factory for details
  • Accessory track brackets available for ease of installation or for frames lacking adequate reinforcement.
